Under which node IDs do you find the type descriptions of the SIMATIC data types in the OPC UA server of a SIMATIC S7-1200 / S7-1500?
https://support.industry.siemens.com/cs/document/109780313/
On every OPC UA server you will find for every variable and for every variable type the corresponding type definition under a specific Node Id in the address space. This entry lists the Node Ids of the type definitions of the SIMATIC data types of the OPC UA server of a SIMATIC S7-1200 / S7-1500.
The semantic node system of OPC UA requires that all nodes in the address space of a server are derived from a specified type. This means that variables and variable types in special must have a specific type definition (DataType) as an attribute. These type definitions contain a Node Id that refers to a node in which the data type of the respective variable is defined. Each data type is also a node.

The OPC UA server of a SIMATIC S7-1200 / S7-1500 also provides these type definitions.SIMATIC S7-1200 / S7-1500. Some SIMATIC data types are mapped directly with the basic data types of OPC UA (ns=0), while other SIMATIC data types have their own type definition (ns=3) in the address space.

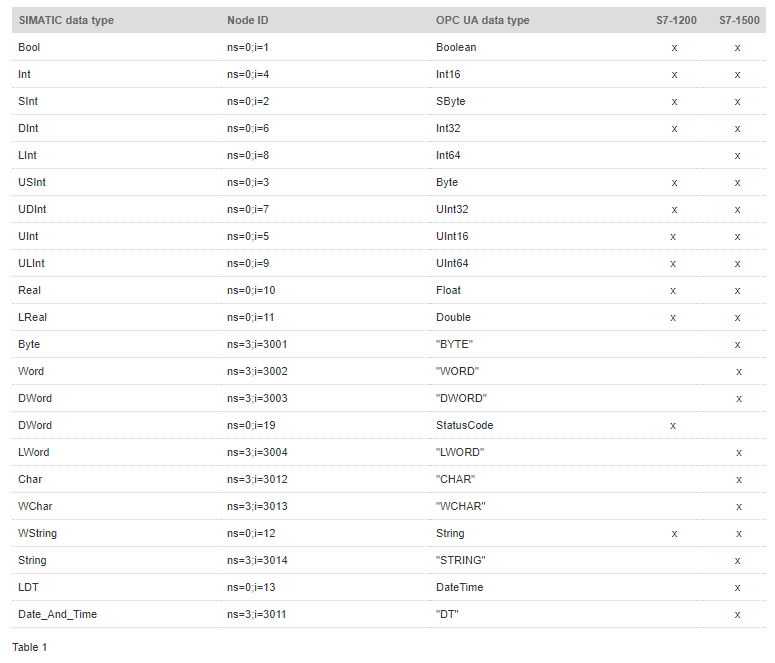

The following Table 1 lists the most important SIMATIC data types and the corresponding Node IDs of the type definitions as well as the assignment between SIMATIC and OPC UA data types:

SIMATIC data types in the OPC UA server S7-1200 / S7-1500 SIMATIC data types in the OPC UA server S7-1200 / S7-1500

SIMATIC data types in the OPC UA server S7-1200 / S7-1500 SIMATIC data types in the OPC UA server S7-1200 / S7-1500

Note
This is not a complete list of all the available data types.
