SIMATIC CN 4100 CN 4100 Communication System
https://support.industry.siemens.com/cs/document/109814144/
Connectivity to a SIMATIC PCS 7 AS-410 is established via the system bus via interfaces X1 and X2 of the CN 4100. The data exchange between
CN 4100 and S7-410 takes place via S7 communication with the PUT/GET service.
The two other interfaces are used to connect OPC UA servers and/or MODBUS/TCP devices.
The CN 4100 can also act as an OPC UA Server to provide data to the PCS 7 OS Servers.
With the help of extension modules for RS232 and RS485 serial Modbus communication can be established.

For the communication with PCS neo controllers you can use TCON as Open User Communication.

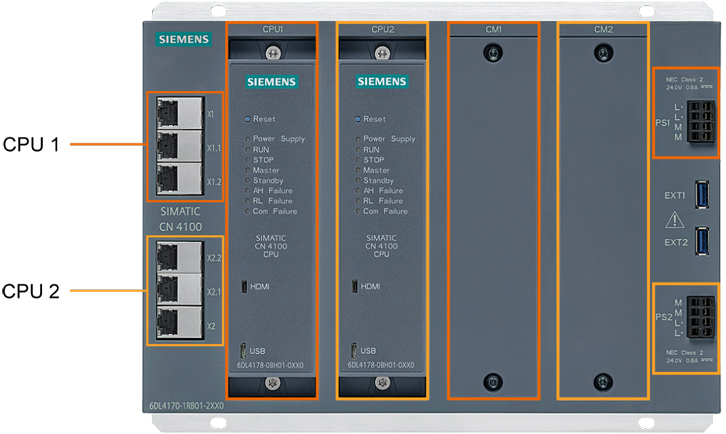

The assignment of the interfaces is as follows:
SIMATIC CN 4100 CN 4100 Communication System SIMATIC CN 4100 CN 4100 Communication System

SIMATIC CN 4100 CN 4100 Communication System SIMATIC CN 4100 CN 4100 Communication System

A special SIMATIC CN 4100 station uses the X1.x interfaces. In the redundant configuration, the X2.x interfaces are also used for the second CPU module.

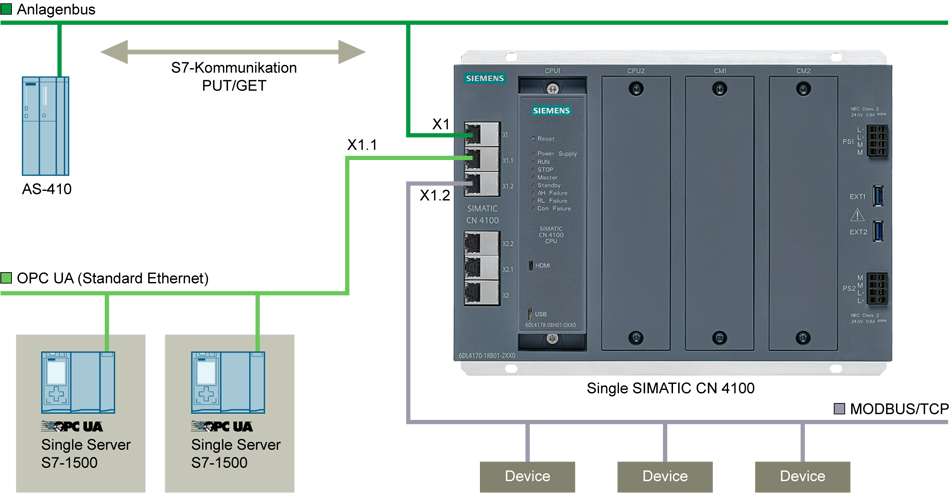

Singular structure with OPC UA and MODBUS/TCP:
SIMATIC CN 4100 CN 4100 Communication System SIMATIC CN 4100 CN 4100 Communication System

Redundant structure with OPC UA and MODBUS/TCP:
SIMATIC CN 4100 CN 4100 Communication System SIMATIC CN 4100 CN 4100 Communication System

System connection SIMATIC PCS 7:
User-friendly commissioning with CNET (CN Engineering Tool)
Integration in SIMATIC PCS 7 with CN 4100 block library

https://support.industry.siemens.com/cs/document/109814696/simatic-cn-4100-cnet-engineering-tool
https://support.industry.siemens.com/cs/document/109814383/simatic-cn-4100-cn-4100-communication-system
https://support.industry.siemens.com/cs/document/109801222/integration-of-third-party-systems-package-units-safety-integrated-systems- (sis)-with-simatic-cn-4100-in-simatic-pcs-7

Downloads
CN Engineering Tool (CNET)
https://support.industry.siemens.com/cs/document/109814147/simatic-cn-engineering-tool-v3.0- (cnet)-for-commissioning-the-simatic-cn-4100-v3.0
PCS 7 Library for CN 4100
https://support.industry.siemens.com/cs/document/109801221/simatic-pcs-7-library-for-simatic-cn-4100
Open Source Software (OSS)
https://support.industry.siemens.com/cs/document/109801220/simatic-cn-4100-open-source-software- (oss)

SIMATIC CNET is a simple tool for quick and easy commissioning of SIMATIC CN 4100 stations in the PCS 7 environment.
https://support.industry.siemens.com/cs/document/109814147/

https://support.industry.siemens.com/cs/attachments/109814147/CNET-03.00.00.00_00.00.25.27-windows-x64.zip

[URL=https://www.file-upload.net/download-15321397/CN4100_OPC_UA.zip.html]CN4100_OPC_UA.zip[/URL]
[URL=https://www.file-upload.net/download-15321395/CNET_OPC_UA.zip.html]CNET_OPC_UA.zip[/URL]
[URL=https://www.file-upload.net/download-15321396/CNET_MODBUS_TCP.zip.html]CNET_MODBUS_TCP.zip[/URL]
[URL=https://www.file-upload.net/download-15321400/PCS_7_MODBUS_TCP.zip.html]PCS_7_MODBUS_TCP.zip[/URL]
[URL=https://www.file-upload.net/download-15321398/109801215_Offset_Calculation_V0_2.xlsx.html]109801215_Offset_Calculation_V0_2.xlsx[/URL]
[URL=https://www.file-upload.net/download-15321399/109801222_CN4100_en.pdf.html]109801222_CN4100_en.pdf[/URL]
[URL=https://www.file-upload.net/download-15321401/cn4100_system_en-US_en-US.pdf.html]cn4100_system_en-US_en-US.pdf[/URL]
[URL=https://www.file-upload.net/download-15321402/CNET-03.00.00.00_00.00.25.27-windows-x64.zip.html]CNET-03.00.00.00_00.00.25.27-windows-x64.zip[/URL]
[URL=https://www.file-upload.net/download-15321403/cn4100-i386-1.12.0-88d02b2.zip.html]cn4100-i386-1.12.0-88d02b2.zip[/URL]
[URL=https://www.file-upload.net/download-15321406/CN4100_driver_blocks_PCS_7_V1_1.pdf.html]CN4100_driver_blocks_PCS_7_V1_1.pdf[/URL]
[URL=https://www.file-upload.net/download-15321405/Cn4100_Library_V1.0.1.zip.html]Cn4100_Library_V1.0.1.zip[/URL]
