siemens to controllogix


Post new topic   Reply to topic    plc.myforum.ro Forum Index -> SIMATIC Automation Systems -Reg.U
View previous topic :: View next topic
Author Message
sandy201684
Junior
Junior


Joined: 16 Nov 2016
Posts: 14
PostPosted: 02/03/2017 20:12    Post subject: siemens to controllogix Reply with quote
Dear Support,

I have to interface siemens s7-1200 PLC to Rockwell Controllogix PLC , Please suggest the best option

Regards
sandeep
Back to top
View user's profile Send private message
gaty
Member
Member
gaty

Joined: 01 Mar 2017
Posts: 188
PostPosted: 06/05/2020 18:38    Post subject: SIMATIC S7-1200/S7-1500 to Rockwell ControlLogix/GuardLogix Reply with quote
Open user communication to 3rd party control system (CLX/GLX controller)
https://support.industry.siemens.com/cs/document/108740380/open-user-communication-to-3rd-party-control-system- (clx-glx-controller)
This library allows to communicate via a standard protocol (TCP/IP) between SIMATIC S7-1200/S7-1500 and Rockwell ControlLogix/GuardLogix without using a Gateway.
To communicate between different controllers of different manufacturers, several options are available. One is the possibility of using a gateway. Another one is the use of own communication blocks for the controllers.
The libraries in this article provide communication blocks for the communication between S7-1500/S7-1200 controllers and ControlLogix/GuardLogix controllers. They provide a function block for the S7-1500/S7-1200 and an AOI for the ControlLogix/GuardLogix.

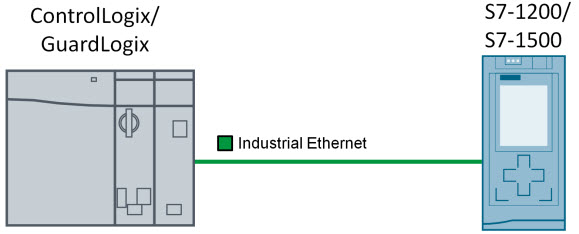

siemens to controllogix SIMATIC S7-1200/S7-1500 to Rockwell ControlLogix/GuardLogix

Documentation and Projects
https://support.industry.siemens.com/cs/attachments/108740380/108740380_tcpcommra_lib_en.pdf
https://support.industry.siemens.com/cs/attachments/108740380/T_COMM_V16.zip
https://support.industry.siemens.com/cs/attachments/108740380/T_COMM_V15.1.zip
https://support.industry.siemens.com/cs/attachments/108740380/T_COMM_V15.zip
https://support.industry.siemens.com/cs/attachments/108740380/S7_T_COMM_FB_v01_V14SP1.zip
https://support.industry.siemens.com/cs/attachments/108740380/s7_t_comm_fb_v01.zip
https://support.industry.siemens.com/cs/attachments/108740380/ra_t_comm_aoi_v10.zip
s1
https://ulozto.net/tamhle/NNt4CiZM22vL
s2

https://bayfiles.com/pcYc45wbo3/ra_t_comm_aoi_v10_zip
https://bayfiles.com/z7Yb44wbo0/T_COMM_V15_zip
https://bayfiles.com/xbY843w9o6/S7_T_COMM_FB_v01_V14SP1_zip
https://bayfiles.com/54Ye41w2o0/T_COMM_V15.1_zip
https://bayfiles.com/D9Y04bwfo8/s7_t_comm_fb_v01_zip
https://bayfiles.com/FfYf45wfoa/T_COMM_V16_zip
https://bayfiles.com/J8Y948w2oe/108740380_tcpcommra_lib_en_pdf
Back to top
View user's profile Send private message
roidhumi
Junior
Junior


Joined: 03 Sep 2018
Posts: 2
PostPosted: 09/01/2021 09:36    Post subject: Reply with quote
Thanks for information. Useful.
