Service Bridge – Setup and Configuration
https://support.industry.siemens.com/cs/document/109747975/service-bridge-%E2%80%93-setup-and-configuration

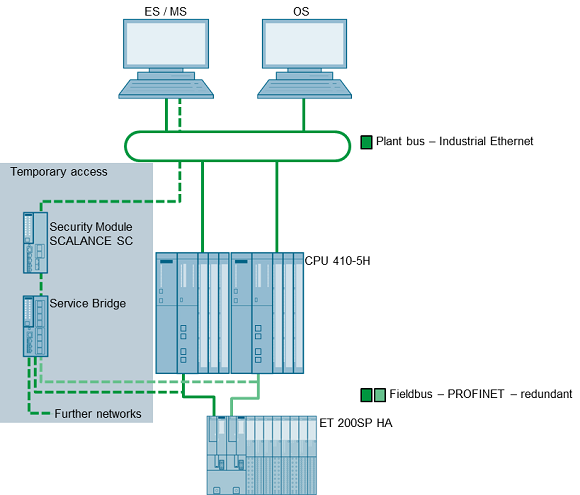

The Service Bridge is the solution to allow temporary access from the ES to the PROFINET field bus. The Service Bridge is a specially configured switch that allows dedicated temporary access from the plant bus to the field bus while at the same time ensuring logical separation between fieldbuses.
For security reasons, it is additionally recommended to use a firewall, e. g. in the form of a SCALANCE SC, between the plant bus and the Service Bridge.
Service Bridge – Setup and Configuration Service Bridge – Setup and Configuration

Service Bridge – Setup and Configuration Service Bridge – Setup and Configuration

Procedure for configuring the Service Bridge
The Service Bridge is based on SCALANCE XC-200 series switches from FW V4.0.
The configuration is made as follows:
Download the prepared configuration file and instructions
Load the configuration file in the switch
Adjust the configuration individually for each plant according to instructions

Documentation
https://support.industry.siemens.com/cs/attachments/109747975/109747975_PCS7_ServiceBridge_DOC_en.pdf
https://support.industry.siemens.com/cs/attachments/109747975/109747975_PCS7_ServiceBridgeConfigurationFiles_V1_1.zip
