rott · Senior Joined: 23 Aug 2011 Posts: 2266

SCALANCE Demonstration system

5 * 44.444.444 +33.459.483
links:
https://rapidshare.com/files/3483100654/SCALANCE_Demonstation_system_2006_11.part01.rar
https://rapidshare.com/files/2812382940/SCALANCE_Demonstation_system_2006_11.part02.rar
https://rapidshare.com/files/581978451/SCALANCE_Demonstation_system_2006_11.part03.rar
https://rapidshare.com/files/45553136/SCALANCE_Demonstation_system_2006_11.part04.rar
https://rapidshare.com/files/2640180706/SCALANCE_Demonstation_system_2006_11.part05.rar
https://rapidshare.com/files/888794907/SCALANCE_Demonstation_system_2006_11.part06.rar

AnteSavilt · Member 2 Joined: 13 Feb 2018 Posts: 264 Location: Croatia

firmware SCALANCE W700 IEEE 802.11n V6.4.1
https://support.industry.siemens.com/cs/document/109778726/

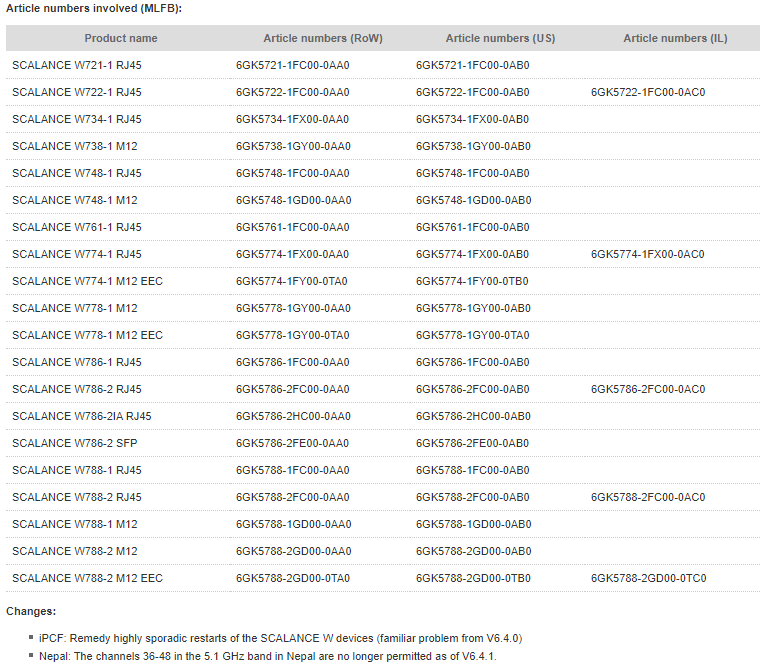

This firmware update V6.4.1 can be used for SCALANCE W700 IEEE 802.11n products and replaces the older firmware version V6.4.0

SCALANCE Demonstration system SCALANCE Demonstration system

Notes:

This version contains security-related improvements which increase ruggedness. We recommend performing an update.
iPRP: Undesired side effects can occur when using iPRP in combination with A-MPDU. We therefore recommend avoiding the simultaneous use of the two functions.
Incompatibility C-PLUG created with firmware V1.0: If a device including the C-PLUG is equipped with the firmware V1.0 and a defect occurs, the device can only be replaced by a device with firmware V6.0 or older. After the replacement the device can be updated to the current firmware version.
Incompatibility with iPRP: iPRP systems with version V6.0.0 are not compatible with devices with version V6.1.0. All devices must be brought to the same firmware version (V6.0.0 or higher V6.1.0).
Due to increasing security requirements, only the AES encryption method is supported with iPCF and iPCF-MC. As of V05.00.00, the WEP encryption method can no longer be configured. Note: Existing installations that use the non-secure WEP encryption method should be upgraded to the more secure AES encryption method. In any event, this upgrade must be carried out before a firmware update to V05.00.00.
Note: If an EDS file from V5.2.1 is used and the device with firmware V6.1.1 is running, the devices are no longer accessible online.
The IEEE 802.11b transmission method is not supported in conjunction with iPCF, i.e. the SCALANCE W700-xRR devices may not be configured with the IEEE 802.11b operating mode in mixed mode.
After the update, channels may no longer be available with the current configuration due to a restriction of existing approvals (F-LED is illuminated). In this case, you need to check the settings for antennas (antenna gain).
iPCF: In order to use iPCF optimally, it is recommended to operate iPCF only with the IEEE 802.11a transmission method.
Furthermore, for devices with two WLAN interfaces, it is recommended to configure iPCF only on the first WLAN interface (WLAN 1).
Configuration via TIA V16: Configuration of the 'Service Information' event is currently not possible.
Bahrain: For the country approval in Bahrain, the maximum permitted transmission power in the 5725 - 5875 MHz band (UNII-3) was limited from 2000 mW to 200 mW. The Tx power test has been adapted accordingly. Systems that have already been put into operation are protected.
The current approval list at the time of firmware release can be downloaded from the device's Web based Management. As changes may occur in the national approvals while the documentation for the firmware is being completed, there may be differences between the national approvals listed in V6.4.0 and the Compact Operating Instructions. At the time of the release, the settings according to the country list of firmware V6.4.0 are valid. There is no approval available yet for some countries. They are marked with an asterisk in the Web Based Management and Command Line Interface.

https://anonfile.com/zcacP9k1oe/SCALANCE_W700_IEEE802.11n_versionhistory_pdf
https://anonfile.com/3cafP6k3o8/OSS_SCALANCE-W700_86_pdf
https://anonfile.com/B9a1P5k5o2/SCALANCE_W700_V06_04_01_zip

https://ulozto.net/tamhle/aV6XxHUQD25N
