Safety Applications with S7-1200 FC CPU
https://support.industry.siemens.com/cs/document/109478932/
The document contains a total of 24 scenarios for safety door and emergency stop applications. An F-block for the direct use of an S7-1200 FC CPU is available to you for each scenario. In addition to the easy use of the S7-1200 FC CPU, the document also explains what has to be considered to achieve a specific PL/SIL.

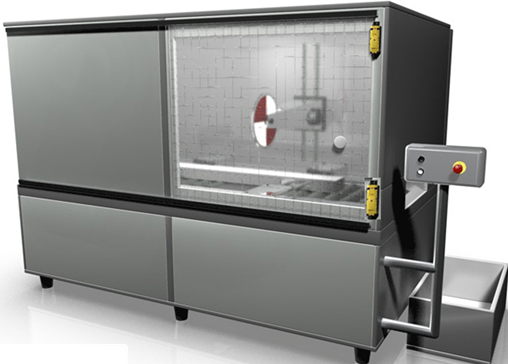

Safety doors and emergency stop buttons are typical examples of safety components and installed in a large number of applications, for example when using a cutting machine.

Safety Applications with S7-1200 FC CPU Safety Applications with S7-1200 FC CPU

Safety Applications with S7-1200 FC CPU Safety Applications with S7-1200 FC CPU

The document contains a total of 24 scenarios for safety door and emergency stop applications. An F-block for the direct use of an S7-1200 FC CPU is available to you for each scenario. In addition to the easy use of the S7-1200 FC CPU, the document also explains what has to be considered to achieve a specific PL/SIL.
Safety doors and emergency stop buttons are typical examples of safety components and installed in a large number of applications, for example when using a cutting machine.

Safety Applications with S7-1200 FC CPU Safety Applications with S7-1200 FC CPU

S7-1200 FC CPU
In contrast to purely hardware-based solutions, the S7-1200 FC CPU – aside from easy operation – offers convenient diagnostic capabilities that significantly increase the availability of your application. And last but not least: Engineering of the S7-1200 FC CPU is performed based on the TIA Portal automation platform. This allows you to access all the advantages of Totally Integrated Automation (TIA): TIA Portal is designed for efficiency, intuitive operation and future viability. It allows you to solve all the engineering tasks of automation and drive technology.

Block Library and Documentation
The ZIP file "STEP 7 V16 Block Library" contains the block library with 24 F-blocks for 24 user scenarios for emergency stop and safety door.
For each of the 24 user scenarios, the below documentation contains:
A list of components with the required hardware and software
A connection diagram
A description of the respective core functionality
A description of the provided F-block
Information on the configuration and parameterization
Operating instructions if you want to set up an application example
Furthermore, the document provides additional information on specific sequences in the F-program and valuable facts on safety door and emergency stop applications – for example, what has to be considered to achieve a specific PL/SIL.
