Safe Shutdown of ET 200SP Motor Starters
https://support.industry.siemens.com/cs/document/109748128/safe-shutdown-of-et-200sp-motor-starters
This example describes three methods for shutting down one or more ET 200SP F-motor starters in a safety-related manner. It uses a fail-safe power module, safety relays or fail-safe input/output modules. All examples meet the requirements of IEC 62061 (SIL3) and ISO 13849-1 (PLe).
A machine is operated with different actuators. To protect the operating staff, these actuators are monitored in a fail-safe controller and shut down through technical protective measures (e.g., emergency stop command device) in the event of danger.

Depending on the application, the ET 200SP motor starter can be safely shut down in different ways.

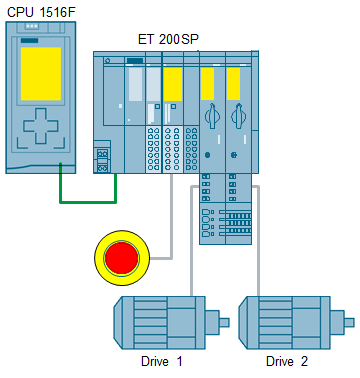

Solution with the F-PM-E fail-safe power module
This solution shows how to safely shut down one or more actuators with the ET 200SP F-motor starter (3RK1308-0**00-0CP0) in combination with the ET 200SP F-PM-E fail-safe power module.
Safe Shutdown of ET 200SP Motor Starters Safe Shutdown of ET 200SP Motor Starters

Safe Shutdown of ET 200SP Motor Starters Safe Shutdown of ET 200SP Motor Starters

Fig. 1

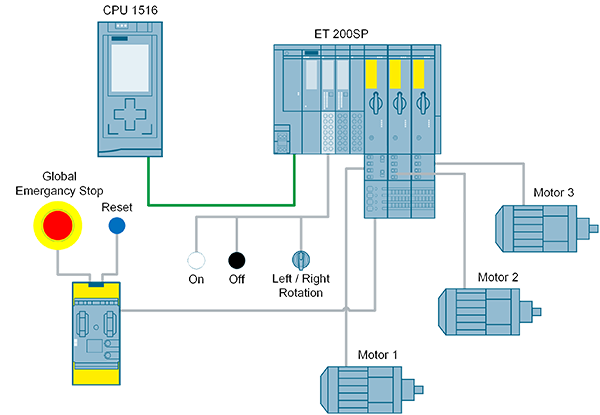

Solution with a 3SK1 / 3SK2 safety relay
This solution shows how to safely shut down one or more actuators with the ET 200SP F-motor starter (3RK1308-0**00-0CP0) in combination with the 3SK1 and 3SK2 safety relays.
Safe Shutdown of ET 200SP Motor Starters Safe Shutdown of ET 200SP Motor Starters

Fig. 2

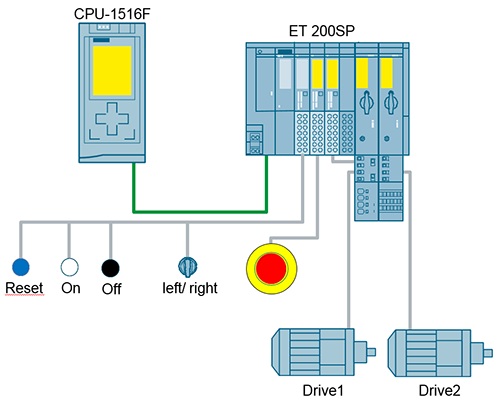

Solution with the F-DI / F-DQ fail-safe inputs and outputs
This solution shows how to safely shut down one or more actuators with the ET 200SP F-motor starter (3RK1308-0**00-0CP0) in combination with the ET 200SP F-DI / F-DQ fail-safe inputs and outputs.

Safe Shutdown of ET 200SP Motor Starters Safe Shutdown of ET 200SP Motor Starters

Documentation and Sample Projects
F-PM-E power module
https://support.industry.siemens.com/cs/attachments/109748128/109748128_ET200SP_F-PM-E_DOC_v10_en.pdf
https://support.industry.siemens.com/cs/attachments/109748128/109748128_ET_200SP_with_F-PM-E_PROG.zip
3SK1 or 3SK2 safety relay
https://support.industry.siemens.com/cs/attachments/109748128/109748128_ET200SP-3SK_DOC_v1_1_en.pdf
https://support.industry.siemens.com/cs/attachments/109748128/109748128_ET_200SP_with_3SK1_PROG_v1_1.zip
https://support.industry.siemens.com/cs/attachments/109748128/109748128_ET_200SP_with_3SK2_PROG_v1_1.zip
https://support.industry.siemens.com/cs/attachments/109748128/109748128_3SK2_Safety_ES_PROJ_v1_1.zip
F-DI / F-DQ fail-safe inputs and outputs
https://support.industry.siemens.com/cs/attachments/109748128/109748128_ET200SP_F-DQ_DOC_v1_1_en.pdf
https://support.industry.siemens.com/cs/attachments/109748128/109748128_ET_200SP_with_F-DQ_PROG_v1_1.zip
