S7 Energy Efficiency Monitor for machines
https://support.industry.siemens.com/cs/document/109753230/
Standardized efficiency evaluation of machines, including efficiency log. VDMA 34179. Use the ready-made HMI visualization to efficiently show the energy data of your machine.
As a machine manufacturer, you face the challenge of having your machine with respect to its efficiency.
You are required to specify the media consumption (water, gas, electricity) for each produced unit of the production machine. Since a production machine works in different modes (eg, standby, operational, working), it is more complicated to detect and record efficiency compared to a household appliance, for example.
Using the S7 energy efficiency monitor, you record the efficiency of your machine and visualize the data in the HMI.
Starting with TIA Portal V15, the two S7 instructions "Ens_EEm_Calc" and "Ens_EEm_Report" are available for this purpose.
Based on the energy data of the machine and the counter counter, these modules calculate the media requirements of your machine for each machine mode in an energy performance index (EnPI).
The new function 'S7 EE monitor for machines' is specifically aimed at mechanical engineers and makes it possible to equip machines with functions for energy transparency and thus round the functionality of the energy suite on the machine as well.
The functions can be integrated into any SIMATIC S7-1200 as well as S7-1500 controllers from firmware version V4.2 / V2.1.
The plant operator has an eye on the energy requirements both during the procurement stage and during the plant life cycle.
The S7 energy efficiency monitor provides you with the following functions
- VDMA 34179
- Visualize the files on HMI device

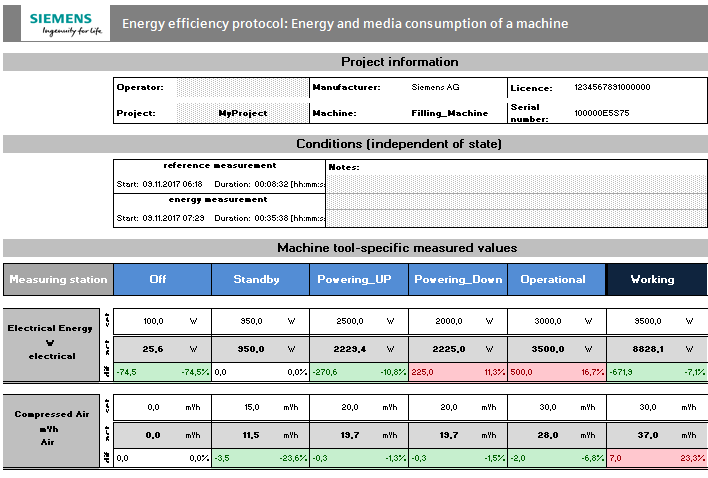

- Confecționate an energy efficiency log in Excel (in accordance with VDMA 34179) according to ISO 50001)
- Connect to cross-machine systems, search as WinCC or Energy Manager PRO
HMI visualization

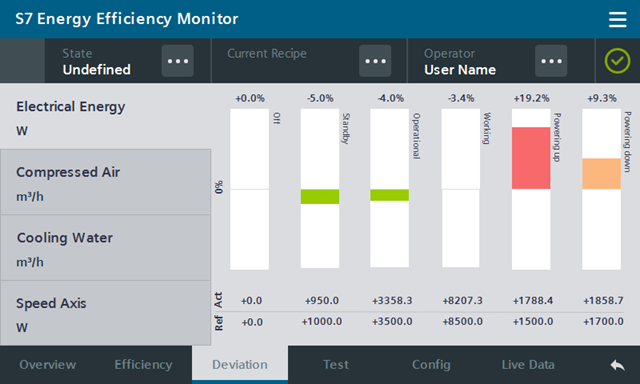

This application example gives you HMI visualization for S7 energy efficiency monitor. The visualization is projected on a SIMATIC TP900 Comfort Panel.
Visualization on the HMI operator panel
Downloads
The application example contains the visualization on a Comfort Panel, the template for the energy efficiency log and the documentation.
https://support.industry.siemens.com/cs/attachments/109753230/109753230_S7_EE_Monitor_Doc_en.pdf
https://support.industry.siemens.com/cs/attachments/109753230/109753230_S7EEmVisuV15.zip
https://support.industry.siemens.com/cs/attachments/109753230/109753230_LS7EEmVisuV15.zip
https://support.industry.siemens.com/cs/attachments/109753230/109753230_Ens_EEm_EnergyReport.xlsm |
|
