S7-EE Monitor Monitoring media consumptions and availability of machines
https://support.industry.siemens.com/cs/document/109753230/

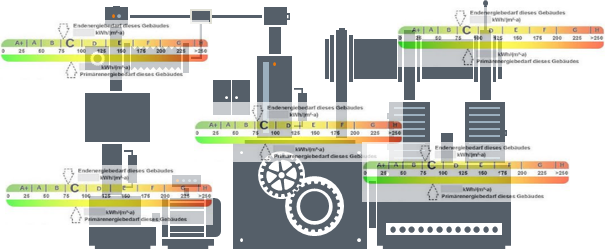

The S7 energy efficiency monitor for machines allows you to easily evaluate the energy efficiency of your machine according to the measuring instruction VDMA 34179. Use the ready-made HMI visualization to efficiently show the energy data of your machine.
S7-EE Monitor Monitoring media consumptions S7-EE Monitor Monitoring media consumptions

S7-EE Monitor Monitoring media consumptions S7-EE Monitor Monitoring media consumptions

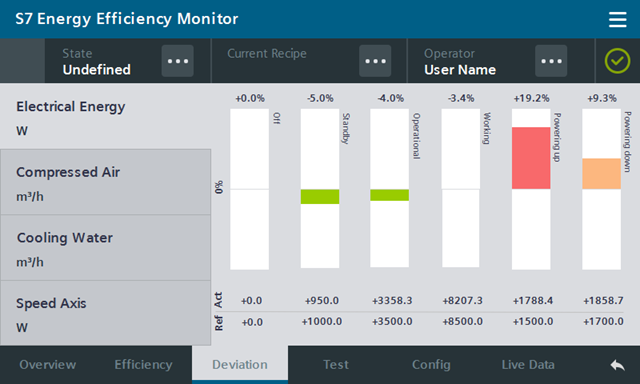

Using the S7 energy efficiency monitor, you record the efficiency of your machine uniformly and visualize the data in the HMI.
Starting with TIA Portal V15, the two S7 instructions "Ens_EEm_Calc" and "Ens_EEm_Report" are available for this purpose.
Based on the energy data of the machine and the piece counter, these modules calculate the media requirements of your machine for each machine mode in an energy performance index (EnPI).

The new function 'S7 EE monitor for machines' is specifically aimed at mechanical engineers and makes it possible to equip machines with functions for energy transparency and thus rounds off the functionality of the Energy Suite on the machine as well.
The functions can be integrated in every SIMATIC S7-1200 as well as S7-1500 controller from firmware version V4.2 / V2.1.
The plant operator has an eye on the energy requirements both during the procurement stage and during the plant life cycle.
The S7 energy efficiency monitor offers you the following functions
