iso0909 · Junior Joined: 07 Apr 2020 Posts: 8

hi guys, i have 1212 dcdcdc 1H31 model plc. I can't check the upload device as new stations software and hardware settings from the online tab, what should I do?
[url=http://www.99poze.ro/p/73e0bfb6dad6d780502db50caeb6719e.jpg] s7 1200 UPLOAD s7 1200 UPLOAD

[/url]+

bekefnela · Junior Joined: 04 Mar 2023 Posts: 1

mamiko · Member 2 Joined: 25 Dec 2017 Posts: 420

What options are available in STEP 7 (TIA Portal) for uploading when the project version in the CPU no longer matches the version on your PG/PC?
https://support.industry.siemens.com/cs/document/97554052/

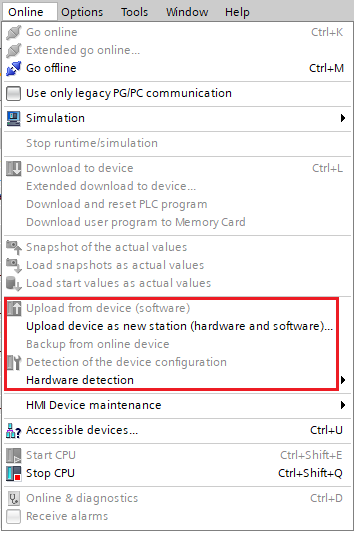

It might happen that a STEP 7 (TIA Portal) project has been created in a CPU with a different (newer or older) version than installed on your PG/PC and has been loaded into the device. If you wish to continue processing or save the STEP 7 (TIA Portal) project, you need the functions that are available in the "Online" menu. The scope of functions varies slightly between the different versions of STEP 7 (TIA Portal).
s7 1200 UPLOAD s7 1200 UPLOAD

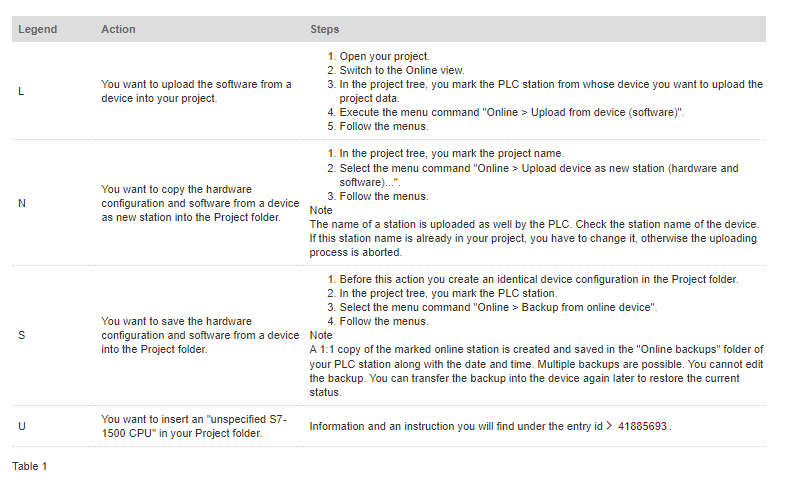

Table 1 below gives you an overview of which online functions are available under "Upload from device (software)".

s7 1200 UPLOAD s7 1200 UPLOAD

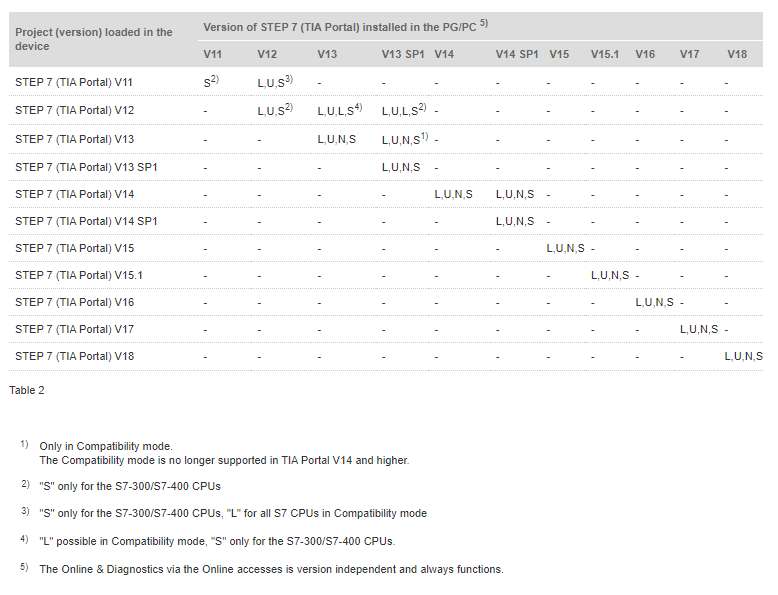

If you want to load a STEP 7 (TIA Portal) program from a CPU into your programming device whose version is different to the version with which it was created and loaded into the CPU, the following table presents the combination options. Here you have an overview of which online functions are possible for the upload in this context. The designations in Table 2 correspond to the legend in Table 1.

Note
If you upgrade a project from version V14 or V14 SP1 to version V15/V15.1, you can then connect devices online that were loaded with version V14 or V14 SP1. The blocks of these devices remain functional and do not have to be recompiled.

s7 1200 UPLOAD s7 1200 UPLOAD

Note on the upload
During the upload, STEP 7 (TIA Portal) checks whether or not the project data has been created on the device with a different version to the open version of the TIA Portal. Refer also to the information in the STEP 7 (TIA Portal) Online Help:

If the project data has been created with a different product version, the "Preview for the download from device" dialog gives information about whether all the conditions have been fulfilled for the loading. If necessary, select a command in the selection menu in the "Action" column. As soon as the view has been updated and loading is possible, the "Upload from device" button is enabled.
If data blocks have been created in a different product version of the TIA Portal, you can only edit the global data blocks. You have to edit the instance data blocks via the function block.
The hardware configuration in the device must be created in STEP 7 (TIA Portal) V12 or higher, otherwise you cannot load the hardware configuration.

Further Information
More information on the topic of "Loading the project data from the CPU into the programming device" is available in the following table:

https://support.industry.siemens.com/cs/document/109476392/how-do-you-upgrade-projects-in-tia-portal-v14-and-higher-that-you-created-with-previous-versions-of-tia-portal
https://support.industry.siemens.com/cs/document/41885693/in-step-7- (tia-portal)-how-do-you-load-the-program-blocks-with-the-plc-tags-and-plc-data-types-from-the-cpu-into-the-programming-device
https://support.industry.siemens.com/cs/document/82169157/in-step-7- (tia-portal)-v13-sp1-how-do-you-load-project-data-from-a-device-that-has-been-configured-with-step-7-(tia-portal)-v12-sp1-or-v13
https://support.industry.siemens.com/cs/document/66027369/how-do-you-do-a-program-upload-in-step-7- (tia-portal)-v12-when-the-device-has-been-configured-with-step-7-v11
SIMATIC STEP 7 Basic/Professional V17 and SIMATIC WinCC V17 Manual
https://support.industry.siemens.com/cs/attachments/109798671/STEP_7_WinCC_V17_enUS_en-US.pdf
