tsapas02 · Junior Joined: 02 Aug 2016 Posts: 2

Hello all. I need your guidance.

I have a S7-1200 CPU with an Inverter from Yaskawa and a Posital Fraba absolute encoder with Profinet.
The concept is to guide the inverter with analog from the PLC and to have the feedback from the motor via Profinet through the encoder.

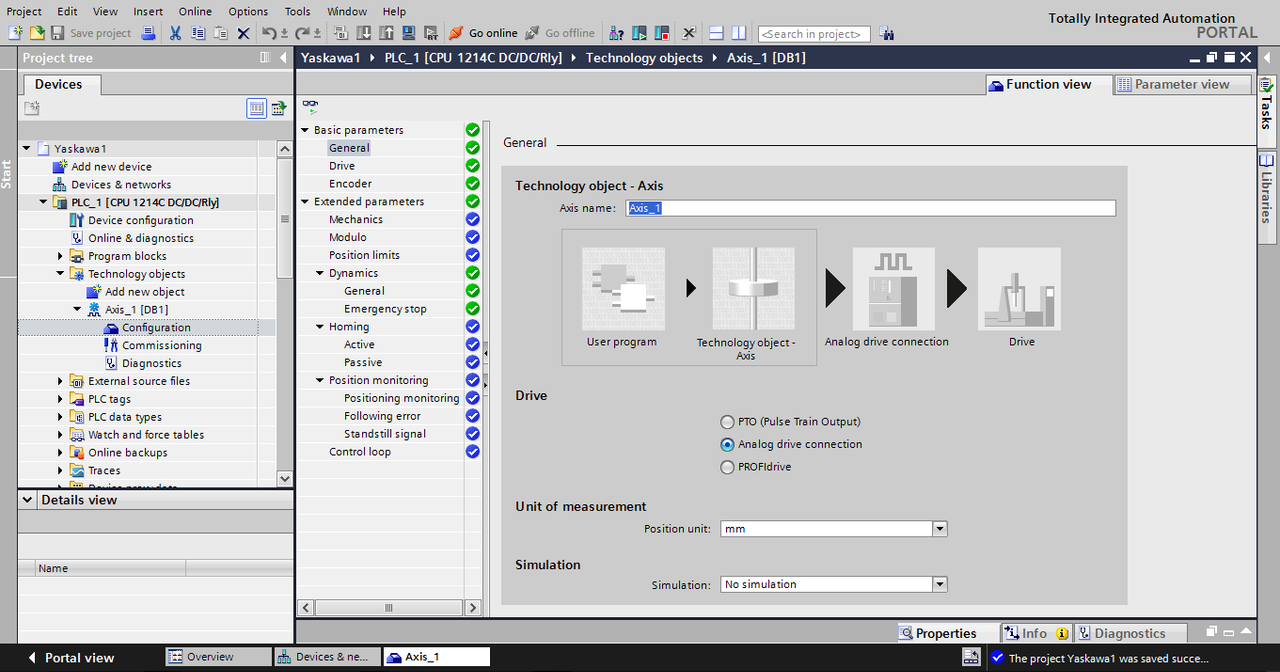

Can I set this whole plan as a techology object in TIA V14?
When I try to configure in the technology objects the encoder that is in the profinet does not appears in the option list.
Had anyone ever done thing like this before?

Thanks in advance for your help!

patonn5 · Junior Joined: 23 Oct 2018 Posts: 4

First of all you need GSDML file as from manual you can find in PC Worx V6.00.25 SP2.56 (Phoenix Contact)
If you bought from Posital they must give the GSDML with documentation.
What is exactly the code of the encoder?
https://www.posital.com/media/en/fraba/productfinder/posital/manual-ixarc-xcx-ei.pdf
http://www.einformatyka.pl/wobitcompl/download/pdf/przetworniki/enkodery_posital/optyczne/Profinet_Ethernet/AbsoluteEncoders_OCD_IndustrialEthernet_Profinet_Manual_DataContent.pdf
Second: What Yaskawa drive do you use? For integrating in a TIA Project you also must have GSD file for controlling via Profibus for example or GSDML via Profinet. The drive must be controlled for Start, Stop....and so on..
Read this..with Step7 5
https://www.yaskawa.com/delegate/getAttachment?documentId=AN.AFD.31&cmd=documents&documentName=AN.AFD.31.pdf
https://www.posital.com/de/produkte/absolute-drehgeber/absolute-drehgeber-finder/OCE-EIB1B-0013-F100-CRW/144972202/detail.php
https://www.posital.com/media/fraba/productfinder/posital/project-ixarc-ocd-ei.zip

https://www.dmcinfo.com/latest-thinking/blog/id/9420/3-steps-for-configuring-yaskawa-vfds-over-proifbus

patonn5 · Junior Joined: 23 Oct 2018 Posts: 4

This is a skeleton project for controlling Yaskawa drive with S7-1200.

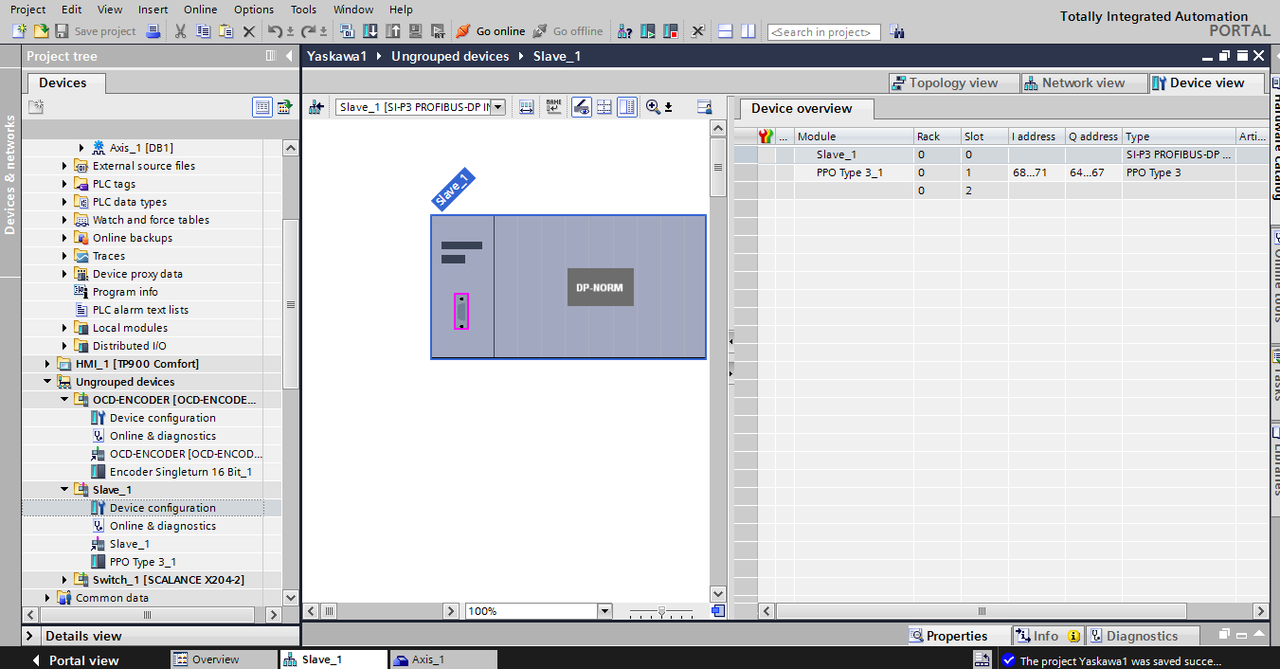

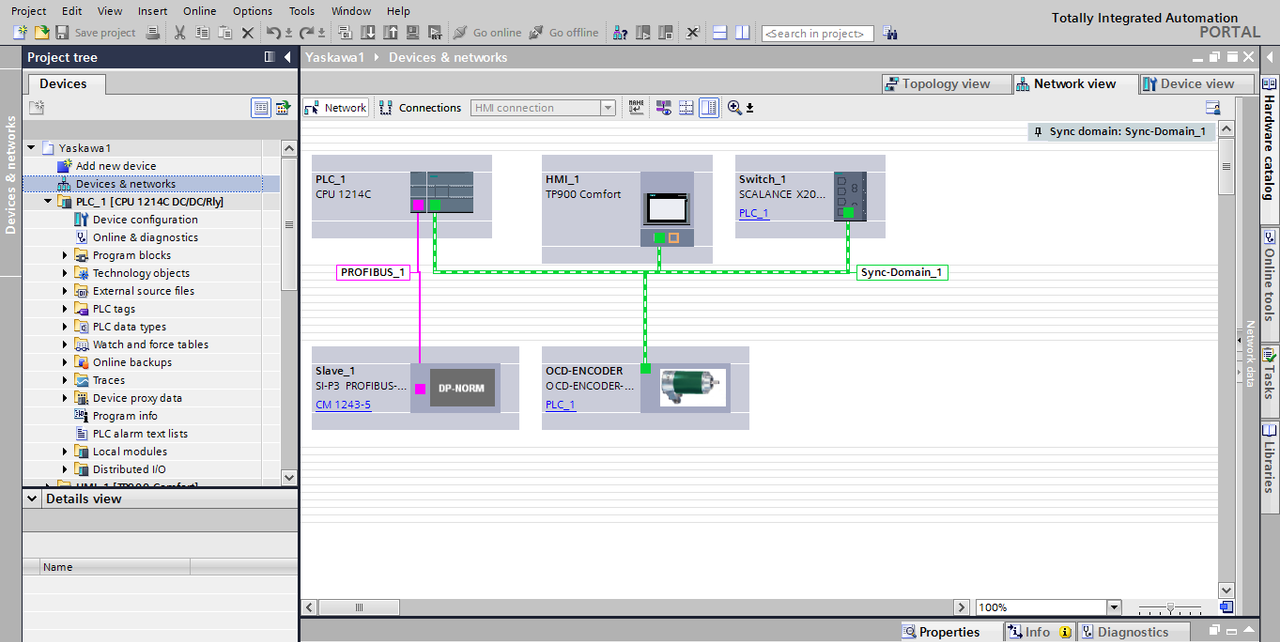

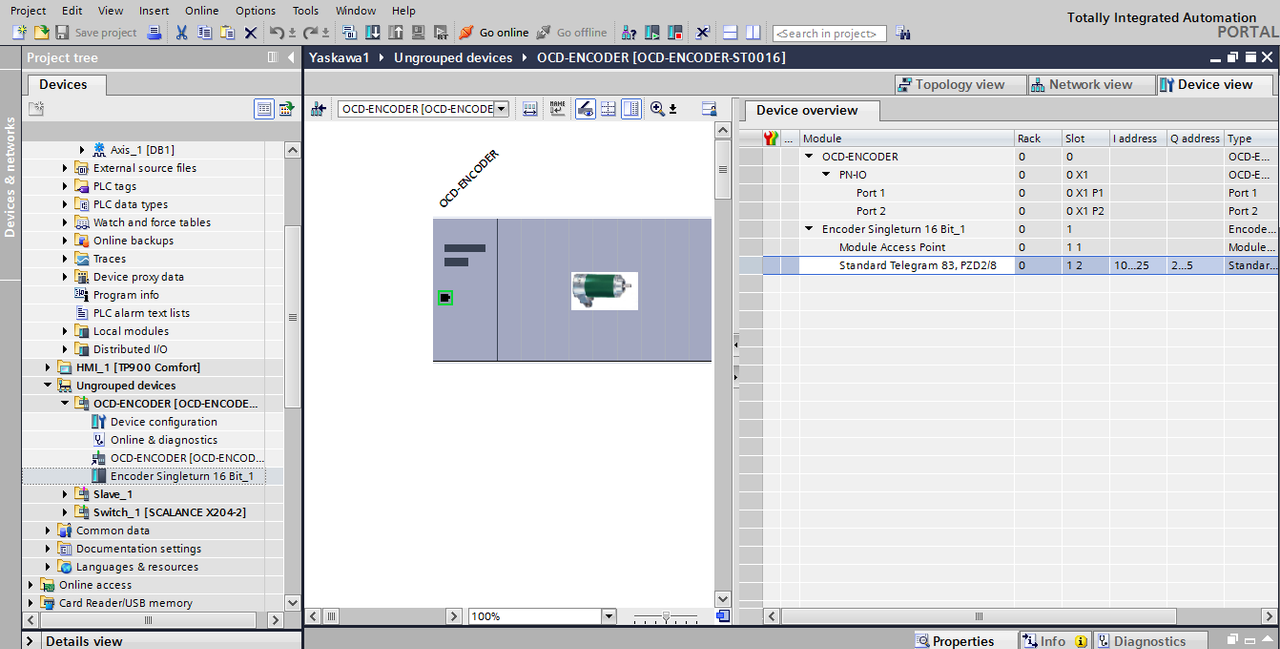

This is how to connect Yaskava Drive with Profibus Control and connection of encoder to S7-1200 via Profinet.

S7-1200 CPU Analog Drive/Profinet Encoder Yaskawa drive with S7-1200

S7-1200 CPU Analog Drive/Profinet Encoder Yaskawa drive with S7-1200

You must start programming by deleting my data because they are only as example..has no functionality..
You can remove Comfort Panel, Switch and work only with PLC.
https://www.mediafire.com/file/6w4t544r38r51n3/Yaskawa1_1.zap14

You can also made your own FB for controlling Drive...this is only an idea..
