 Posted: 11/08/2023 20:43 Post subject: S7-1200 als PN-DP-Gateway |
 |
|
S7-1200 als PN-DP-Gateway
https://support.industry.siemens.com/cs/document/101495058/
task to realize a coupling to PROFIBUS DP networks from existing plants or plants,which could not convert to PROFINET yet. ...

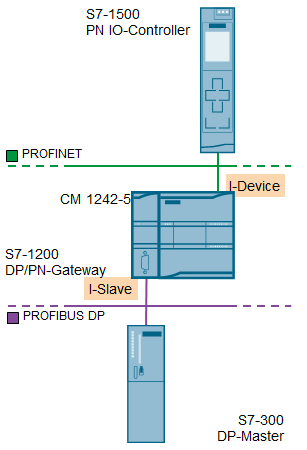

For this task the S7-1200 offers a cost-effective and capable alternative. In conjunction with the PROFIBUS DP communication module CM 1242-5 and the PROFINET I-device function the S7-1200 becomes a gateway between PROFIBUS and the PROFINET system part.
As I-Slave in the PROFIBUS network
As I-Device in the PROFINET IO network.
The S7-1200 transfers cyclic I/O data between the both networks. The data transer is completely transparent.
In this application an S7-300 represents the PROFIBUS system part, an S7-1500 represents the PROFINET system part.
Downloads
https://support.industry.siemens.com/cs/attachments/101495058/101495058_S7-1200_PN_DP_Gateway_DOC_v11_en.pdf
https://support.industry.siemens.com/cs/attachments/101495058/101495058_pn_dp_gateway_code_TIAPv15.1.zip
Update TIA Portal V15.1
https://ulozto.net/tamhle/7LgwWRKvTvsj/
[URL=https://www.file-upload.net/download-15176831/101495058_pn_dp_gateway_code_TIAPv15.1.zip.html]101495058_pn_dp_gateway_code_TIAPv15.1.zip[/URL]
[URL=https://www.file-upload.net/download-15176833/101495058_S7-1200_PN_DP_Gateway_DOC_v11_en.pdf.html]101495058_S7-1200_PN_DP_Gateway_DOC_v11_en.pdf[/URL] |
|
