RS485 TO BUM616


Post new topic   Reply to topic    plc.myforum.ro Forum Index -> ROther PLCs
View previous topic :: View next topic
Author Message
kieronriding
Junior
Junior


Joined: 04 Sep 2020
Posts: 1
PostPosted: 04/09/2020 15:14    Post subject: RS485 TO BUM616 Reply with quote
Can anyone help me out here, I am trying to test if Comms is working on a BUM616 trying to achieve 485 connection using HyperTerminal via 232 into an ADAM (485 Converter) then into the drive.

When I send any data to the drive I do not get a response back. The manual says if the data doesn't make sense to the drive then it will just do nothing

I am not sure if the data I am sending is incomplete - 020401000000

Does anyone have any experience with these drives?

Help would be massively appreciated
Back to top
View user's profile Send private message
alkey
Junior
Junior


Joined: 12 Jun 2020
Posts: 1
PostPosted: 04/09/2020 17:27    Post subject: Reply with quote

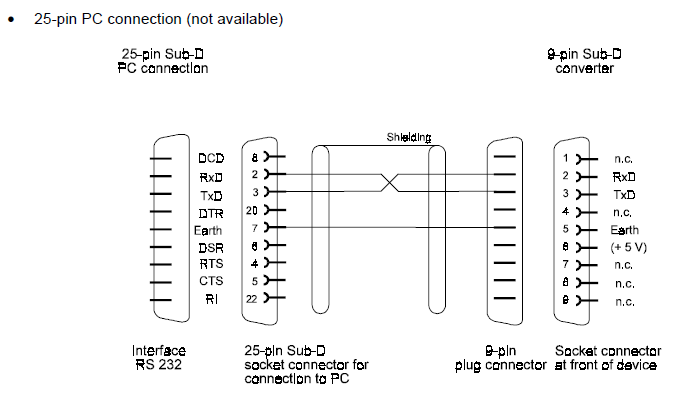

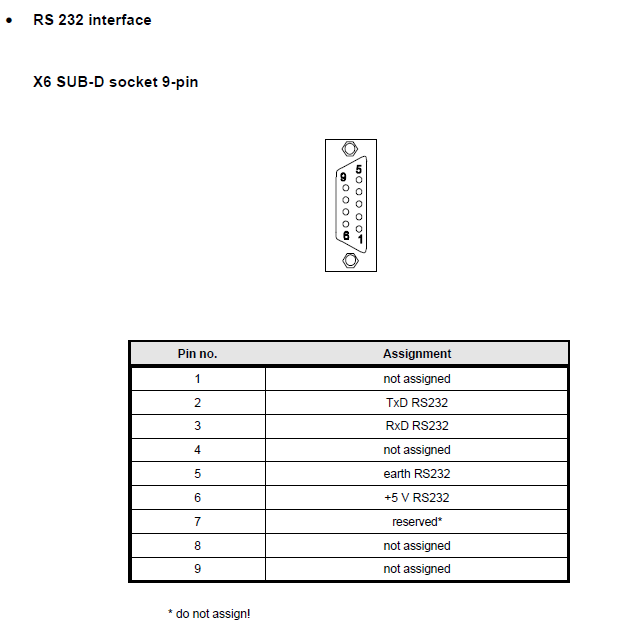

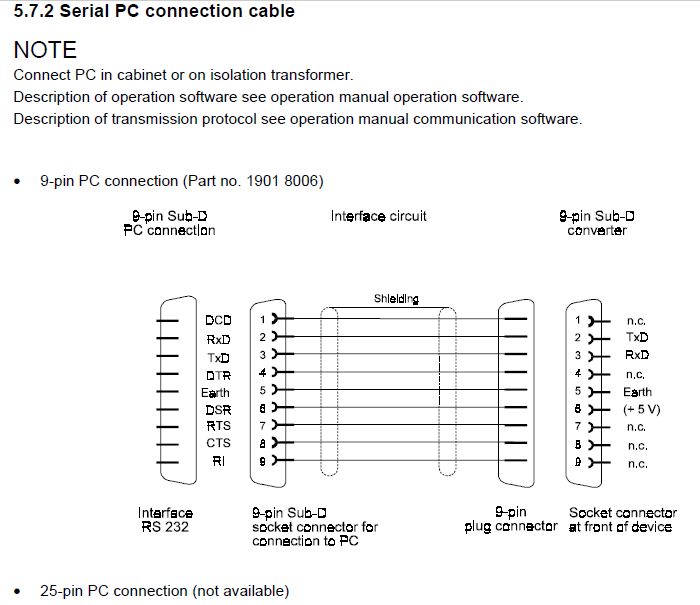

use rs232
RS485 TO BUM616

RS485 TO BUM616

RS485 TO BUM616

RS485 TO BUM616

RS485 TO BUM616

[url=http://www.girlshare.ro/3769963678.8]94032e05.pdf[/url]

[url=http://www.girlshare.ro/3769963679.9]bum-618_619.pdf[/url]
