RFID Basic Examples: SIMATIC RF300 via RF188C
https://support.industry.siemens.com/cs/document/109769357/rfid-basic-examples%3A-simatic-rf300-via-rf188c
Via the RF188C communication module, SIMATIC RF300 readers are integrated into a control system via PROFINET. The “Ident” / “Ident Profile” S7 blocks are used to control this configuration.
The task is to integrate a SIMATIC RF300 reader into an S7 control system via PROFINET. Using the reader, basic RFID functionalities are to be implemented.
The RF188C communication module was developed to connect the SIMATIC RFID readers to an S7 control system via PROFINET. The “Ident” S7 program blocks are used to control the readers.

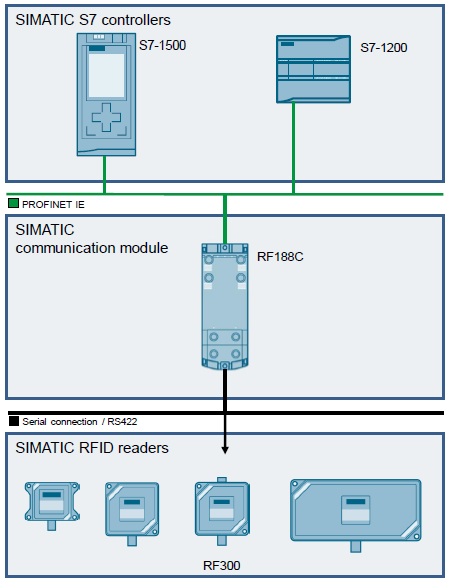

The basic example for this solution is kept very simple. It focuses on describing the basic steps for configuring and programming the automation solution. The following figure shows the structure of the solution:
RFID Basic Examples: SIMATIC RF300 via RF188C RFID Basic Examples: SIMATIC RF300 via RF188C

RFID Basic Examples: SIMATIC RF300 via RF188C RFID Basic Examples: SIMATIC RF300 via RF188C

Documentation and example project for STEP 7 V15.1 with Technology object
https://support.industry.siemens.com/cs/attachments/109769357/109769357_SIMATIC_RF300_RF188C_TO_DOC_V1_0_en.pdf
https://support.industry.siemens.com/cs/attachments/109769357/109769357_SIMATIC_RF300_RF188C_S7-1200_TO_PROJ_V1_0.zip
https://support.industry.siemens.com/cs/attachments/109769357/109769357_SIMATIC_RF300_RF188C_S7-1500_TO_PROJ_V1_0.zip

Other SIMATIC Ident Basic Examples
https://support.industry.siemens.com/cs/document/109483416/rfid-basic-examples
