 Posted: 31/05/2017 16:41 Post subject: Request for programing cable of display proface GP37 |
 |
|
Dear sir ,
I need to upload the project from the display proface GP377-SC41-24V.
Could you please tell me the pinout of the programing cable GPW-CB02, for prepared it .
I waiting your response
thank you
Kind regards,
----------------
Paul Pearson
Company: MACS
Address: 3A Waldeck road, luton, lu1 1HG
Tel: 01582516895
Email: paulpearson02@yahoo.com |
|
| Back to top |
|
 |
on
Junior
Joined: 29 Dec 2016
Posts: 19
|
| Posted: 31/05/2017 19:33 Post subject: Re: Request for programing cable of display proface GP37 |
|
|
| sebhi wrote: | Dear sir ,
I need to upload the project from the display proface GP377-SC41-24V.
Could you please tell me the pinout of the programing cable GPW-CB02, for prepared it .
I waiting your response
thank you
Kind regards,
----------------
Paul Pearson
Company: MACS
Address: 3A Waldeck road, luton, lu1 1HG
Tel: 01582516895
Email: paulpearson02@yahoo.com |
Maybe you have to buy it because has an adapter
https://chinaplccenter.com/PLC-programmer-Cable/Proface-touch-screen-cable/GPW-CB02-programming-cable.html |
|
| Back to top |
|
|
sebhi
Junior
Joined: 13 Aug 2016
Posts: 14
Location: ef
|
| Posted: 19/04/2019 22:09 Post subject: Request for proface GP377 communication port |
|
|
Dear sir ,
thank you for your reply .
I need to upload the project from the proface display GP377-SC41-24V.
-Could you please tell me if I can do it via the serial port Dsub 25 pin? , if yes, Please what is the pinout of the cable ?
I waiting your response .
thank you
Kind regards,
----------------
Paul Pearson
Company: MACS
Address: 3A Waldeck road, luton, lu1 1HG
Tel: 01582516895
Email: paulpearson02@yahoo.com |
|
| Back to top |
|
|
Obin
Junior
Joined: 01 Dec 2018
Posts: 3
|
| Posted: 19/04/2019 22:55 Post subject: |
|
|

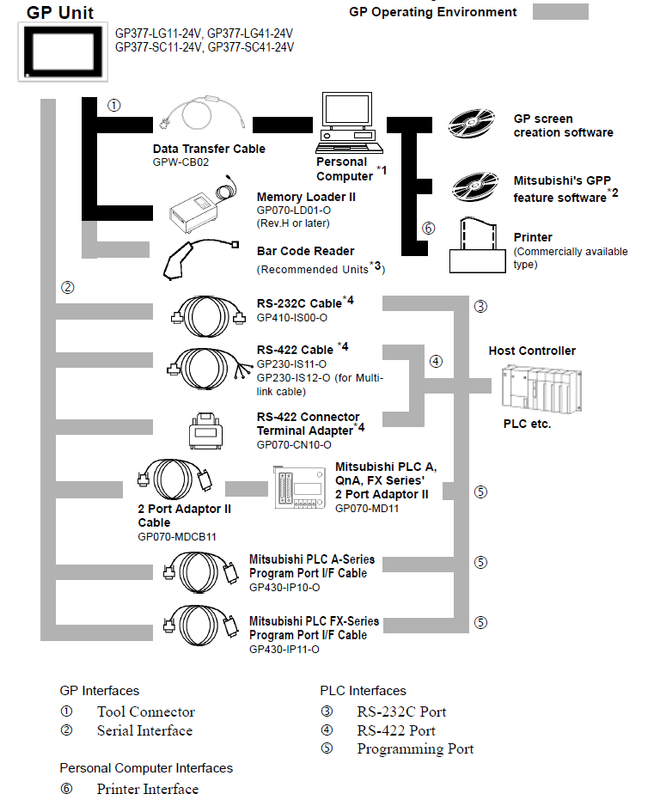

GPW-CB02 RS-232 HMI Programming Cable: Connects HMI to PC Port 9 pin D-Sub is the only cable for upload/download from GP.
Please see the attached picture
https://www.hmisource.com/otasuke/files/manual/gp_hard/GP377-MM11-ENGb.pdf
https://stevenengineering.com/Tech_Support/PDFs/18M-HMI-M.pdf
https://www.pro-face.com/otasuke/qa/gp/other_en/0267_PB3_Win7_e.html
https://www.pro-face.com/otasuke/qa/gp/other_en/0268_PB3_Win7_com_e.html |
|
| Back to top |
|
|
sebhi
Junior
Joined: 13 Aug 2016
Posts: 14
Location: ef
|
| Posted: 03/05/2019 15:26 Post subject: |
|
|
Dear Obin,
Thank you very much for your help .
thanks
BR |
|
