Punch Tap Cycle (OEM / distributor)
https://support.industry.siemens.com/cs/document/109480428/punch-tap-cycle
This new method of thread cutting allows manufacture thread profile with reduced energy consumption. The machining time can be reduced by 75% for each thread.

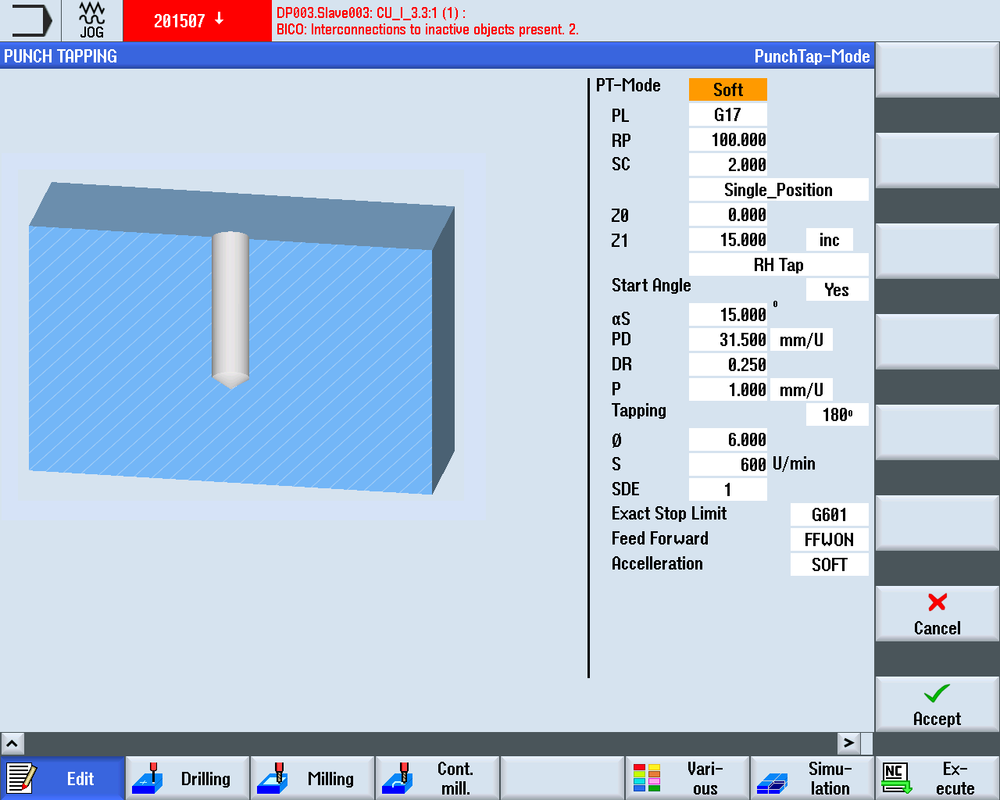

Punch tapping is a new method of thread cutting. The Punch tap tool has no continuous thread profile. Instead two twisted row of teeth are off-set to each other by 180°. The tool moves into the predrilled tap hole at lightning speed on a steep helical path where two twisted grooves - so called helical grooves - are generated on the circumference of the hole by two broaching teeth located at the head of the tool. Afterwards the spindle turns by 180°, the axial feed axis moves synchronously by half a pitch - and the thread is completely machined. The machining time can usually be reduced by 75% for each thread through this new technology. The expression "Punch Tap" was derived from punching in boxing, which describes a quick and short thrust of the fist. The new technology was developed jointly by Emuge-Franken and Audi as a new manufacturing process up to the point of operational use. This new technology is suitable for certain materials. To simplify the parameter assignment, programming support has been created via RunMyScreen.
Punch Tap Cycle (OEM / distributor) Punch Tap Cycle (OEM / distributor)

Punch Tap Cycle (OEM / distributor) Punch Tap Cycle (OEM / distributor)

https://support.industry.siemens.com/cs/attachments/109480428/109480428-Application_SINUMERIK_Punch_Tap_Cycle_en.pdf
https://support.industry.siemens.com/cs/attachments/109480428/V0405SP4.zip
