PRONETA Basic 3.2 Commissioning and Diagnostics Tool for PROFINET
https://support.industry.siemens.com/cs/document/67460624/
The PROFINET network analyzer PRONETA Basic is a simple tool intended for the rapid analysis and configuration of PROFINET networks and the simple testing of ET 200 distributed IO systems and other components.

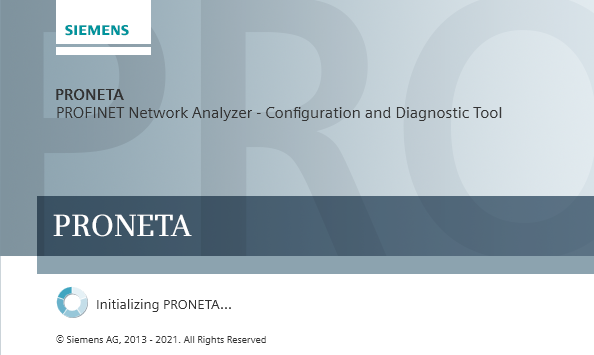

PRONETA Basic V3.2 for PROFINET PRONETA Basic V3.2 for PROFINET

PRONETA Basic V3.2 for PROFINET PRONETA Basic V3.2 for PROFINET

PRONETA Basic is well suited for solving two tasks fundamental to the commissioning of PROFINET installations:
The “Network Analysis" task gives a quick overview of the devices connected to PROFINET. It features simple configuration options, like setting network parameters or assigning a network name to the devices which are part of the subnet the PRONETA PC is connected. The application also provides powerful mechanisms to compare several network topologies with each other, for example to compare an “ideal” topology intended for a project with the actual installation.
The “IO Test" task is a simple and intuitive method to test the IO wiring of an installation with numerous distributed IO devices. It allows for checks of the wiring and will automatically set up a protocol of the test procedure which can be exported for documentation purposes.
Both tasks can be performed before a CPU is integrated in the network. Since there are no other engineering tools required, PRONETA Basic allows fast and convenient checks of the system configuration from early on.
New features of PRONETA Basic V3.2
Support for the IO test of central IO modules of most SIMATIC S7-1500 CPUs and ET 200SP CPUs.**)
Read out diagnostic information for all devices
Include devices found via IP forwarding in other subnets
Various bugfixes and performance improvements

**) Fail-safe central IO modules are not supported.

PRONETA Requirements
Hardware
PRONETA Basic runs on any standard PC, PG or laptop. The PROFINET connection is established through a regular Industrial Ethernet cable.
Software
PRONETA Basic is released for Windows 7, Windows 7 Embedded Compact, Windows 8 and Windows 10 (each with 32 or 64 bits).
In addition to PRONETA Basic, the .NET Framework v4.6.2 must be present on the PC

Downloads
https://support.industry.siemens.com/cs/attachments/67460624/PRONETA_Documentation_V3_2_en.pdf
https://support.industry.siemens.com/cs/attachments/67460624/proneta_3_2_0_0.Zip
https://support.industry.siemens.com/cs/attachments/67460624/PRONETA_supported_modules_V32.xlsx
https://support.industry.siemens.com/cs/attachments/67460624/PRONETA_OSS_Components_32.zip
https://support.industry.siemens.com/cs/attachments/67460624/proneta-io-check_EN.zip

https://www.youtube.com/watch?v=TXOXZxSRaBo

https://ulozto.net/tamhle/fMqJMpen528K/

https://anonfiles.com/b459d9U5u1/PRONETA_supported_modules_V32_xlsx
https://anonfiles.com/ff5cd4U6u0/PRONETA_OSS_Components_32_zip
https://anonfiles.com/l25fdfUeuf/PRONETA_Documentation_V3_2_en_pdf
https://anonfiles.com/t858deU1u7/proneta-io-check_EN_zip
https://anonfiles.com/l8D8d7U8u1/proneta_3_2_0_0_Zip
