PROFINET S2 system redundancy with SINAMICS G220 and SIMATIC S7 1500 R/H
https://support.industry.siemens.com/cs/document/109926733/
The drives of the SINAMICS G220 family support PROFINET S2 system redundancy. Thanks to S2 system redundancy, operation of the system is guaranteed even in the event of a defect or replacement of a controller, thus reducing downtimes.
S2 system redundancy

With system redundancy, a PROFINET device establishes several communication relationships to a redundant system. This example describes S2 system redundancy, in which a SINAMICS G220 is operated as a PROFINET device on a fault-tolerant system without the use of additional hardware.

The prerequisite for implementing system redundancy is the use of an S7-1500 fault-tolerant system. An S7-1500 fault-tolerant system consists of two high-availability (fault-tolerant) controllers (primary and secondary CPU). If one of the H CPUs fails, the other automatically takes over.

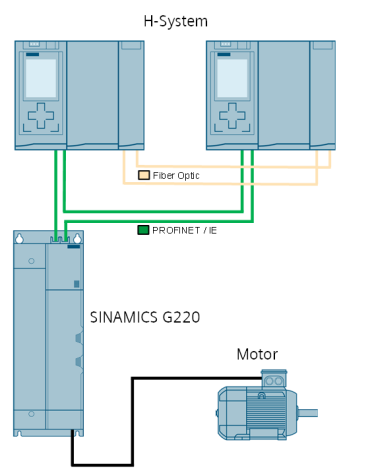

PROFINET S2 system redundancy with SINAMICS G220 PROFINET S2 system redundancy with SINAMICS G220

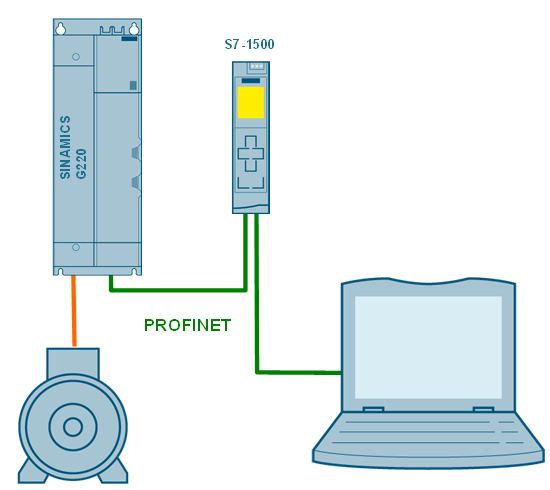

PROFINET S2 system redundancy with SINAMICS G220 PROFINET S2 system redundancy with SINAMICS G220

Download
https://support.industry.siemens.com/cs/attachments/109926733/109926733_S2_Systemredundancy_S7-1500RH_G220_DOC_v10_en.pdf
https://support.industry.siemens.com/cs/attachments/109926733/109926733_S2_Systemredundancy_S7-1500RH_G220_PROJ_v10.zip

[URL=http://depositfiles.com/files/1hd21cd1x]http://depositfiles.com/files/1hd21cd1x[/URL]
[URL=http://depositfiles.com/files/46ftvv9ah]http://depositfiles.com/files/46ftvv9ah[/URL]

mamiko · Member 2 Joined: 25 Dec 2017 Posts: 420

PROFINET system redundancy with the SINAMCIS G220 and SIMATIC S7-410
https://support.industry.siemens.com/cs/document/109932875/
The converter of the SINAMICS G220 family support PROFINET S2 system redundancy. Thanks to S2 system redundancy, operation of the system is guaranteed even in the event of a defect or replacement of a controller, thus reducing downtimes.
S2 system rezbdabdy

S2 system redundancy refers to a method of improving the reliability and fault-tolerance of a system. In an S2 redundant system, there are two identical components working in parallel. If one component fails, the other automatically assumes its function to ensure uninterrupted operation.

This example describes S2 system redundancy, in which a SINAMICS G220 is operated as a PROFINET device on a fault-tolerant system without the use of additional hardware.

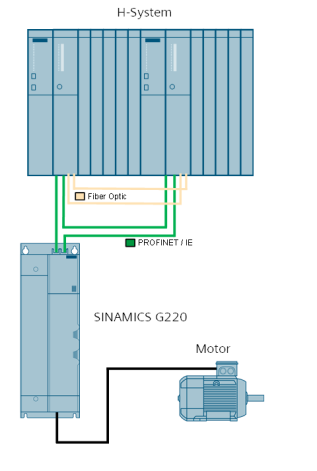

PROFINET S2 system redundancy with SINAMICS G220 PROFINET S2 system redundancy with SINAMICS G220

Download
https://support.industry.siemens.com/cs/attachments/109932875/109932875_S2_Systemredundancy_S7-410H_G220_V10_en.pdf
https://support.industry.siemens.com/cs/attachments/109932875/S2_Systemredundancy_S7-410H_G220_Proj.zip

[URL=http://depositfiles.com/files/4kfm32ac7]http://depositfiles.com/files/4kfm32ac7[/URL]
[URL=http://depositfiles.com/files/79nu8n3gu]http://depositfiles.com/files/79nu8n3gu[/URL]

mamiko · Member 2 Joined: 25 Dec 2017 Posts: 420

Speed control of a SINAMICS G220 with SIMATIC S7-1500 via PROFINET
https://support.industry.siemens.com/cs/document/109955055/
How you can control a SINAMICS G220 with variable speed control from a SIMATIC S7.
The SIMATIC S7-1500 controllers and the SINAMICS G220 drive family make it easy to integrate the drive into the automation solution. The drive is controlled by the SIMATIC S7-15001 controller. The following functions of the SINAMICS G220 and the SIMATIC S7-1500 are available for flexible and efficient implementation:

Moving the SINAMICS G220 drive via the SIMATIC S7-1500 controller
Reading and writing parameters (e.g. error numbers) of the drive
This application example presents and describes the functions available in the SINAMICS G220 and the SIMATIC S7-1500

for this automation task.

PROFINET S2 system redundancy with SINAMICS G220 PROFINET S2 system redundancy with SINAMICS G220

Download
https://support.industry.siemens.com/cs/attachments/109955055/109955055_SINAMICS_G220_PN_at_S7-1500_DOC_v10_en.pdf
https://support.industry.siemens.com/cs/attachments/109955055/109955055_SINAMICS_G220_PN_at_S7-1500_PROJ_v100.zip

[URL=http://depositfiles.com/files/wh2spkcs3]http://depositfiles.com/files/wh2spkcs3[/URL]
[URL=http://depositfiles.com/files/l5y6jepi4]http://depositfiles.com/files/l5y6jepi4[/URL]
