 Posted: 19/01/2017 12:48 Post subject: ProDiag: Machine and Plant Diagnostics |
 |
|
ProDiag: Machine and Plant Diagnostics
https://support.industry.siemens.com/cs/document/109740151/machine-and-plant-diagnostics-with-prodiag

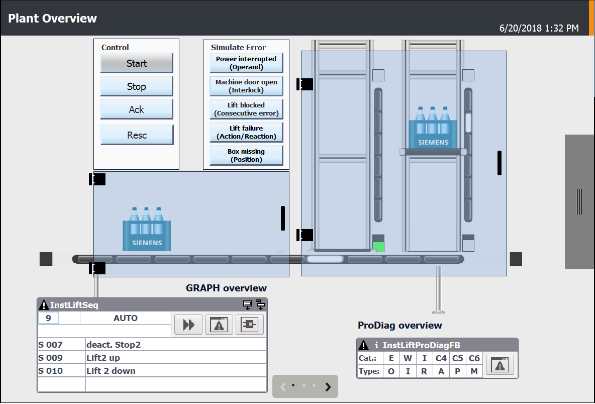

This example shows a virtual conveyor system with two lifts. On the belt, cases are alternately transported to one of the lifts and then destacked upwards. The conveyor system is controlled using an operator panel and monitored with ProDiag. The different supervisions can be simulated and displayed on the operator panel.
With ProDiag process diagnostics, the supervisions are configured and not programmed. This enables you to monitor your machine and plant without modifying the user program code.
Without a programmer, you diagnose the machine and plant directly on the operator panel.
Automatic synchronization ensures that all operator panel displays are always up to date.
https://support.industry.siemens.com/cs/attachments/109740151/109740151_ProDiag_DOKU_v20_en.pdf
https://support.industry.siemens.com/cs/attachments/109740151/109740151_ProDiag_CODE_Adv_v10.zip
https://support.industry.siemens.com/cs/attachments/109740151/109740151_ProDiag_CODE_Prof_v10.zip |
|
