m_ghaff2000 · Junior Joined: 19 Mar 2020 Posts: 3

I have a PLC TSX17 telemecanique with EEprom It was OFF for several years
the Battery was lost .I have changed the Batt but now the PLC is not RUN
RUN and Mem lights are blinking. According the manual The PLC should be memory initialize . I have installed TL7 software (DOS) I cannot find how I can initilize the memory
please help me!!!!
Thanks
:weep:

tdk800 · Junior Joined: 31 Oct 2018 Posts: 4

The EEPROM cartridge has a micro switch on it.
The micro switch needs to be in the Master (left most) position.
With the switch in this position the controller will load from the EEPROM on power up.

m_ghaff2000 · Junior Joined: 19 Mar 2020 Posts: 3

Thanks for your reply
I changed it to Work position and power On again but RUN and MEM lights were
bliknking again power off and changed it to Master position but it did not run
according to manual it should be memory initialized
do you know what I should do?

thanks

m_ghaff2000 · Junior Joined: 19 Mar 2020 Posts: 3

Thanks
RUN and MEM lights are blinking. I have installed PL7 under DOS but I cannot find which menu I can clear PLC memory?
:?:

yaslin · Junior 2 Joined: 24 Nov 2017 Posts: 30

https://ulozto.net/tam/_70Uq5hWx52D7

[url=https://www8.zippyshare.com/v/uhzK9Xmz/file.html]AltistartDtmLibrary_10.0.1.zip[/url]
[url=https://www8.zippyshare.com/v/L0HIwmPH/file.html]AltivarDtmLibrary_V11.0.27.zip[/url]
[url=https://www8.zippyshare.com/v/Mxy4CoyF/file.html]AltivarMachine_ATV320_DTM_Library_V1.0.9.zip[/url]
[url=https://www8.zippyshare.com/v/2Q3GE85C/file.html]AltivarProcess_ATV6xx_DTM_Library_V1.5.503.zip[/url]
[url=https://www8.zippyshare.com/v/JPSZHzhr/file.html]AltivarProcess_ATV9xx_DTM_Library_V1.2.101.zip[/url]
[url=https://www8.zippyshare.com/v/2mMOfBFH/file.html]KeyGenUnity_ProWORX_OFS_SyCON_noRELEASEv3.rar[/url]
[url=https://www8.zippyshare.com/v/EhRAVfem/file.html]PL7 1_V3.rar[/url]
[url=https://www8.zippyshare.com/v/1FDsx1sS/file.html]PL7 4.5 PRO update SP5.rar[/url]
[url=https://www8.zippyshare.com/v/EedjhS6R/file.html]PL7 Pro 4.4.rar[/url]
[url=https://www8.zippyshare.com/v/hZYxD7YW/file.html]PL7 Pro V2.2.rar[/url]
[url=https://www8.zippyshare.com/v/gg5c6ZU4/file.html]PL7 Pro V4.2.rar[/url]
[url=https://www8.zippyshare.com/v/TcExv2KH/file.html]PL7 Pro V4.5 update SP4 SP5.rar[/url]
[url=https://www8.zippyshare.com/v/HjApkPm2/file.html]PL7 PRO V4.5.rar[/url]
[url=https://www8.zippyshare.com/v/ieOOYxl1/file.html]PL7 Pro_V4_update.rar[/url]
[url=https://www8.zippyshare.com/v/2idxKATp/file.html]PL7_DEMO.rar[/url]
[url=https://www8.zippyshare.com/v/d1kkpGZS/file.html]PL7_Pro_4.4.rar[/url]
[url=https://www8.zippyshare.com/v/YMzty94u/file.html]PL7_PRO_4.5_SP5.rar[/url]
[url=https://www8.zippyshare.com/v/uHHPeGTf/file.html]PL7_Pro_V4.3.rar[/url]
[url=https://www8.zippyshare.com/v/uPrLadJF/file.html]PL7_PRO_V31.rar[/url]
[url=https://www8.zippyshare.com/v/vdOLyIec/file.html]PL7HotFix.7z[/url]
[url=https://www8.zippyshare.com/v/Y4CGqcGL/file.html]PL7Pro_Med.rar[/url]
[url=https://www8.zippyshare.com/v/buxJmzRG/file.html]PL71.ZIP[/url]
[url=https://www8.zippyshare.com/v/mdQmZP8e/file.html]PL71_V3.zip[/url]
[url=https://www8.zippyshare.com/v/h4I34j7k/file.html]PL722D1.ZIP[/url]
[url=https://www8.zippyshare.com/v/JyWyaDpL/file.html]PL722D2.ZIP[/url]
[url=https://www8.zippyshare.com/v/pcJwclB1/file.html]SoMove_V2.5.zip[/url]
[url=https://www8.zippyshare.com/v/tS6Se8PP/file.html]SoMove_V2.6.exe[/url]
[url=https://www8.zippyshare.com/v/8xBTKBtv/file.html]TeSysDTMLibrary 2.8.0.0.zip[/url]
[url=https://www8.zippyshare.com/v/ypApWz7p/file.html]TLXLIBSCNVF.zip[/url]
[url=https://www8.zippyshare.com/v/eX2h7iue/file.html]UNI-TELWAY+DOS+V7_4+ie14+driver.ZIP[/url]
[url=https://www8.zippyshare.com/v/gplJDYaZ/file.html]UNI-TELWAY+Win+95+98+NT4+2000+XP+V1_1+ie02+SCP114+driver.zip[/url]
[url=https://www8.zippyshare.com/v/AVje2sfl/file.html]W913292180301A_K01_000_01.zip[/url]
[url=https://www8.zippyshare.com/v/b1YEapZq/file.html]XTEL V6.1 SP1.rar[/url]
[url=https://www8.zippyshare.com/v/bB022rC1/file.html]XTEL6.1_Plus.rar[/url]
[url=https://www8.zippyshare.com/v/0cruWIcY/file.html]XTEL61SP1.rar[/url]
[url=https://www8.zippyshare.com/v/VeLjv1xf/file.html]XTELV61.rar[/url]
[url=https://www91.zippyshare.com/v/I7zO4VD4/file.html]pl7_v45_sp4.rar[/url]
[url=https://www91.zippyshare.com/v/EbxYdJiZ/file.html]PL7DOCV31.rar[/url]

https://anonfile.com/nb0fo2Efna/PL7_1_V3_rar
https://anonfile.com/L102obEcn5/PL7_Pro_V2.2_rar
https://anonfile.com/V1N4o1Ecnb/PL7_Pro_4.4_rar
https://anonfile.com/t4ObodE6n1/PL7_4.5_PRO_update_SP5_rar
https://anonfile.com/zcO0o0E6ne/PL7_PRO_V4.5_rar
https://anonfile.com/hcR3o4E2n3/PL7_Pro_V4_update_rar
https://anonfile.com/90S0o9E9nb/PL7_Pro_V4.2_rar
https://anonfile.com/rea7p8E5nd/PL7_Pro_V4.5_update_SP4_SP5_rar
https://anonfile.com/Vdcdp8E3n9/PL7_Pro_4.4_rar
https://anonfile.com/H1d8p9Een9/PL7_PRO_V31_rar
https://anonfile.com/74i1p0E8nc/PL7DOCV31_rar
https://anonfile.com/Leicp8Eenc/PL7HotFix_7z
https://anonfile.com/N5ibp3E8na/PL7Pro_Med_rar
https://anonfile.com/T8i4p9E1n0/PL71_ZIP
https://anonfile.com/p6jep5Edn3/PL71_V3_zip
https://anonfile.com/r3j2peE7n0/PL722D1_ZIP
https://anonfile.com/57jcp6Ecn7/PL722D2_ZIP
https://anonfile.com/Lfm8p5E5n5/pl7_v45_sp4_rar
https://anonfile.com/F8sdp3E8n4/PL7_Pro_V4.3_rar
https://anonfile.com/B2x0p0E9n1/PL7_DEMO_rar
https://anonfile.com/d9yfp9Ean5/TLXLIBSCNVF_zip
https://anonfile.com/h7ycpaEfn6/UNI-TELWAY_DOS_V7_4_ie14_driver_ZIP
https://anonfile.com/L1ydpbEcne/UNI-TELWAY_Win_95_98_NT4_2000_XP_V1_1_ie02_SCP114_driver_zip
https://anonfile.com/V9y5p2E9n2/PL7_PRO_4.5_SP5_rar
https://anonfile.com/X5ycpeEen9/W913292180301A_K01_000_01_zip
https://anonfile.com/x917peE4nc/XTEL_V6.1_SP1_rar
https://anonfile.com/xf30pdE8n6/XTEL61SP1_rar
https://anonfile.com/D46cpfE1nc/TeSysDTMLibrary_2.8.0.0_zip
https://anonfile.com/9086p1Efna/XTELV61_rar
https://anonfile.com/H48cp6E7n1/XTEL6.1_Plus_rar
https://anonfile.com/t2Adp4Efn7/SoMove_V2.5_zip
https://anonfile.com/d2B9pbE4n8/SoMove_V2.6_exe

thehumi · Member junior Joined: 07 Aug 2019 Posts: 53

m_ghaff2000

Big delay in this reply:

Once you have entered the PL7-1 program and proper cable is connected:

Push F1 Key to change to ONLINE mode.
In the lower left, it should say "S FAULT". This is the PLC status STOP Mode and FAULT (Because of no program)

We reload the PLC active memory from the EEPROM backup chip.
Choose "Option 3 - Transfer"
Choose "Option 2 - Read / Write / Compare"
Choose "Option 0 - Read Backup ---> TSX"
It will say "Working" in red at the bottom. it is reading the EEPROM backup chip into active memory.

If there is a message like "TSX Has Refused" this means the EEPROM chip does not match the întocmai PLC it is in. The Program on it is for a different Part# of PLC.

If you do not receive a message, click END key button on keyboard, This brings you back to the main screen.

On the main screen it will now say "S LINE" at the bottom left. This says the PLC is ONLINE (No Faults) with the PC and in STOP mode.

Click F6 "RUN PG" to change the PLC mode to RUN mode. It should now say R LINE" in the lower left. This means the PLC is in RUN Mode, and ONLINE with the PC

With a new battery, this should be all that is needed.

-Humi

PS: Someone has Product ID# to install PL7 Pro V3.1? Link for software is in this thread, but no mention of Product ID#.

Brunni82 · Junior Joined: 12 Jul 2021 Posts: 4

Hello,

i have also a TSX17. The Buffer Battery was empty. My EEPROM Cartridge has no Switch to load SW to the RAM. So i think the only way to do this is by Software Tool.The Downloadcable RS232-RS485 is no problem, i found some schematics but i need the DOS Software PL7-2.

Can anyone help me with the software? That would be supranatural :-)

Nice gerrtings,
Fred

pfue375 · Junior Joined: 10 Oct 2018 Posts: 2

try
https://ulozto.net/tamhle/iG3q7rfKPCBW/

or

https://anonfiles.com/R7Udbe61u9/XDOSSYS1_zip
https://anonfiles.com/PdU8b56fuc/XDOSSYS2_zip

Brunni82 · Junior Joined: 12 Jul 2021 Posts: 4

hello pfue375,

thank you for your links. I downloaded the software but how can i install it? there is no setup.exe or similar.

I have an old win98 laptop with DOS and virtual Dos machine on win10.

BR,
Fred

crjm3245 · Junior Joined: 08 Nov 2018 Posts: 2

Try these links
https://ulozto.net/tamhle/aR2cbvTfJDaD/

[URL=https://veryfiles.com/ge37w4wcjivj]OS2_XTEL_PL72_Full.rar - 86.5 MB[/URL]
[URL=https://veryfiles.com/iv9au5trxb8l]PL7v3.rar - 18.0 MB[/URL]
[URL=https://veryfiles.com/s1jzsc5o3hom]PL707_v4.rar - 23.2 MB[/URL]

Brunni82 · Junior Joined: 12 Jul 2021 Posts: 4

HI!
Thank you for the links. I installed Pl707_v4 on a virtual DOS machine. But is this SW also compatible with TSX17-20?

The PL72 SW is only for OS/2 right?

BR,
Fred

thehumi · Member junior Joined: 07 Aug 2019 Posts: 53

Brummi82,

The PL7-2 software package I sent you is meant for the DOS operating system.

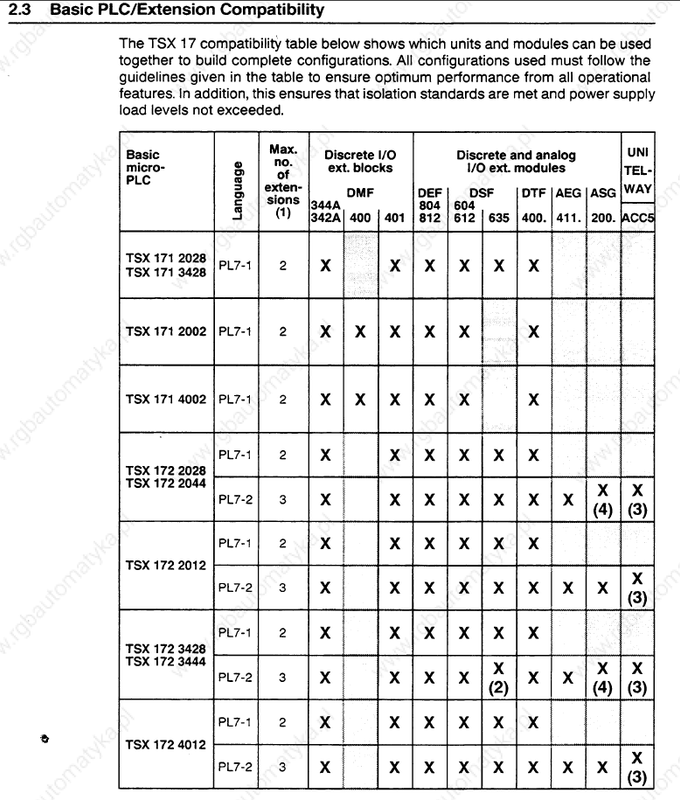

The TSX17-20 is possibly using PL7-1 or PL7-2 depending on the age of the program. I have found most will use the PL7-2 software.

Make sure to install the User Interface first.

-humi

bikyrat · Junior Joined: 14 Dec 2018 Posts: 4

[url=http://www.girlshare.ro/3770082115.8]TSX17-User-manual.pdf[/url]

Brunni82 · Junior Joined: 12 Jul 2021 Posts: 4

Hello,

now i can start the PL7-2 Software. I have connected a RS232-RS485 converter If i try to click an "Read" on "Progammer" there is no respponse from TSX17.

I checked the communication with my oscilloscope and i can see some bytes are sending from COM1 (i think some init data for starting communication??) but no response from TSX17.

What should i do first in the SW to transfer data from EPROM to RAM?

BR
Fred

thehumi · Member junior Joined: 07 Aug 2019 Posts: 53

Brunni82,

You need to first be able to communicate to the TSX17. Make sure you can get ONLINE with the plc. it will say "S LINE" in the bottom of the screen. This means the PLC is in STOP mode, but the software is active ONLINE with the plc.

For loading the EEPROM to RAM, look at my previous post on this topic for instructions on this Posted: 13/10/2020 22:36
