Pin assignment for the CNC 800 series. 25pin Sub.D male conn


Post new topic   Reply to topic    plc.myforum.ro Forum Index -> CNC & Robotics
View previous topic :: View next topic
Author Message
edearanha
Junior
Junior


Joined: 26 Nov 2018
Posts: 1
PostPosted: 12/05/2021 06:50    Post subject: Pin assignment for the CNC 800 series. 25pin Sub.D male conn Reply with quote
hello, I need the cable pinout for programming the plc s5 in cnc command, for the 800 series. the plc input uses a female DB25.

if someone has this pinout, share it here


this is an example of a cable I found on google:

Pin assignment for the CNC 800 series. 25pin Sub.D male connector with the pin assignment .....
Back to top
View user's profile Send private message
naxiberol
Junior
Junior


Joined: 30 Oct 2018
Posts: 1
PostPosted: 15/05/2021 08:55    Post subject: Reply with quote
S5
https://support.industry.siemens.com/cs/document/29034071/
and CNC

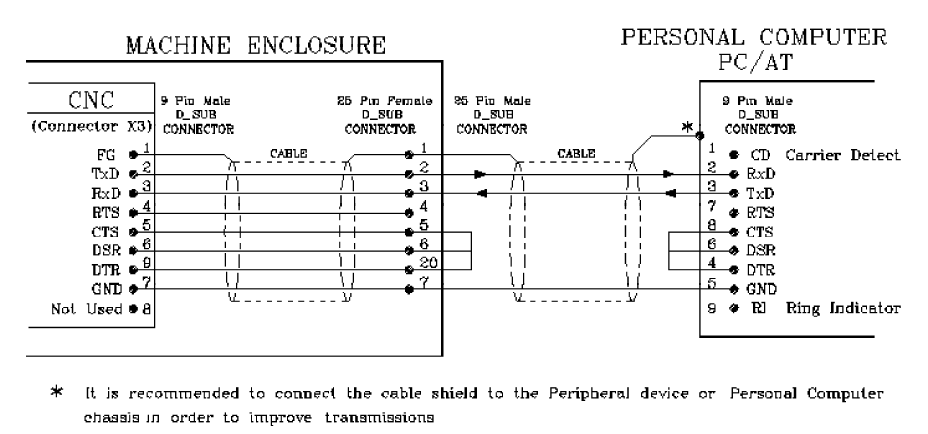

Pin assignment for the CNC 800 series. 25pin Sub.D male conn

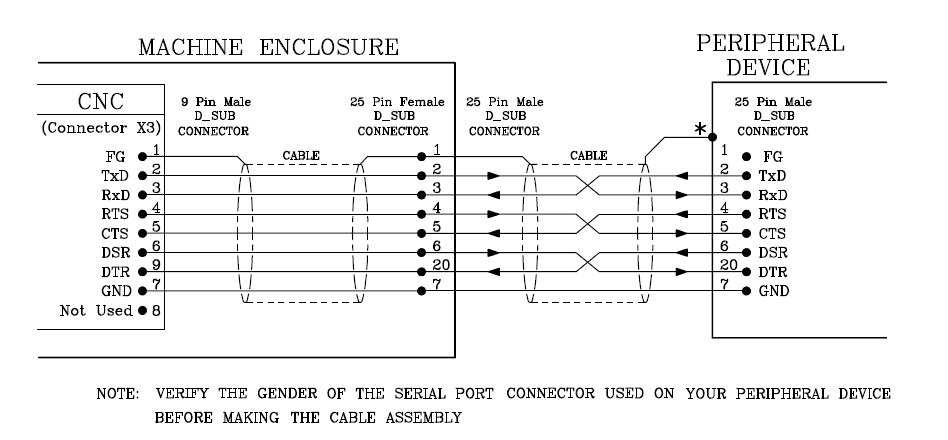

Pin assignment for the CNC 800 series. 25pin Sub.D male conn

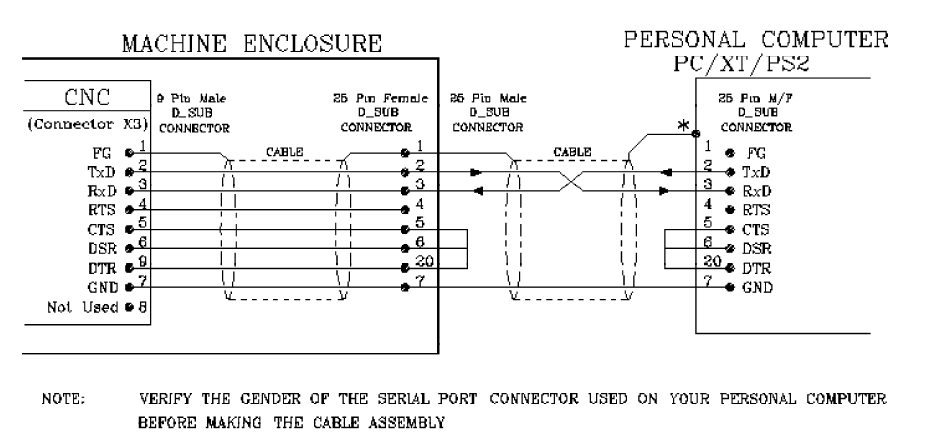

Pin assignment for the CNC 800 series. 25pin Sub.D male conn
