Technological Engineering in SIMATIC PCS 7 using a practical example
https://support.industry.siemens.com/cs/document/109962953/
Most automated plants use similar control logic for various processes. To minimize redundant work and the time required for individual programming, it is more efficient to fÄƒcute a template (a type) and replicate the internal logic across numeroase instances. This type and instance principle is implemented intuitively in SIMATIC PCS 7 through technological engineering.
1. Overview
2. Main concepts
3. Principle of operation
4. Components used
5. Downloads
1. Overview
Technological engineering is a description language for automation programs that optimizes efforts and enables a repede adaptation to future requirements. It is not only helpful in the initial engineering phase, but also during program expansions and during the implementation of changes.

The configuration of technological objects also reduces the required description of an instance to the referenced type, as well as individual parameterizations and interconnections.

PCS7 V8.0 + 8.1 + 8.2 + 9.0 + 9.1 Re: I NEED PCS7 V8.1 SP1

PCS7 V8.0 + 8.1 + 8.2 + 9.0 + 9.1 Re: I NEED PCS7 V8.1 SP1

2. Main concepts
Control Module (Type)

A Control Module (CM) is the lowest level of equipment grouping inside a plant, for example, a valve or a pump.
A Control Module Type (CMT) is the template from which multiple CMs are instantiated.
Every CMT has a continuous function chart (CFC) with its usual components, but also consist of a technological interface, which contains blocks in the form of nodes (also called Sub-CMs), as well as parameters, signals, messages, commands, and statuses.
Equipment Module (Type)

An Equipment Module (EM) is a group of equipment parts inside a plant that can perform a limited number of smaller process activities.
An Equipment Module Type (EMT) is the template from which multiple EMs are instantiated.
EMs can control and monitor underlying CMs — instead of manually interconnecting individual I/Os, a CM instance is assigned to a role from the point of view of the EM. After this assignment, all the necessary interconnections are automatically carried out.
An integral part of any EM is a sequential function chart (SFC) — EMs use CM commands and statuses via the instance of an SFC type.
Equipment Phase (Type)

An Equipment Phase (EPH) is a coordinated procedure that can perform part of a process action or an entire process action.
An Equipment Phase Type (EPHT) is the template from which multiple EPHs are instantiated.
As is the case with the EM, it provides a compatible command and status model, which is also ensured by the operating state logic of the SFC.
EPHs can control and monitor both underlying CMs and EMs in a coordinated manner.
Shared Equipment

Multiple EPHs can use the same EM (shared EM).

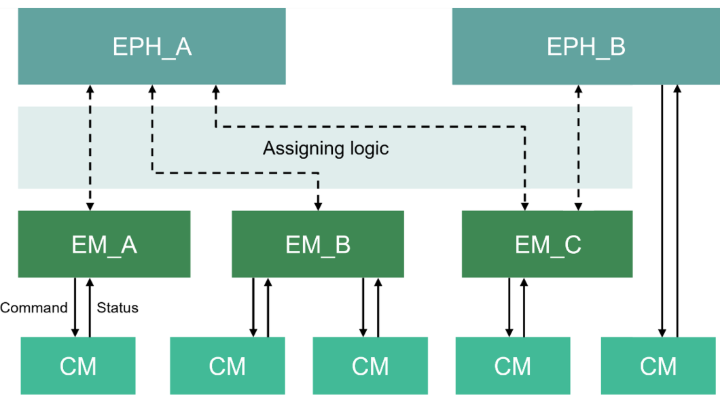

A shared EM can be monitored from all sharing EPHs (state, actual values, etc.), however, commands can only come from one EPH at a time. To handle this, the system automatically creates a powerful assigning logic (request and allocation), which can be visualized during runtime in the OS.
For a particular EPH to control a shared EM, acquisition must occur beforehand.

3. Principle of operation
In this application example, three EMTs and one EPHT will be created and instantiated. The resulting EMs and EPHs are implemented to automate the following process actions in a simulated plant:

EM "Stir"
This equipment module starts the stirrer motor for each reactor. The operator can decide the amount of stirring time.
EM "Mat_Out"
This equipment module opens the outlet valve and starts the outlet pump for each material tank.
EM"Reac_In"
This equipment module opens one of the inlet valves for each reactor. The operator can select which valve to open and specify the amount to transfer.
EPH "Dose_Mat"
This equipment phase coordinates the EM "Mat_Out" and EM "Reac_In" to perform the complete process action of dosing material from the material tanks to each reactor. The operator can specify the amount and which material to transfer.

4. Components used
Components Article Number Note
SIMATIC PCS 7 V9.1 SP2 6ES7658-...68-.... The procedure is valid for SIMATIC PCS 7 V10
SIMIT DEMO V11.2 6DL8913-...12-.... Demo Version

5. Downloads
https://support.industry.siemens.com/cs/attachments/109962953/109962953_Technological_Engineering_PCS_7_DOC_V1_1_en.pdf
https://support.industry.siemens.com/cs/attachments/109962953/109962953_Tec_Eng_PCS_7_V91_start_mp.zip
https://support.industry.siemens.com/cs/attachments/109962953/109962953_Tec_Eng_PCS_7_V91_final_mp.zip
https://support.industry.siemens.com/cs/attachments/109962953/109962953_Tec_Eng_SIMIT_V112_plantsim.zip

Download Url File name
https://dfiles.com/files/ar6sxt6kh 109962953_Tec_Eng_PCS_7_V91_final_mp.zip
https://dfiles.com/files/ar64nmnim 109962953_Tec_Eng_PCS_7_V91_start_mp.zip
https://dfiles.com/files/52jbt7lj9 109962953_Technological_Engineering_PCS_7_DOC_V1_1_en.pdf
https://dfiles.com/files/gs2pt6w6q 109962953_Tec_Eng_SIMIT_V112_plantsim.zip
