 Posted: 18/02/2023 01:11 Post subject: PC cable diagram for HITACHI L100 inverter needed |
 |
|
I want to connect the HITACHI L100 inverter to a PC so that I can read and back up the parameters.
I know that on the edge of the operator panel there is an RJ45 socket through which you can connect to a PC using RS422/485 communication.
I have the interface needed for this (for example RS485->USB or RS422->RS232), but I don't know how to connect to this RJ45 socket of the inverter.
Does anyone have a wiring diagram or at least a pinout for this socket? |
|
| Back to top |
|
 |
3eltima
Junior 2
Joined: 16 May 2018
Posts: 29
|
| Posted: 18/02/2023 12:44 Post subject: |
|
|

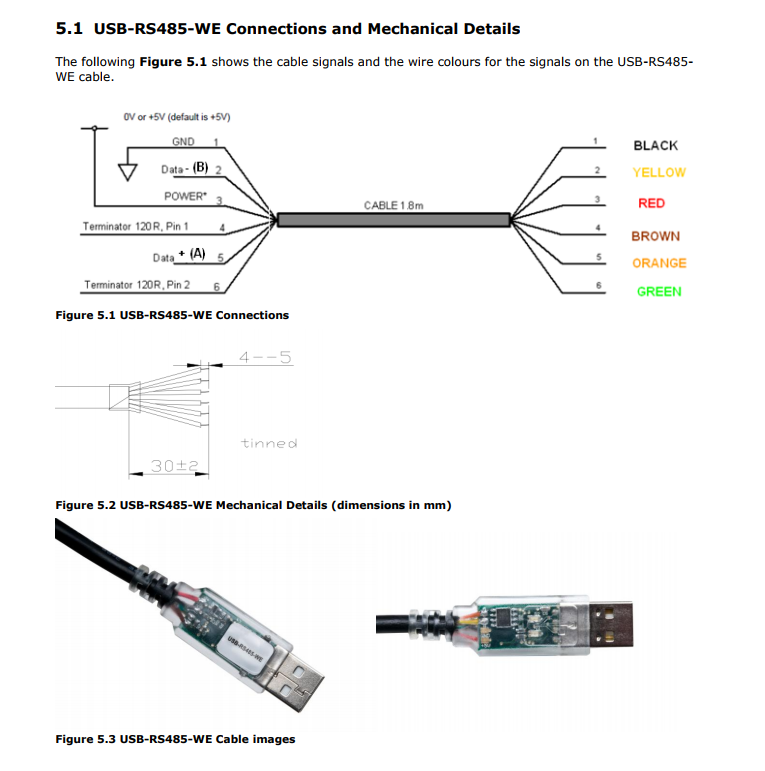

Try the adapt as in RJ45 to RS485
https://teraboxapp.com/s/1BkflhTvVKYBWlM8uMY0fXg
and USB
or buy one
https://www.driveswarehouse.com/usb-converter-cable |
|
| Back to top |
|
|
slawekj
Junior
Joined: 18 Feb 2023
Posts: 3
Location: POLAND
|
| Posted: 18/02/2023 20:25 Post subject: |
|
|
Unfortunately, with the exception of the last, the other information is useless.
I need a list of pins of the RJ45 plug in the inverter, I can handle the rest.
The idea for buying for $ 120 is too expensive and time consuming.
Thanks for the good intentions.
Did nobody really make a cable to connect these inverters with PC? |
|
| Back to top |
|
|
slawekj
Junior
Joined: 18 Feb 2023
Posts: 3
Location: POLAND
|
| Posted: 25/02/2023 22:59 Post subject: |
|
|
| slawekj wrote: | | Did nobody really make a cable to connect these inverters with PC? |
Well, the situation is under control  - the cable is made, the appropriate pins are identified. All in all a very simple connection.
The topic is closed. |
|
