 Posted: 14/02/2019 22:39 Post subject: PC-based Automation: Migration of S7-300/S7-400 S7-1500 |
 |
|
PC-based Automation: Simple Migration of S7-300/S7-400 - projects to S7-1500 Software Controller with TIA Portal (STEP 7 and WinCC)
https://support.industry.siemens.com/cs/document/67121011/pc-based-automation%3A-simple-migration-of-s7-300-s7-400-projects-to-s7-1500-software-controller-with-tia-portal- (step-7-and-wincc)
You want to change an existing automation solution with S7-300/S7-400 and HMI panel to Open Controller (S7-1500 Software Controller und WinCC Runtime Advanced).
This application example shows how to migrate a project with S7-300 to a S7-1500 Software Controller and how to migrate a Comfort Panel to SIMATIC WinCC RT Advanced.

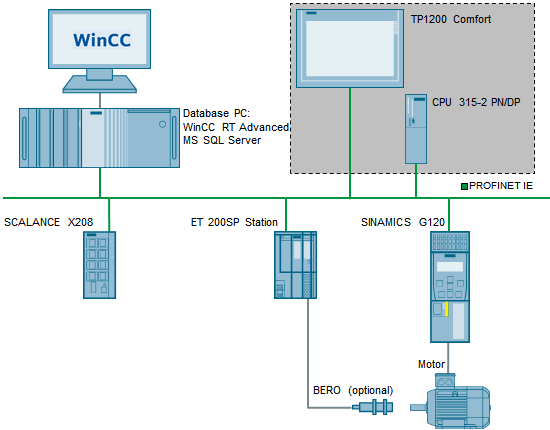

The figure below provides an overview of the automation task and which hardware (gray box) should be migrated. The remaining hardware will be migrated without changes.
Migration to Open Controller (S7-1500 Software Controller and WinCC RT Advanced)
The following figure gives a schematic overview of the most important components of the solution and the components after migration (gray box).
Downloads Tia15
https://support.industry.siemens.com/cs/attachments/67121011/67121011_S7-1500S_Migration_DOC_v40_en.pdf
https://support.industry.siemens.com/cs/attachments/67121011/67121011_S7-1500S_Migration_PROJ_v40.zip |
|
