kama
Member 2
Joined: 08 Dec 2016
Posts: 427
|
 Posted: 15/12/2016 12:52 Post subject: OPC UA .NET Client for the SIMATIC S7-1500 OPC UA Server |
 |
|
OPC UA .NET Client for the SIMATIC S7-1500 OPC UA Server
https://support.industry.siemens.com/cs/document/109737901/opc-ua-net-client-for-the-simatic-s7-1500-opc-ua-server?dti=0&lc=en-ZA
As of firmware 2.0 of SIMATIC S7-1500 an integrated OPC UA Server has been added to the control system. This enables an additional option of direct process data exchange of the SIMATIC S7‑1500 with a wide variety of other systems that support OPC UA.

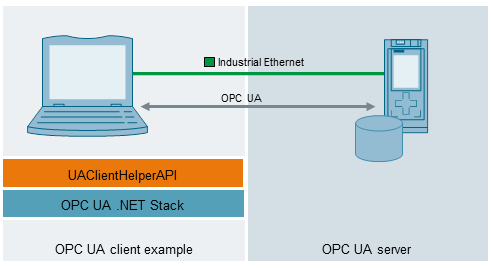

The SIMATIC S7-1500 OPC UA server is planned and configured via the TIA Portal. The OPC UA Client is created in C# / .NET and internally uses the freely accessible OPC UA .NET stack of the OPC foundation. For easier individual implementations of a .NET client the “UAClientHelperAPI” C# class is included in delivery. This class summarizes the basic functions of the .NET stack of the OPC Foundation and considerably facilitates the use of the basic functions for you. Client and server are connected via Ethernet and communicate through OPC UA via TCP/IP.
The client supports the following functions:
Searching and finding server:
Creating and ending sessions
Navigating in the address space
Reading and writing tags and attributes
Subscribing tags
https://support.industry.siemens.com/cs/attachments/109737901/109737901_OPC_UA_Client_S7-1500_DOKU_V10_en.pdf
https://support.industry.siemens.com/cs/attachments/109737901/109737901_OPC_UA_Client_S7-1500_CODE_V10.zip
Download of the OPC UA .NET stacks incl. the Sample Applications of the OPC Foundation
https://opcfoundation.org/developer-tools/developer-kits-unified-architecture/net-stack-and-sample-applications/OPCFoundation/UA-.NET
Download of the Sample Applications of the OPC Foundation
https://opcfoundation.org/developer-tools/developer-kits-unified-architecture/sample-applications/
or
.NET Stack and Sample Applications
This code base is available as an open source project on GitHub. This allows OPC UA to be used for trial applications, prototypes, or research projects by non-members.
https://github.com/OPCFoundation/UA-.NET/releases
[URL=https://userscloud.com/g5dqijvxiet3]opc-ua-1.02-.net-sample-applications-setup-336.0-20150630.zip - 15.4 MB[/URL]
[URL=https://userscloud.com/tq2ypc63xwr8]opc-ua-part-8-dataaccess-1.03-specification-20150720.zip - 1.4 MB[/URL]
[URL=https://userscloud.com/81zpg657axd2]opc-ua-part-9-alarms-and-conditions-1.03-specification-20160304.zip - 1.4 MB[/URL]
[URL=https://userscloud.com/rp40c71q1aq8]opc-ua-part-11-historical-access-1.02-specification.zip - 1.0 MB[/URL]
[URL=https://userscloud.com/qw55uz2y3ubw]opc-ua-part-11-historical-access-1.03-specification-20151222.zip - 989 KB[/URL]
[URL=https://userscloud.com/85p37q6cms48]UA-.NET-1.02.336.zip - 38.7 MB[/URL]
[URL=https://userscloud.com/e8krtdqmb1ha]UA-.NET-1.03.340.zip - 38.9 MB[/URL]
[URL=https://userscloud.com/iyhrfj1m3rbo]opc-ua-1.02-.net-stackandsamples-335.0-20141219.zip - 30.1 MB[/URL]
[URL=https://userscloud.com/gf4nxk3f1rml]opc-ua-1.02-.net-stackandsamples-336.0-20150707.zip - 30.1 MB[/URL] |
|
| Back to top |
|
 |
kama
Member 2
Joined: 08 Dec 2016
Posts: 427
|
| Posted: 22/06/2017 09:23 Post subject: OPC UA .NET Client for the SIMATIC S7-1500 OPC UA Server |
|
|
OPC UA .NET Client for the SIMATIC S7-1500 OPC UA Server
https://support.industry.siemens.com/cs/document/109737901/opc-ua-net-client-for-the-simatic-s7-1500-opc-ua-server?dti=0&pnid=13613&lc=en-US
Download Project for STEP 7 V14 and Visual Studio (5,7 MB)
https://support.industry.siemens.com/cs/attachments/109737901/109737901_OPC_UA_Client_S7-1500_DOKU_V11_en.pdf
https://support.industry.siemens.com/cs/attachments/109737901/109737901_OPC_UA_Client_S7-1500_CODE_V11.zip |
|
| Back to top |
|
|
grig100
Member 3
Joined: 01 Jan 2015
Posts: 752
|
| Posted: 06/07/2018 15:33 Post subject: OPC UA .NET Client with C# for the SIMATIC NET OPC UA Server |
|
|
OPC UA .NET Client with C# for the SIMATIC NET OPC UA Server
https://support.industry.siemens.com/cs/document/42014088/
Using the SIMATIC NET OPC UA server as gateway, you can access your controllers via OPC UA. OPC UA enables inter-manufacturer communication as well as easy connection to the MES / ERP level.
To realize a data link between a controller and a PC system, standardized mechanisms are preferably used to ensure that such a data exchange remains independent of the used bus system or protocol or even manufacturer. OPC UA combines this functionality and additionally offers authentication and encrypted data transmission and advanced diagnostic information. In this example, the OPC UA Server is to be considered as an information server. The core task of this example is secure access to process data via the new OPC UA interface of the SIMATIC NET OPC Server.
The OPC UA Client in the PC station is realized at two levels of complexity. A client whose estetică is very simple (Simple OPC UA Client) shows you all basic functions and introduces you to OPC UA. A more complex client (OPC UA .NET Client) with a convenient user interface demonstrates professional OPC UA handling with reusable classes realized in .NET in the C# programming language.
The figure below shows the hardware configuration of this example:
Picture 01
The following scenarios are explained in terms of software in both sample clients:
Logging on to, logging off from and authentication on the OPC UA Server
Browsing the namespace of variables
Reading, writing and monitoring variables
Reading and writing when using S7 block services
Using absolute and symbolic addressing
Easy error handling
The more complex OPC UA Client example additionally includes field-proven classes and controls in .NET, intended to facilitate programming of individual OPC UA Clients. For this purpose, the complex OPC UA .NET Client SDK methods are encapsulated in a client API that is easier to use.
Client user interfaces
Simple OPC UA Client user interface:
Picture 02
Advanced OPC UA Client user interface:
Downloads
https://support.industry.siemens.com/cs/attachments/42014088/42014088_OPC_UAClient_DOKU_V12_en.pdf
https://support.industry.siemens.com/cs/attachments/42014088/42014088_OPC_UAClient_CODE_V12.zip
Further Information
The following documents additionally deal with OPC-Client programming:
https://support.industry.siemens.com/cs/document/26548467/individual-programmed-signaling-system-based-on-the-simatic-net-opc-alarm-and-event-opc-ua-server
https://support.industry.siemens.com/cs/document/21523291/opc-communication-via-the-send-receive-protocol-with-a-visual-basic-.net-opc-client
https://support.industry.siemens.com/cs/document/21402169/using-the-xml-da-interface-of-the-simatic-net-opc-server-with-visual-basic-.net?lc=en-us
https://support.industry.siemens.com/cs/document/21495347/external-block-management-with-s7-block-management-services-of-the-simatic-net-opc-server
https://support.industry.siemens.com/cs/document/21447513/data-acquisition-and-storage-with-an-opc-client-in-c-and-the-simatic-net-.net-opc-client-api
https://support.industry.siemens.com/cs/document/21043779/programming-of-opc-da-.net-clients-with-c-for-the-simatic-net-opc-server- (com-dcom)
https://support.industry.siemens.com/cs/document/21040390/distributed-automation-with-the-pc-the-simatic-net-opc-server-as-profibus-dp-slave
https://support.industry.siemens.com/cs/document/21045282/controlling-with-the-pc-the-simatic-net-opc-inproc-server-as-dp-master
https://ulozto.net/tam/_NHaFznDWM9T6
https://ulozto.net/tam/_Ppf8ELyplhRU |
|
| Back to top |
|
|
orhanoz
Junior
Joined: 08 Aug 2018
Posts: 1
|
| Posted: 13/01/2019 15:19 Post subject: |
|
|
| project seems like protected where can i get the login information? |
|
| Back to top |
|
|
grig100
Member 3
Joined: 01 Jan 2015
Posts: 752
|
| Posted: 14/01/2019 23:25 Post subject: |
|
|
| read carefully documentation |
|
| Back to top |
|
|
|
