Network authentication with SIMATIC CP 1543-1
https://support.industry.siemens.com/cs/document/109821954/
The SIMATIC CP 1543-1 communication processor supports authentication on a secured network using IEEE 802.1X. As a result, SIMATIC S7-1500 controllers in a network can be authorized to access the network via the CP 1543-1 using IEEE 802.1X-compliant mechanisms.
The IEEE 802.1X standard is one suitable solution for checking the network for unauthorized access.
IEEE 802.1X adopts triple-A (AAA) services in dial-in networks:
Authentication
Authorization
Accounting of dial-in users

As of firmware version V3.0, the SIMATIC CP 1543-1 communication processor (for short: CP) supports authentication on a secured network using IEEE 802.1X.
In this application example, you will learn how to authorize a SIMATIC S7-1500 controller via the CP 1543-1 for access to the network using IEEE 802.1X and "RADIUS". The CP is connected to a port of a SCALANCE device. This port is subject to authorization and will only be activated after successful authentication of the CP. Authentication is done using certificates.

The infrastructure is implemented in this application example as follows:

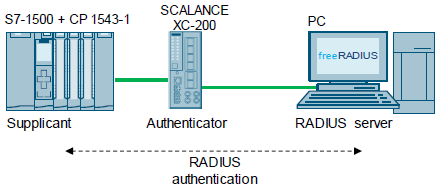

SIMATIC S7-1500 with a CP 1543-1 as supplicant
SCALANCE XC-200 as authenticator
