valz · Member 3 Joined: 26 Jul 2015 Posts: 771

Multi Fieldbus Configuration Tool (MFCT)
https://support.industry.siemens.com/cs/document/109773881/

The MultiFieldbus Configuration tool (MFCT) supports the configuration of MultiFieldbus devices and DALI devices. It also offers convenient options for bulk firmware updates of ET 200 devices with MultiFieldbus support.

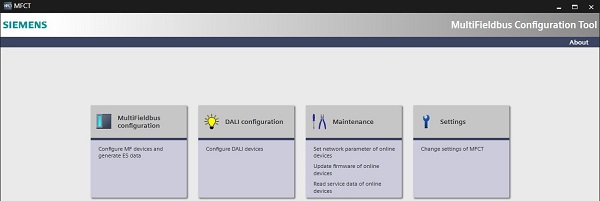

Multi Fieldbus Configuration Tool (MFCT) Multi Fieldbus Configuration Tool (MFCT)

Multi Fieldbus Configuration Tool (MFCT) Multi Fieldbus Configuration Tool (MFCT)

Three steps are required to configure MultiFieldbus devices:
Configure station (configure and assign parameters, comparable with TIA Portal HW Config).
Transfer project to device (ET 200SP Interface Module IM155-6MF HF and PN/MF coupler)
Configure device in the Engineering System of the EtherNet/IP or Modbus TCP controllers (address assignment). The MFCT provides the project files required.

Functional scope
Version V1.4.1 offers the following additional features compare to V1.4.0

Additional functionality of DALI configurator
Display of event massages from DALI sensors
addressing and parameterization of DALI sensors
identify and resolve of address conflicts
sned of broadcast commands
project export as *.csv file
optimization of status display
Support of redundant interface module IM 155-6 PN R1

System requirements
The MFCT runs on Windows 10. Start-up is possible without installation. Administrator rights are not required.

Download
https://support.industry.siemens.com/cs/attachments/109773881/MFCT_1_4_1_0.zip

https://ulozto.net/file/v49PayK0eQfN/mfct-1-4-1-0-zip

mamiko · Member 2 Joined: 25 Dec 2017 Posts: 420

Multi Fieldbus Configuration Tool (MFCT)
https://support.industry.siemens.com/cs/document/109773881/
The MultiFieldbus Configuration tool (MFCT) supports the configuration of MultiFieldbus devices and DALI devices. It also offers convenient options for bulk firmware updates of ET 200 devices with MultiFieldbus support.

Functional scope
Version V1.5.0 offers the following new features in addition to version V 1.4.1:
Support of IO module TM Fast
Extended functionalities for IO module CM DALI
Running light check
Expert mode for sending commands
Additional settings

System requirements
The MFCT runs on Windows 10. Start-up is possible without installation. Administrator rights are not required.
Download
https://support.industry.siemens.com/cs/attachments/109773881/MFCT_1_5_0_0.zip

https://ulozto.net/file/sehW7vqb8SoP/mfct-1-5-0-0-zip

[URL=https://www.file-upload.net/download-15136514/MFCT_1_5_0_0.zip.html]MFCT_1_5_0_0.zip[/URL]
