MTP (Module Type Package) Interface for Tempered Mixed Device with Machine Proxy for Industrial Edge
https://support.industry.siemens.com/cs/document/109824432/
Module Type Package (MTP) according to standard series VDI/VDE/NAMUR 2658 provides solution for modular production and effortless commissioning of new modules into process lines.
Siemens provides several solutions to make your machine/equipment MTP compliant. If it is possible to re-engineer PLC, then usage of MTP compliant Libraries (SIMATIC CFL or SIMATIC PFL) in combination with SIMATIC MTP Creator could be right solution. However, if it is not possible to natively implement MTP compliant components on the PLC level you can use Industrial Edge Device with Machine Proxy App to provide the OPC UA server based

MTP (Module Type Package) Interface MTP (Module Type Package) Interface

MTP (Module Type Package) Interface MTP (Module Type Package) Interface

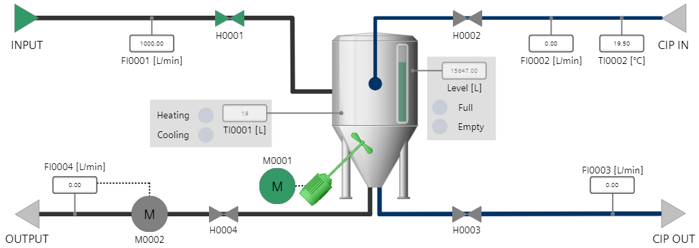

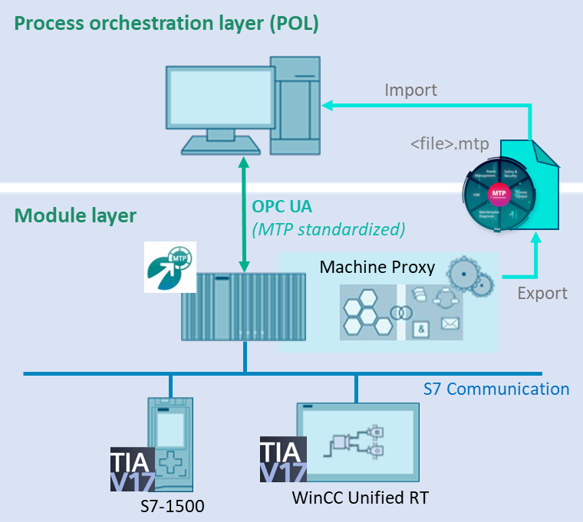

The application example project demonstrates the practical usage of Machine Proxy App Providing MTP interface for non-MTP Tempered Mixer module. The unit is controlled by SIMATIC S7-1500 PLC and has WinCC Unified HMI. The PLC can be connected to the Industrial Edge Device, where the mapping and MTP interface engineering is done to elevate the machine to be MTP compliancy. The Tempered Mixer module offers 3 automated programs: Rinse, Production, and Disinfection. It can be controlled from WinCC Unified RT and the TIA Portal project implements also process values simulation, therefore it can be run and operated as a demonstrator with no further simulation software.
