Modeling the S7-1200 OPC UA Server interface in TIA Portal
https://support.industry.siemens.com/cs/document/109781701/
OPC UA communication is supported on S7-1200 CPUs with firmware version 4.4 or higher. The CPU enables data access by supporting configuration as an OPC UA Server. The S7-1200 OPC UA Server does not support the standard SIMATIC server interface. The PLC tags are made visible for OPC UA clients via a modeled S7-1200 OPC UA server interface.
In this example, the OPC UA Client "UaExpert" communicates directly with the SIMATIC S7-1200 OPC UA Server. Client and server are connected via Ethernet and communicate with OPC UA over TCP/IP.

To approve the OPC UA Client "UaExpert" for read and write access to certain PLC tags of the S7-1200 CPU, these variables must be enabled for OPC UA.
The following functions are implemented in the application example:
Configuration of the SIMATIC S7-1200 OPC UA Server.
Modeling of the S7-1200 OPC UA Server interface for accessing the OPC UA Clients to certain PLC tags.
Display of the data in the OPC UA Client "UaExpert".

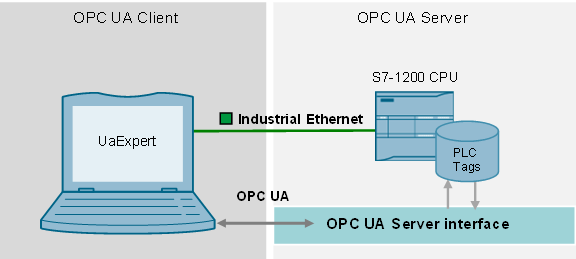

The following graphic shows the configuration scenario that is implemented in this example.
Modeling the S7-1200 OPC UA Server interface in TIA Portal Modeling the S7-1200 OPC UA Server interface in TIA Portal

Modeling the S7-1200 OPC UA Server interface in TIA Portal Modeling the S7-1200 OPC UA Server interface in TIA Portal

This application example can also be used as a basis for modeling the OPC UA Server interface of an S7-1500 CPU from V2.6.
https://support.industry.siemens.com/cs/attachments/109781701/109781701_S7_1200_OPC_UA_Server_DOCU_V10_en.pdf
https://support.industry.siemens.com/cs/attachments/109781701/109781701_S7_1200_OPC_UA_Server_PROJ_V10.zip

https://anonfiles.com/D75dG5r2p3/109781701_S7_1200_OPC_UA_Server_PROJ_V10_zip
https://anonfiles.com/Fb5eG5rbp3/109781701_S7_1200_OPC_UA_Server_DOCU_V10_en_pdf

[url=http://www.girlshare.ro/3769987696.2]109781701_S7_1200_OPC_UA_Server_DOCU_V10_en.pdf[/url]
[url=http://www.girlshare.ro/3769987698.4]109781701_S7_1200_OPC_UA_Server_PROJ_V10.zip[/url]

AutoKal · Member junior Joined: 29 Dec 2015 Posts: 105

I need the editor itself, anyone please post it somewhere to download.

Thanks

ALooser · Junior 2 Joined: 26 Oct 2018 Posts: 37

https://www.unified-automation.com/downloads/opc-ua-development.html

https://www.unified-automation.com/products/development-tools/uaexpert.html

https://www.unified-automation.com/downloads/opc-ua-development/file/download/details/opc-ua-clientserver-sdk-bundle-v702-for-delphi.html

https://www.unified-automation.com/downloads/opc-ua-development/file/download/details/uamodeler-v165.html

https://www.unified-automation.com/downloads/opc-ua-development/file/download/details/net-based-opc-ua-clientserver-sdk-bundle-v306.html
https://www.unified-automation.com/downloads/opc-ua-development/file/download/details/high-performance-opc-ua-clientserver-sdk-bundle-v150.html

https://www.unified-automation.com/downloads/opc-ua-development/file/download/details/c-based-opc-ua-clientserver-sdk-pubsub-bundle-v173.html

https://www.unified-automation.com/downloads/opc-ua-development/file/download/details/ansi-c-based-opc-ua-clientserver-sdk-pubsub-bundle-v191.html

https://www.unified-automation.com/downloads/opc-ua-development/file/download/details/c-based-opc-ua-clientserver-sdk-pubsub-bundle-v173.html

Siemens OPC UA Modeling Editor (SiOME) for implementing OPC UA companion specifications
https://support.industry.siemens.com/cs/document/109755133/siemens-opc-ua-modeling-editor- (siome)-for-implementing-opc-ua-companion-specifications

https://anonfiles.com/v5K62dv4p3/GettingStarted_pdf
https://anonfiles.com/RfKe2dvep7/uamodeler-bin-win32-x86-vs2008sp1-1.6.5-472_zip
https://anonfiles.com/b8L127vcp5/uasdkhpbundle-bin-EVAL-win32-x86-vs2017-v1.5.0-296_zip
https://anonfiles.com/bfMb2cv6pe/uasdknetbundle-bin-EVAL-win32-x86-vs2017-v3.0.6-477_zip
https://anonfiles.com/nbMb22vcp4/uasdkcppbundlepubsub-bin-EVAL-win32-x86-vs2015-v1.7.3-505_zip
https://anonfiles.com/xbM32cvcpd/uasdkcppbundlepubsub-bin-EVAL-win64-x86_64-vs2015-v1.7.3-505_zip
https://anonfiles.com/F3M523vepe/uasdkdelphibundle-bin-EVAL-x64-DC10.2tokyo-v7.0.2-712_zip
https://anonfiles.com/JfM024v2p9/uasdkdelphibundle-bin-EVAL-x64-DC10.3rio-v7.0.2-712_zip

https://anonfiles.com/X3P321v9pe/109755133_SiOME_XML_V21_zip
https://anonfiles.com/b3Q72cv4pb/109781701_S7_1200_OPC_UA_Server_PROJ_V10_zip
https://anonfiles.com/f4Q12evep2/109755133_SiOME_DOC_V21_en_pdf
https://anonfiles.com/h1Q42cvbp7/109781701_S7_1200_OPC_UA_Server_DOCU_V10_en_pdf
https://anonfiles.com/j1Qa25v9p6/109755133_SiOME_PROJ_V21_zip
https://anonfiles.com/l6Q623vap3/109755133_SiOME_MAN_V22_en_pdf
https://anonfiles.com/92Qd29vapc/109755133_SiOME_CODE_V22_zip
