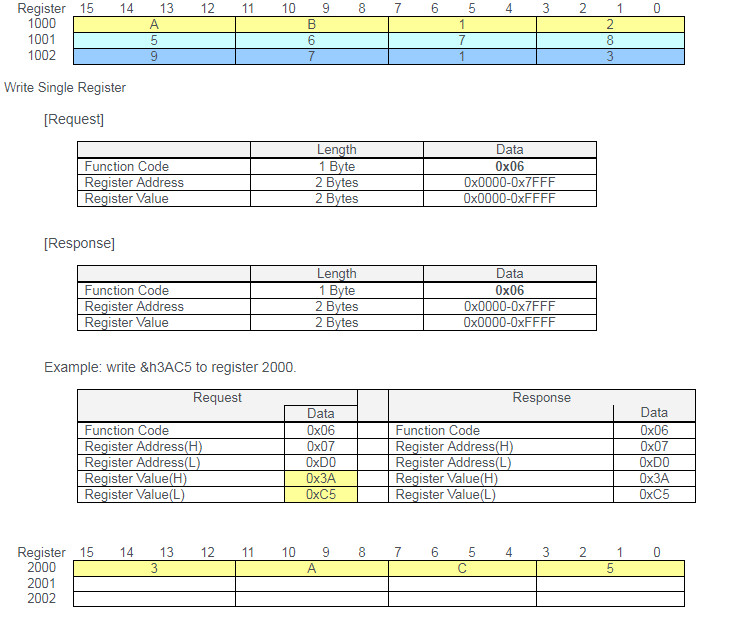

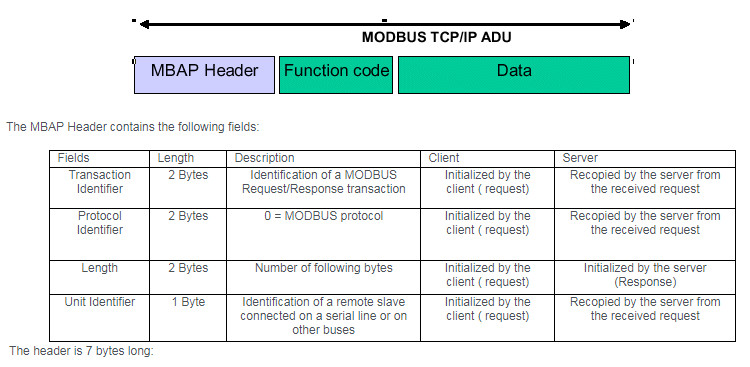

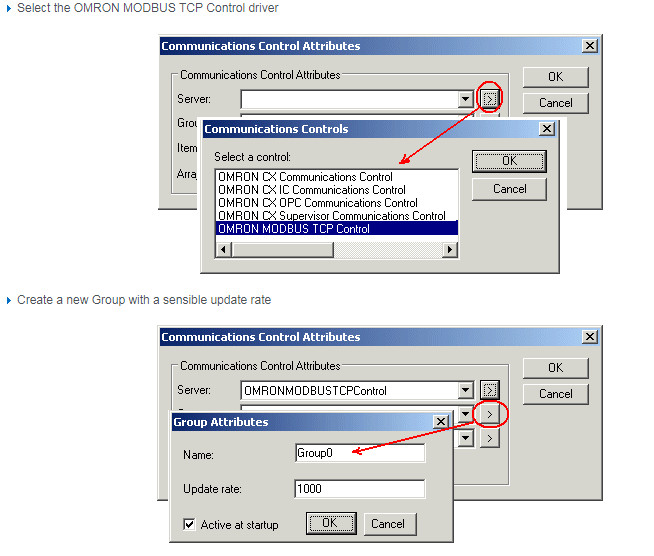

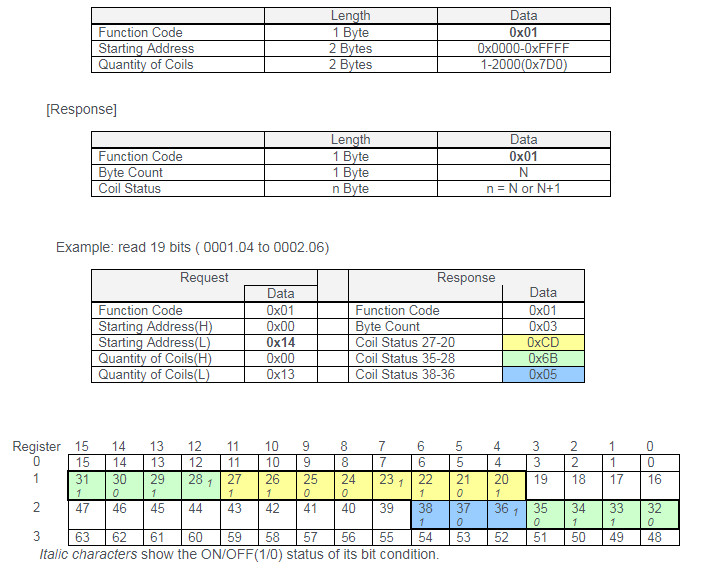

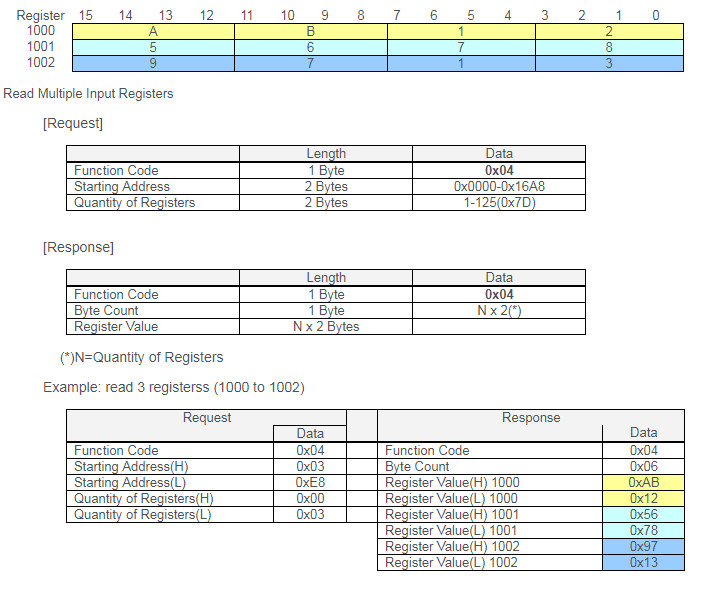

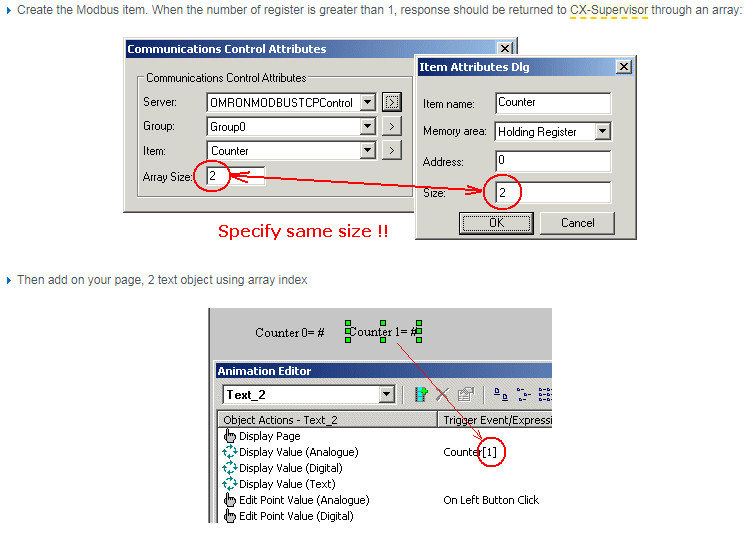

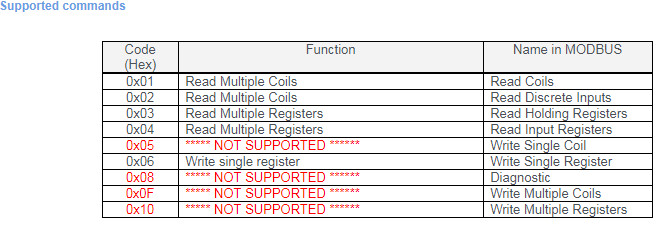

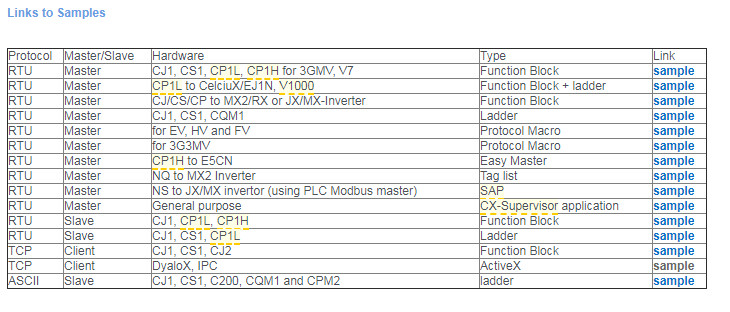

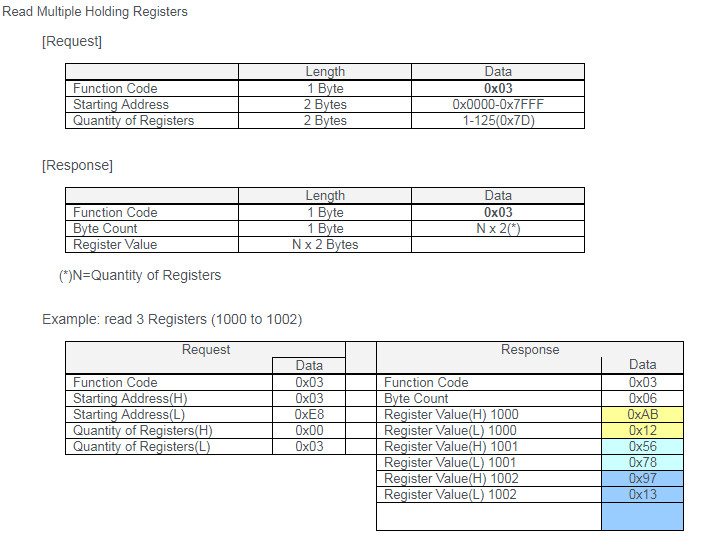

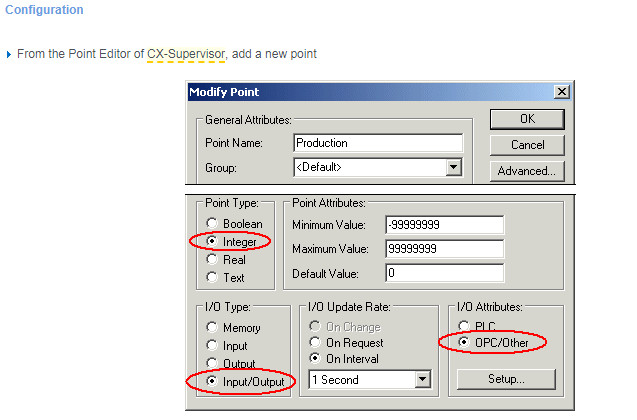

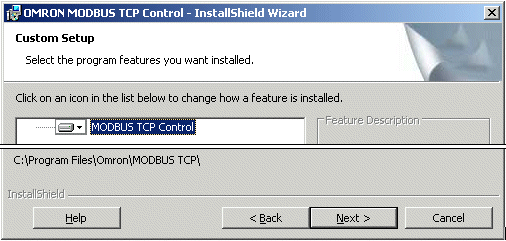

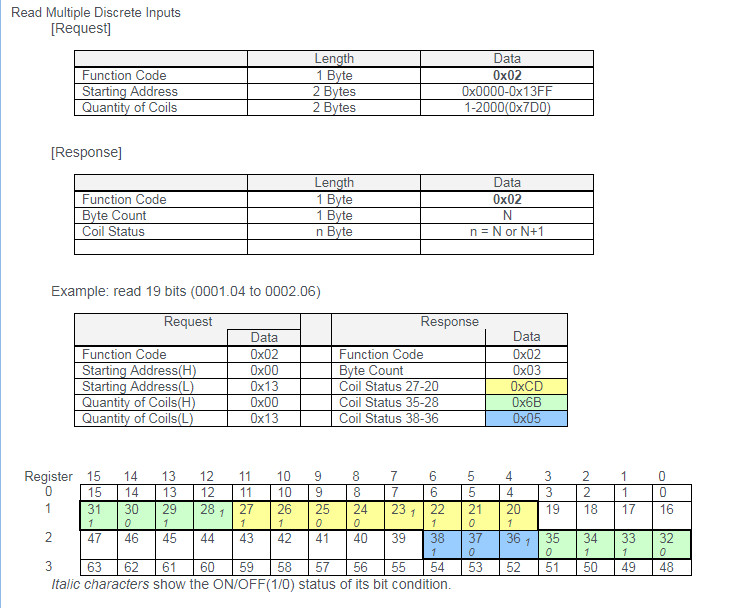

plc.myforum.ro PLCs users www.plc.myforum.ro!    FAQ   Search   Memberlist   Usergroups   Register   Profile   Log in to check your private messages   Log in  Modbus OMRON          plc.myforum.ro Forum Index -> OMRON Reg. U View previous topic :: View next topic   Author Message Q895 Junior Joined: 31 Dec 2018 Posts: 5 Posted: 29/03/2019 13:28    Post subject: Modbus OMRON The Modbus TCP Control is available for free to registered CX-Supervisor, CX-Server Lite and CX-Server OPC customers. It can be downloaded from the Software Downloads section on the Omron Europe web site. Once downloaded, run the setup.exe file then restart the computer. 2. Modbus TCP Frame Format MBAP Header description A dedicated header is used on TCP/IP to identify the MODBUS Application Data Unit. It is called the MBAP header (MODBUS Application Protocol header). This header provides some differences compared to the MODBUS RTU application data unit used on serial line: The MODBUS ‘ slave address’ field usually used on MODBUS Serial Line is replaced by a single byte ‘ Unit Identifier’ within the MBAP Header. The ‘ Unit Identifier’ is used to communicate via devices such as bridges, routers and gateways that use a single IP address to support multiple independent MODBUS end units. All MODBUS requests and responses are designed in such a way that the recipient can verify that a message is finished. For function codes where the MODBUS PDU has a fixed length, the function code alone is sufficient. For function codes carrying a variable amount of data in the request or response, the data field includes a byte count. When MODBUS is carried over TCP, additional length information is carried in the MBAP header to allow the recipient to recognize message boundaries even if the message has been split into numeroase packets for transmission. The existence of explicit and implicit length rules, and use of a CRC-32 error check code (on Ethernet) results in an infinitesimal chance of undetected corruption to a request or response message. Transaction Identifier - It is used for transaction pairing, the MODBUS server copies in the response the transaction identifier of the request Protocol Identifier – It is used for intra-system multiplexing. The MODBUS protocol is identified by the value 0 Length - The length field is a byte count of the following fields, including the Unit Identifier and data fields Unit Identifier – This field is used for intra-system routing purpose. It is typically used to communicate to a MODBUS or a MODBUS+ serial line slave through a gateway between an Ethernet TCP-IP network and a MODBUS serial line. This field is set by the MODBUS Client in the request and must be returned with the same value in the response by the server All Modbus/TCP ADU are sent via TCP on registered port 502. Function Code Read Multiple Coils [Request] http://www.modbus.org/docs/Modbus_Messaging_Implementation_Guide_V1_0b.pdf The couplers CJ1W-SCU and CS1W-SCU (V1.3) have Modbus slave driver and support the following modbus commands: Code: 01, 02 reading bit multiples (IOC) 03 reading records (DM) 04 reading words I / O IOC 05 writing bit 06 write single register (DM) 08 test echo 0F writing multiple bit 10 writing multiple registers The instruction applied to CMND cards SCU mode gateway can generate the Modbus master. Function Blocks For MODBUS Communication With The 3G3MV and V7. https://anonfile.com/j8K6w7V6m3/Modbus_Read_Status_MV_cxf https://anonfile.com/l4K9waVbm5/Modbus_Write_EEPROM_MV_cxf https://anonfile.com/k7K0w2Vamf/Modbus_Write_Parameter_cxf https://anonfile.com/n9KdwfV8mf/Modbus_Set_Multispeed_MV_cxf https://anonfile.com/m8K1w4V6m7/Modbus_Read_Parameter_cxf https://anonfile.com/q2Kaw5V0m0/fb_modbus_v11_CJ1_cxp https://anonfile.com/rfK5wfVfm4/Modbus_Fault_Reset_cxf https://anonfile.com/s3K8wfV3m9/Modbus_MoveVelocityHz_cxf Connecting EJ1N And CP1L In Modbus https://anonfile.com/QfNcw9Vdm7/Modbus_Write_Parameter_cxf https://anonfile.com/XeN9w3V5m6/Progetto_zip Refresh-FB for Modbus communication CJ/CS with SCU or CP1 to MX2 and JX/MX-inverter Cable connections SCU (RS485 port) or CP1W-CIF11 MX2 2,8 SDB, RDB SDB+ SP 1,6 SDA, RDA SDA- SN CX-Programmer setup There is an example CX-Programmer project attached. If you already know the Function Block from the library called _INV002_Refresh, you will find that only some status bits are missing and the set frequency has to be changed to be transmitted. This version from July 2010 supports following inverters: MX2 and JX/MX . It is smaller than the original, but can handle all Modbus node numbers from 1 to 31 (31 întreg on one PLC port). The main difference is the improved error handling: If the communication is broken, Bit15 (error bit) is turned ON and all other status bits are turned OFF. The version from March 2010 had several changes compared to the version from November 2009. command bit 0 is always Forward Run, command bit 1 is always Reverse Run. It is possible to choose the type of inverter with FB-parameter ModelTypJX, a bit has to be set for every inverter address, which is JX or MX, like in the scan list; Bit = 1 means older type JX or MX Bit = 0 means type MX2 the FB is much smaller than the autentic from the library, you will have much more space left for the main program. Some status bits are not read out of a JX/MX (Bit 4 = Zero speed,Bit 10 = Under voltage) The original FBs from the library ParameterRead and ParameterWrite work with this version of Refresh-FB, but some dublu word parameters of JX cannot be accessed. You have to use new ReadNoParameter WriteNoParameter-FB. The example has been changed, to present a changed set frequency during run to the Refresh-FB. You should also set the SCUs port “Serial Gateway Response Time out” to e.g. 300ms CP1W-CIF11 setup Put all DIP switches to ON except DIP 4 = OFF (RS485 with termination) MX2 parameter settings Open manual I114-EN-01 and go to section B2. Here are the parameters that need to be set to make sure MX2 is able to communicate. Match the parameters of MX2 inverter to the settings in the PLC. After changing the settings recycle power of the MX2. If parameters are set properly, communication between PLC and MX2 is established. Set following settings in MX2 and cycle the power: A001: 3 Frequency source A002: 3 Run command source C071: 05 9600 bps C072: 1 Modbus address C074: 01 Even parity C075: 1 Stop bits https://anonfile.com/maSew0V4m9/INV401_WriteNoParameter_cxf https://anonfile.com/ncSdw9Vam4/RJ45_pins_to_connect_to_a_JX_inverter_pdf https://anonfile.com/oeSawbV4m7/INV_CP1LL_Refresh_X31_cxp https://anonfile.com/p4S2w7V0md/INV_CSH67FU_Refresh_X31_noRX_cxp https://anonfile.com/qcS2w3Vam7/INV401_WriteNoParameter_pdf https://anonfile.com/rfS5w7Vem1/INV201_ReadNoParameter_pdf https://anonfile.com/s3S3wbV8m4/INV201_ReadNoParameter_cxf https://anonfile.com/t5S8w8V3m3/INV002_Refresh_X31_cxf https://anonfile.com/v7ScwcVamb/INV002_Refresh_X31_pdf Master MODBUS RTU PLC CS1, CJ1 and CQM1 (H) (ladder) Modbus Master for CJ1, CS1 and CQM1 had been amended to correct this problem with reset of the DM. Attached is a Modbus program for CS1 and CJ1. The routine uses the same channels as the C200H-alpha bit version. The attached documentation is the same as for the existing versions. (file SYSMOD.DOC) https://anonfile.com/34U4waV6mb/Cqm1_m_v2_cxp https://anonfile.com/2cU1w0V4m0/crc_modbus_xls https://anonfile.com/41U4weV4m2/CS1_m_2_cxp https://anonfile.com/68U9waVfmb/INV_CSH67FU_Refresh_X31_noRX_cxp https://anonfile.com/18U4w1Vdmf/Crc_mem https://anonfile.com/57U5wdVfmd/CS1G_crc_mem Protocol Macro For ModBus https://anonfile.com/z2Ycw0V5m6/FVmodbus_psw https://anonfile.com/08Ybw3V0ma/modbus_RTU_psw https://anonfile.com/10Y3w7Vam9/ModBus_Master_1.0_EV_HV_FV_psw https://anonfile.com/33Y2weVbm8/FVmodb01_psw https://anonfile.com/4bYdw4V2ma/FV_HG63_psw https://anonfile.com/5bY6w9Vem7/FV-mod_psw https://anonfile.com/25cax2V7m9/modbusv00_psw https://anonfile.com/34c8x3V3md/COM06_ev1_doc https://anonfile.com/Aacax5V2m2/3C_Connection_of_CelciuX_direct_to_CP1L_doc https://anonfile.com/Dcc3x4V2m4/Sysmod_doc Modbus RTU Master Sample Code For CX-Supervisor This sample code shows a example of how to use the MSComm Microsoft ActiveX component to build a master using Modbus RTU protocol. https://i.postimg.cc/76H8rr6q/Modbus-Cx-Sup.jpg https://anonfile.com/i0j1xbVame/Modbus_RTU_zip Function Block Modbus RTU Slave (V2.2) Version 2.2 The function blocks in "ModbusSlave" attachment provide some of the Read/Write functionalities conformed to the specifications defined by Modbus-IDA: Supported functions : Code: 0x01   Read n bits in CIO area                Read Coils (V2) 0x02   Read n bit in CIO area                 Read Discrete Input (V2) 0x03   Read DM data memory                 Read Holding Registers 0x04   Read CIO                                    Read Input Registers 0x05   Write 1 bit in CIO area                 Write Single Coil 0x06   Write 1 word in DM area               Write Single Register 0x08   Echo back Test                            Echo Back Test 0x0F   ***** NOT SUPPORTED ******    Write Multiple Coils 0x10   Write multiple words DM               Write Multiple Registers Broadcast supported using slave n° 00 Supported CPU :    CJ1xx-V3 CP1H CP1L-L CP1L-M  Improvment: V2.1 fixe a communication problem when NT link was used on the second serial port V2.2 fixe the response "FFFF" sent when the slave No was incorrect https://anonfile.com/scm4xcV3m7/ModbusSlave_cxf https://anonfile.com/u2max9V5mf/ModbusSlave_E_pdf This sample program shows ladder for Modbus slave function code in Ladder for CP1L/CJ PLC https://anonfile.com/U1odxfVcme/ModbusPLC_V2_cxp Modbus TCP library - Client and Server https://anonfile.com/c4t5x3Vbm6/MTCP_CP1L_Server_zip https://anonfile.com/ebtdxcVfm3/MRTU_SCU_Master_zip https://anonfile.com/gbt4x8Vfme/MTCP_ETN_Client_zip https://anonfile.com/f8tbx0Vamb/MTCP_CP1L_Client_zip https://anonfile.com/i9t9x4V9m8/MRTU_CPU_Master_zip https://anonfile.com/j7t5x9V8m1/MTCP_ETN_Server_zip https://anonfile.com/kbt0xaV0m4/MTCP_NJ_zip https://anonfile.com/l0tbx5Vamf/MRTU_CPU_Slave_zip This is CX-Programmer example code to let a PLC perform like Modbus ASCII slave. There are several implementations of Modbus protocol. But many of them are Modbus RTU and the PLC functions as Master. There is code for different types of PLC like CJ1, CS1, C200, CQM1 and CPM2. https://anonfile.com/pbwex3Vcme/IA-SRV-PMCR503_Modbus_Slave_Ladder_zip modbus_tcp_driver_software https://anonfile.com/A5E7x9V7mf/modbus_tcp_driver_software_en_zip https://www.myomron.com/index.php?action=kb&article=1107 Back to top Q895 Junior Joined: 31 Dec 2018 Posts: 5 Posted: 29/03/2019 13:44    Post subject: https://anonfile.com/Mdgcy0Vcm7/TXD_RXD_zip https://anonfile.com/N0g9y8V7m8/ModbusPM_5.1_zip https://anonfile.com/O8g1yaV9m3/RFID_Combo_zip https://anonfile.com/Qag7y0Vcmd/ASCII_Generic_zip https://anonfile.com/U5g5ydVcm0/Modbus_TCP_FB_zip https://anonfile.com/V2gcy9Vcm8/Modbus_Protocol_Section_13_pdf https://anonfile.com/X5g5y4Vdm2/InverterRefresh_zip https://anonfile.com/Zfg7ycVfm3/Modbus_New_V5_1_zip https://anonfile.com/a4h1yeV0md/IA-SRV-PMCR503_Modbus_Slave_Ladder_zip https://anonfile.com/b8hbycVema/Modbus_Slave_Ladder_zip https://anonfile.com/c9h7y4V2m6/FINS_Ethernet_Master_Slave_Solution_V1.10_zip https://anonfile.com/fbh3y0V4m3/CP1LCP1HCJ1CJ2CS1ModbusSolutionV212_zip https://anonfile.com/40i9y0Vcm7/CX_Programmer_Ver.3_Introduction_Guide_R104_E1_01_pdf Back to top Q895 Junior Joined: 31 Dec 2018 Posts: 5 Posted: 29/03/2019 14:12    Post subject: https://www.myomron.com/index.php?action=kb&article=1480 https://www.myomron.com/index.php?action=kb&article=1479 https://www.myomron.com/index.php?action=kb&article=1481 https://www.myomron.com/index.php?action=kb&article=1482 https://www.myomron.com/index.php?action=kb&article=1566 https://www.myomron.com/index.php?action=kb&article=1543 https://www.myomron.com/index.php?action=kb&article=561 https://www.myomron.com/index.php?action=kb&article=450 https://www.myomron.com/index.php?action=kb&article=1147 https://www.myomron.com/index.php?action=kb&article=1205 https://www.myomron.com/index.php?action=kb&article=1319 https://www.myomron.com/index.php?action=kb&article=1328 https://www.myomron.com/index.php?action=kb&article=1396 https://www.myomron.com/index.php?action=kb&article=1372 https://www.myomron.com/index.php?action=kb&article=1422 Back to top alencknovi Junior Joined: 17 Apr 2017 Posts: 6 Posted: 04/04/2019 14:18    Post subject: CX-MODBUS TCP Everything is here but the thing that i need is cx modbus tcp software. Activex control if you have. Back to top Display posts from previous:  Oldest FirstNewest First         plc.myforum.ro Forum Index -> OMRON Reg. U All times are GMT + 2 Hours Page 1 of 1   Jump to: Select a forum PLC's Users International Forum----------------Board RulesPLC TutorialsSIMATIC Automation Systems -Reg.USimatic Automation SystemsLinksGE Fanuc Emerson Reg. UGE Fanuc Emerson ALLEN-BRADLEY(Rockwell Automation) Reg. UALLEN-BRADLEY(Rockwell Automation)OMRON Reg. UOMRONHONEYWELLSchneider_Electric Reg. USchneider ElectricOther PLCs Reg. UOther PLCsSIEMENS SIMATIC HMI- Reg. USIEMENS SIMATIC HMIOther HMI-Reg. UOther HMICNC & Robotics-Reg. UCNC & RoboticsProgramming Reg. UProgrammingAutoCAD Reg. UAutoCADRenewable EnergyBuilding Technology ManagementPLC BooksCables, Sensors,Transducers ...Drives & InvertersSiemens Hardware & SoftwareSafety Military & AerospaceUtilitiesFAQs & NewsJobsDisclaimer Romanian Users Forum----------------ROSIEMENS SIMATIC Automation SystemsROSIEMENS SIMATIC HMIROSimatic ROther PLCsROther HMIBooksROCADRUtilitieseLearningSimulatorsApplication Examples  You cannot post new topics in this forum You cannot reply to topics in this forum You cannot edit your posts in this forum You cannot delete your posts in this forum You cannot vote in polls in this forum Powered by phpBB © 2001, 2005 phpBB Group Fa-ti si tu propriul forum GRATUIT, pe www.myforum.ro
