MC Client – exchanging process data with Mitsubishi control systems
https://support.industry.siemens.com/cs/document/109813439/
With the help of a function block, a SIMATIC S7-1500/1200 controller can access process values of a Mitsubishi control system as MC client.
With the “LCCF_MCClient” function block a user can establish a connection to a directly accessible Mitsubishi Automation controller system. Once enabled the function block will automatically contact the Mitsubishi Automation controller. It establishes a TCP/IP connection and negotiates a single communication session per sever port.
Due the tag definition all parameterized process tags will be exchanged with the Mitsubishi Automation controller. Hereby the “LCCF_MCClient” block executes both Reading and Writing requests within a single request. For this the MC client utilizes one TCP connection.

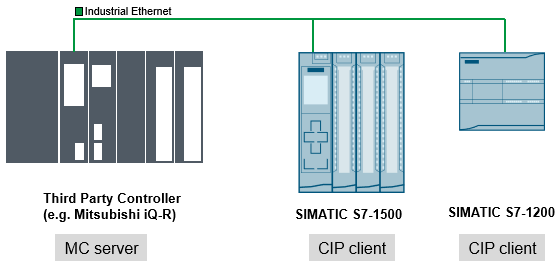

Mitsubishi MC Client SIMATIC S7-1500/1200 Mitsubishi MC Client SIMATIC S7-1500/1200

Mitsubishi MC Client SIMATIC S7-1500/1200 Mitsubishi MC Client SIMATIC S7-1500/1200

Downloads
https://support.industry.siemens.com/cs/attachments/109813439/109813439_MC_Client_V1.0_en.pdf
https://support.industry.siemens.com/cs/attachments/109813439/109813439_MCClient_Example_ProjectV15.1_V1.0.zip
https://support.industry.siemens.com/cs/attachments/109813439/109813439_MCClient_Example_ProjectV16_V1.0.zip
https://support.industry.siemens.com/cs/attachments/109813439/109813439_LCCF_MC_Client_LibraryV15.1_V1.0.zip
https://support.industry.siemens.com/cs/attachments/109813439/109813439_LCCF_MC_Client_LibraryV16_V1.0.zip
https://support.industry.siemens.com/cs/attachments/109813439/109813439_MCClient_V16_Add-In_V1.0.zip

https://ulozto.net/tamhle/gRQkFrTMHvO4/
