 Posted: 13/03/2023 19:13 Post subject: Machine Template for SIMATIC S7 & WinCC Unified v18 |
 |
|
Machine Template for SIMATIC S7 & WinCC Unified
https://support.industry.siemens.com/cs/document/109817223/

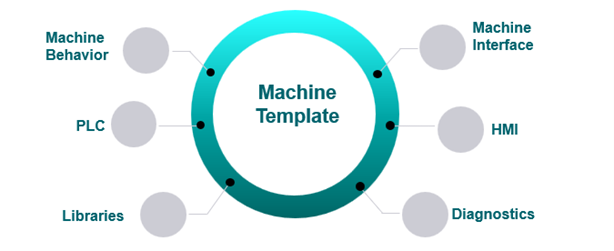

The Machine Template is a TIA Portal project for the machine builders to implement a modular automation program. The Machine Template provides the basic usability with a standardized interface to control the machine and display the status, not only with local HMI but also with higher level IT systems.
The ISA-88 model is an important foundation for the modular programming structure of production machines. The Machine Template based on ISA-88 covers the physical tip from the unit level through the equipment module to the control module level, as these are the essential components of a PLC controlled production machine.
Key features
| Code: | This Machine Template contains the following features:
PLC and HMI based on a modular structure
Machine Interface
Simple integration of existing standardized Libraries
Standardized communication based on OPC UA Server Interface
Example implementation of a mode state manager based on LPMLV Library
Diagnostics with ProDiag |
The Machine Template is available in two solution approaches:
Standard PLC Structure
PLC Structure based on Software Units
Requirements
TIA Portal V18 Update 1
SIMATIC STEP 7 Professional
SIMATIC S7-CPU
WinCC Unified Update 1
ProDiag (optional)
Documentation and Machine Template
https://support.industry.siemens.com/cs/attachments/109817223/109817223_MachineTemplate_DOC_V1_0_0_en.pdf
https://support.industry.siemens.com/cs/attachments/109817223/109817223_MachineTemplate_PROJ_V1_0_0.zip
[URL=https://www.file-upload.net/download-15111571/109817223_MachineTemplate_PROJ_V1_0_0.zip.html]109817223_MachineTemplate_PROJ_V1_0_0.zip[/URL]
[URL=https://www.file-upload.net/download-15111570/109817223_MachineTemplate_DOC_V1_0_0_en.pdf.html]109817223_MachineTemplate_DOC_V1_0_0_en.pdf[/URL]
https://ulozto.net/tamhle/vV4yEdXeOlSL/ |
|
