 Posted: 14/08/2019 14:35 Post subject: LMQTT Client for SIMATIC S7-CPU |
 |
|
FB "LMQTT_Client" for SIMATIC S7-CPU
https://support.industry.siemens.com/cs/document/109748872/fb-lmqtt_client-for-simatic-s7-cpu
The “Message Queue Telemetry Transport” is a simple protocol on TCP/IP level. It is suitable for messaging between devices with minimum functionality and for transmission via unreliable networks.
With the function block from the "LMQTT_Client" library, the MQTT protocol is implemented into a SIMATIC S7-1500 and SIMATIC S7-1200.
Lean and fast: MQTT
The “Message Queue Telemetry Transport” is a simply structured binary Publish/ Subscribe protocol on TCP/IP level. It is suitable for messaging between devices with minimum functionality and for transmission via unreliable networks with low bandwith and high latency. With these characteristics, MQTT plays a vital role for the IoT and in M2M communication.
Application-related implementation
The "LMQTT_Client" library provides you with one function block each for the S7-1500 CPU and S7-1200 CPU. The “LMQTT_Client” function block integrates the MQTT client function and allows you to transmit MQTT messages to a broker (publisher role) and to făcute subscriptions (subscriber role). In this, the communication can be secured via a TLS connection. You can reach the broker with a static ip address or a qualified domain name.

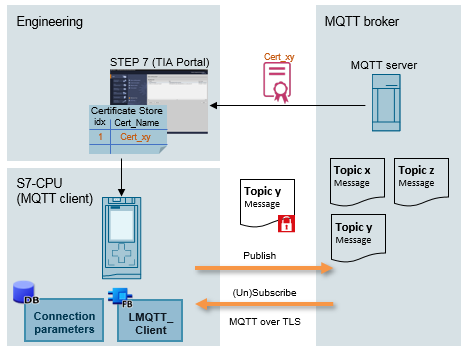

The following picture shows the secure mqtt-messaging with a SIMATIC S7-1500.
The MQTT protocol stands out with the following characteristics:
| Code: | Light-weight protocol with low transport overhead
Minimum requirement for network bandwith thanks to push mechanism
Function for re-connecting after disconnection
Re-sending messages after disconnection
Mechanism for notifying interested parties after an unpredicted disconnection of a client
Simple use and implementation thanks to a small set of commands
Quality of Service (QoS level) with different reliability levels for the message delivery
Optional encryption of messages via SSL/TLS
Authentification of publishers and subscribers via user name and password
|
Documentation and project example for an secure messaging (S7-1500, S7-1200)
https://support.industry.siemens.com/cs/attachments/109748872/109748872_MQTT_Client_DOKU_V2-0_en.pdf
https://support.industry.siemens.com/cs/attachments/109748872/LMQTT_Client.zip
In the archive you find the old "LMqtt_Publisher" function blocks for TIA Portal V15 with unencrypted messaging.
https://support.industry.siemens.com/cs/attachments/109748872/Archiv.zip |
|
| Back to top |
|
 |
grig100
Member 3
Joined: 01 Jan 2015
Posts: 752
|
| Posted: 25/03/2020 18:07 Post subject: |
|
|
FB "LMQTT_Client" for SIMATIC S7-CPU
https://support.industry.siemens.com/cs/document/109748872/
projects tia 15.1 16
https://ulozto.net/tamhle/PZUNE65i2YiQ
https://bayfiles.com/B7B841j4o7/LMQTT_Client_V2_2_V16_zip
https://bayfiles.com/FaB846jdo5/LMQTT_Client_V2_1_V15.1_zip
https://bayfiles.com/N3B046jfof/DEMO_LMQTT_Client_V16_zip
https://bayfiles.com/56C14fj7o8/Archiv_zip |
|
| Back to top |
|
|
gert
Member 3
Joined: 02 Jan 2015
Posts: 645
|
| Posted: 09/04/2020 16:12 Post subject: LMindConn MQTT library for S7-1500 CPUs and S7-1200 CPUs |
|
|
LMindConn MQTT library for S7-1500 CPUs and S7-1200 CPUs
https://support.industry.siemens.com/cs/document/109772284/
MindSphere is the cloud-based, open IoT operating system from Siemens. Using the "MindConnect IoT Extension" upgrade, it is possible to connect devices to MindSphere over MQTT.
In order to implement the MQTT protocol in a SIMATIC S7 CPU and transmit data to MindSphere, the library "LMindConn_MQTT" offers you an adequate solution.
The "LMindConn_MQTT" library provides you with function blocks for communication via the integrated PROFINET interface of S7-1500 CPUs and S7-1200 CPUs as well as for communication via CP 1243-1 and CP 1243-7 LTE. The functions blocks integrate the MQTT client function. It enables the following functions:
Transmitting MQTT messages to "MindConnect IoT Extension" (publisher role)
Receive messages from "MindConnect IoT Extension" (subscriber role)
The communication can be secured via a TLS connection.
https://openload.cc/b5kdQ6nfo4/LMindConn_MQTT_V15.1_zip
https://openload.cc/d3k0Q3n0o6/EDS-V1.3-Siemens-ET200SP-20200123.eds_zip
https://openload.cc/f3k1Qfn5o6/LMindConn_MQTT_V16_zip
https://openload.cc/nbkcQen7o9/LMindConn_MQTT_DemoTIAP_V15.1_zip
https://openload.cc/pdk4Q2n9of/109772284_LMindConn_MQTT_DOKU_1-0_en_pdf
https://openload.cc/z1k8Qfn7o3/LMindConn_MQTT_DemoTIAP_V16_zip
https://ulozto.net/tamhle/Qs5zP2yrMtBp |
|
