Klockner moeller PS306 (List -> Ladder)


Post new topic   Reply to topic    plc.myforum.ro Forum Index -> Other PLCs Reg. U
View previous topic :: View next topic
Author Message
tafikmechri
Junior
Junior


Joined: 30 Jul 2018
Posts: 1
Location: Tunisia
PostPosted: 03/07/2019 10:29    Post subject: Klockner moeller PS306 (List -> Ladder) Reply with quote
how to convert the network below in ladder :
L I 0.0
A '12.44
LN M 37.7
0 I2.0
A
0 M 0 . 1
LN Q 3.3
0 I 3.8
A
LN Q 3.4
0 1 3.9
A
LN M l .7
0 12.14
A
L M 10.8
0
AN M 4.12
AN M 10.9
AN M 12. 14
AN M 0.5
= Q 3.0
Back to top
View user's profile Send private message
agcnnkge
Junior
Junior


Joined: 21 May 2019
Posts: 2
PostPosted: 03/07/2019 19:07    Post subject: Reply with quote

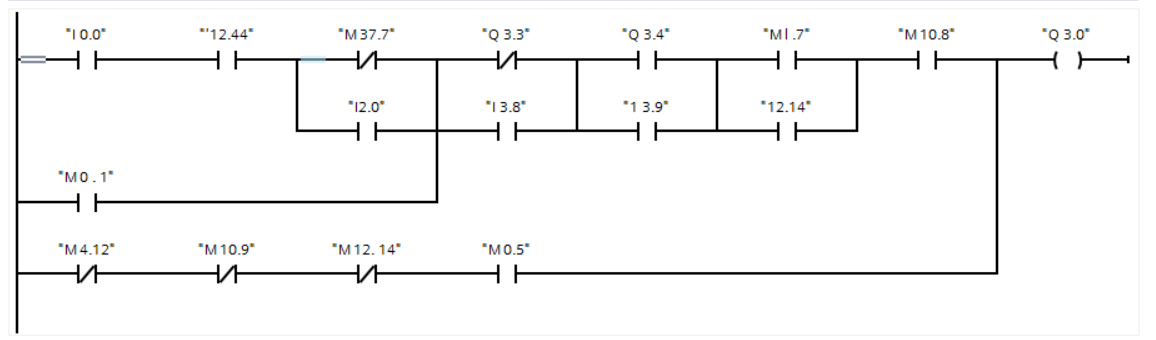

try this
Klockner moeller PS306 (List -> Ladder)
Back to top
View user's profile Send private message
