 Posted: 14/02/2019 23:09 Post subject: Joint Operation of WinCC V7 or WinCC V14/15 RT Prof. Softwar |
 |
|
Joint Operation of WinCC V7 or WinCC V14/15 RT Prof. and Software Controller
https://support.industry.siemens.com/cs/document/109750290/joint-operation-of-wincc-v7-or-wincc-v14-15-rt-prof-and-software-controller
Using WinCC V7.4 SP1/V14 SP1 or V15 and software controller S7-1507S jointly (on one station or separate stations).
Operation of WinCC with SoftPLC
The requirement is to set up a connection between WinCC V7.4 SP1 or V14 SP1/V15 Runtime Professional and the S7-1507S V2.1 software controller Two constellations are considered:
The visualization and the controller are located on separate PC stations.
The visualization and the controller are located on a joint PC station.
With this entry you receive a configuration instructions for each constellation. This configuration guide shows you how to set up a connection between WinCC and the S7-1507S V2.1 Software Controller . Here, you are guided through the required configurations step by step. Screenshots and notes also support you.

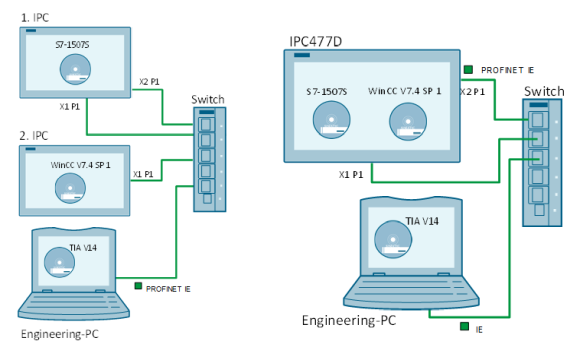

Hardware configuration exemplary for V7.4

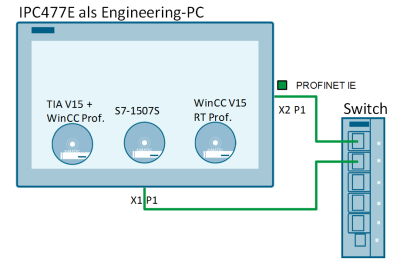

Hardware configuration as complete system exemplary for V15
WinCC V7 documentation
https://support.industry.siemens.com/cs/attachments/109750290/109750290_WinCC_V7_SoftPLC_1507S_Together_DOKU_V10_en.pdf
https://support.industry.siemens.com/cs/attachments/109750290/109750290_WinCC_V7_SoftPLC_1507S_Separate_DOKU_V10_en.pdf
WinCC V14 documentation
https://support.industry.siemens.com/cs/attachments/109750290/109750290_WinCC_V14_SP1_SoftPLC_1507S_Togehter_DOKU_en.pdf
https://support.industry.siemens.com/cs/attachments/109750290/109750290_WinCC_V14_SP1_SoftPLC_1507S_Separate_DOKU_en.pdf
WinCC V15 documentation
https://support.industry.siemens.com/cs/attachments/109750290/109750290_WinCC_V15_SoftPLC_1507S_Togehter_DOKU_en.pdf
https://support.industry.siemens.com/cs/attachments/109750290/109750290_WinCC_V15_SoftPLC_1507S_Separate_DOKU_en.pdf |
|
