Integrating HMI Operator Panels in TCP / IP Networks and Access to a NAS or shared Windows folder
https://support.industry.siemens.com/cs/document/92346478/

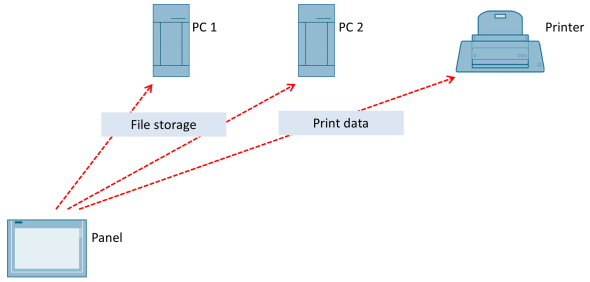

SIMATIC HMI operator panels offer the option to archive process values and to generate protocols / reports.
The aim is to archive this production data not locally on the individual panels, but on the following stations.

Centralized on a PC.
On several PCs.
On a Windows Server operating system.
On a file server (NAS hard drives).
The protocols are also printed directly out via a standard printer in the network.
Integrating HMI Operator Panels in TCP / IP Networks Integrating HMI Operator Panels in TCP / IP Networks

Integrating HMI Operator Panels in TCP / IP Networks Integrating HMI Operator Panels in TCP / IP Networks

1. Integrate HMI operator panels into network configurations
The HMI operator panels into four typical network configurations and what settings are respectively required on the following components.
on the panel
on the PC
at the router
on the printer
The following network configurations are described:
Default network
There is one joint network in which all nodes are linked to each other.
Separate networks
a) Two separate networks that are connected to each other via a router.
b) Just as (a) together with a WINS server.
c) Just as (a) together with a server operating system as well as a DNS server and a WINS server.
Documentation
https://support.industry.siemens.com/cs/attachments/92346478/92346478_tcp_ip_networks_panels_en.pdf

2. Settings for "folder shares" and "access protection" (NAS or shared Windows folders)

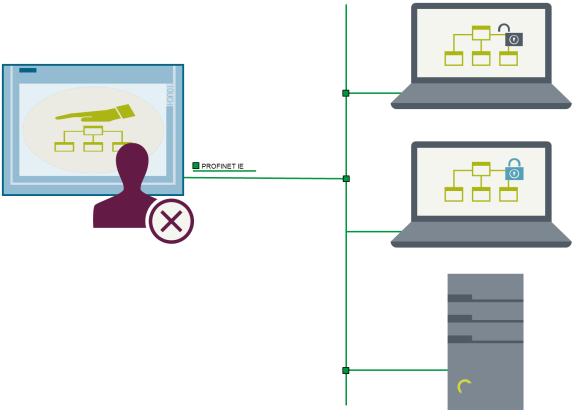

The second document describes the settings required for "folder shares" and "access protection" to access a higher-level file folder via network access from a panel.
For this, it is irrelevant whether it is a "Windows Server operating system" or a file server (NAS hard drives).
Integrating HMI Operator Panels in TCP / IP Networks Integrating HMI Operator Panels in TCP / IP Networks

The following topics are described in detail in the documentation:
Computer Management
Create users
Create groups
How to share a folder?
Get computer name and setup name of share
Settings on SIMATIC panels

Documentation
https://support.industry.siemens.com/cs/attachments/92346478/92346478_WinCC_TIA_Archiving_ServerNAS_en.pdf
