Alone
Junior
Joined: 13 Sep 2022
Posts: 2
|
 Posted: 13/09/2022 18:57 Post subject: ILC 171 with RESY104 Library |
 |
|
Hi guys.
I'm using RESY104 library for ILC 171. In Which ILC 171 works as IEC 60870-5-104 slave devices.
I have a doubt as following:
How many control system Can ILC 171 connect concurrently to?
Great day to all of you.
Best. |
|
| Back to top |
|
 |
dicenda
Junior
Joined: 01 Aug 2022
Posts: 2
|
| Posted: 14/09/2022 17:45 Post subject: Function blocks for Ethernet communication |
|
|
Function blocks for Ethernet communication
The function blocks are used to establish Ethernet communication between two communication
partners.
The IP communication blocks listed below enable IEC 61131-5-compliant communication
between controllers via Ethernet or communication between controllers and Ethernet devices
via TCP/IP or UDP/IP.
Implement all time and connection monitoring in the application program.

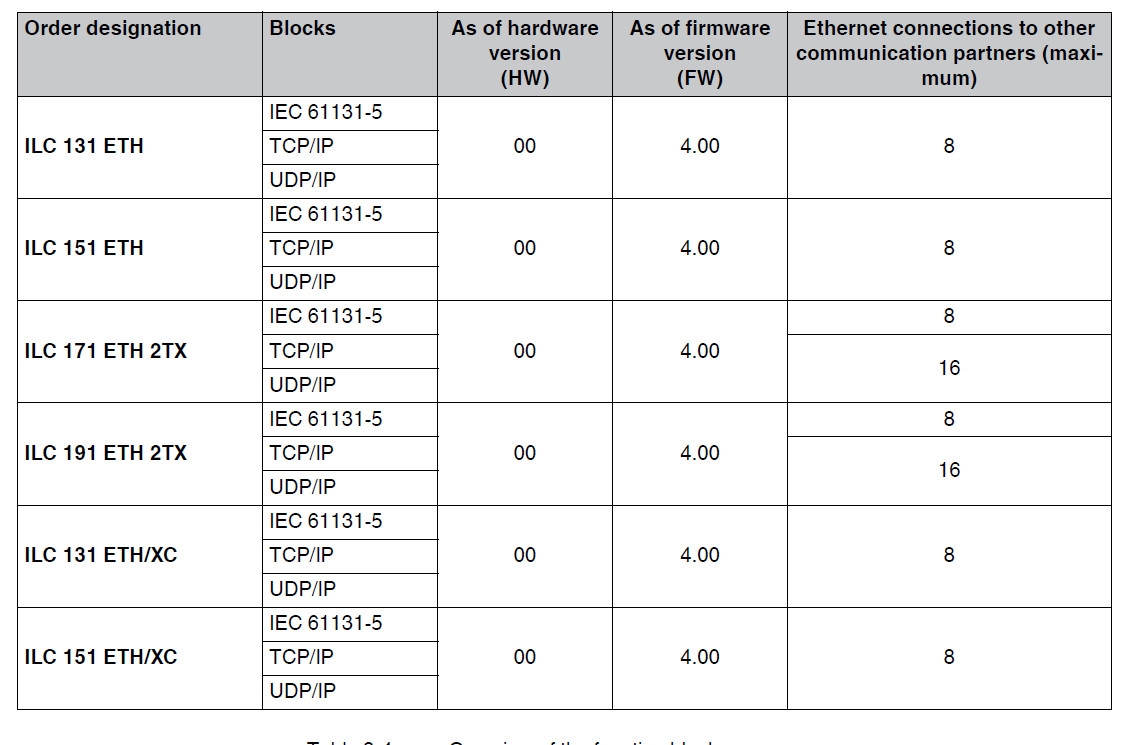

The function blocks are valid for the Inline controllers listed in the table below in the specified
hardware/firmware versions and enable the specified maximum number of TCP/IP or
UDP/IP communication connections:
 |
|
| Back to top |
|
|
Alone
Junior
Joined: 13 Sep 2022
Posts: 2
|
| Posted: 26/09/2022 03:32 Post subject: |
|
|
Dear guys.
Thanks for your feed back.

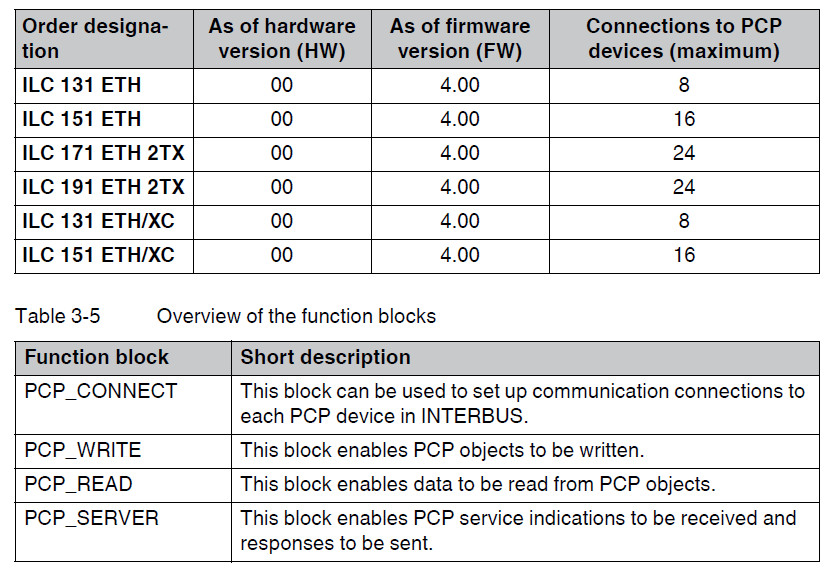

1.In your paper, you mentioned to PCP_XXX function blocked. But I dindn't see them on your example.
2.I don't sure that, you understood correctly my post. Can you send me your example project.
Best. |
|
