IDEC programming cable fc2a-kc2 for Micro3


Post new topic   Reply to topic    plc.myforum.ro Forum Index -> Cables, Sensors,Transducers ...
View previous topic :: View next topic
Author Message
GustavoArg
Junior
Junior


Joined: 10 Feb 2014
Posts: 7
PostPosted: 02/09/2019 20:27    Post subject: IDEC programming cable fc2a-kc2 for Micro3 Reply with quote
Does anyone have the pinout of this cable fc2a-kc2?

Thanks in advance!
Back to top
View user's profile Send private message
Boukarrat
Junior
Junior


Joined: 26 Jun 2019
Posts: 1
PostPosted: 03/09/2019 08:21    Post subject: Reply with quote
try this deducting the connections from these

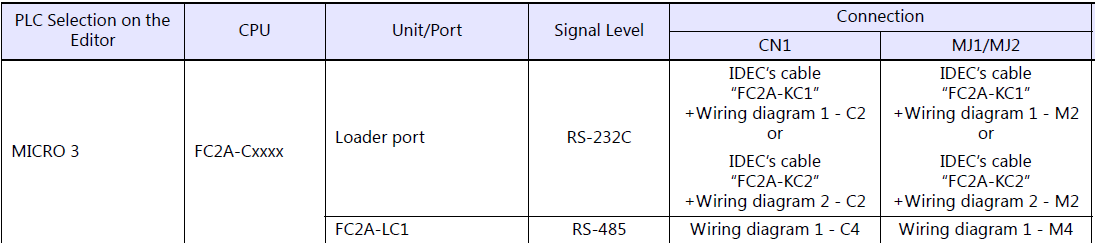

IDEC programming cable fc2a-kc2 for Micro3
IDEC programming cable fc2a-kc2 for Micro3

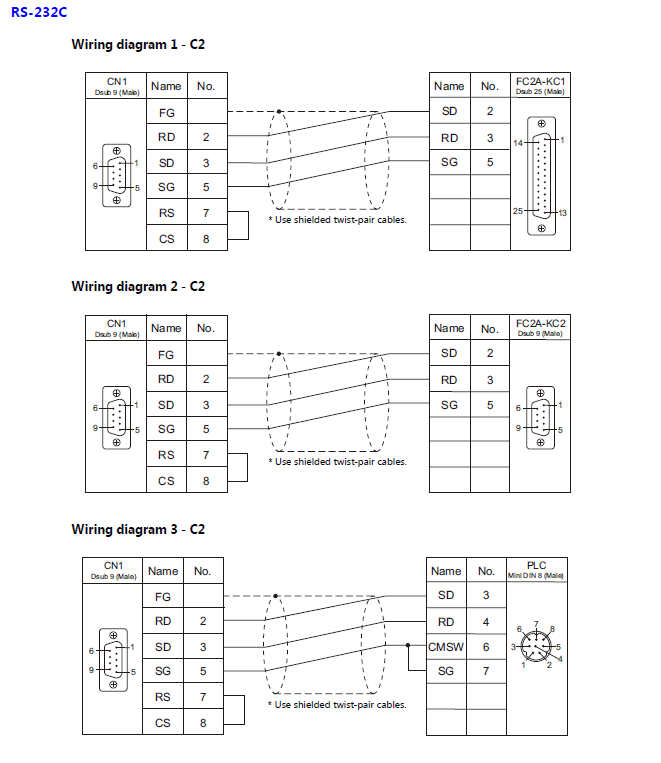

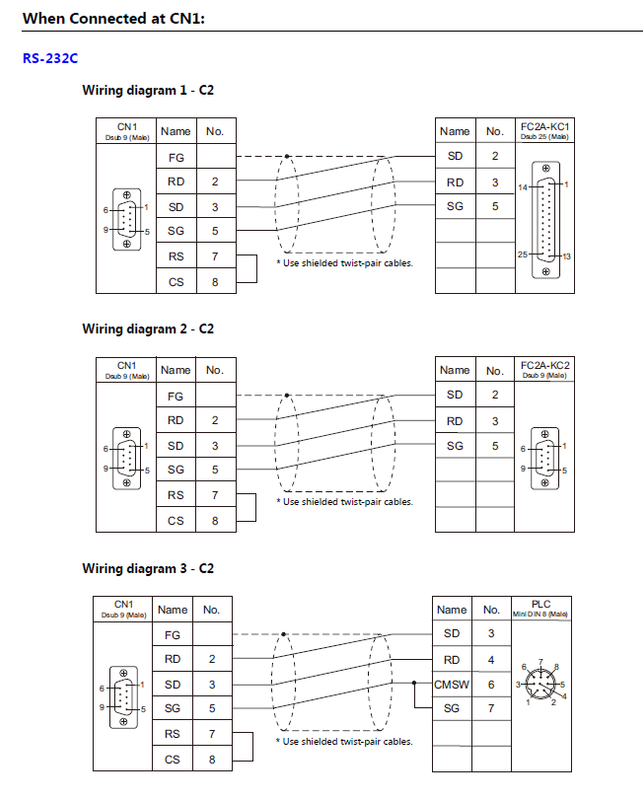

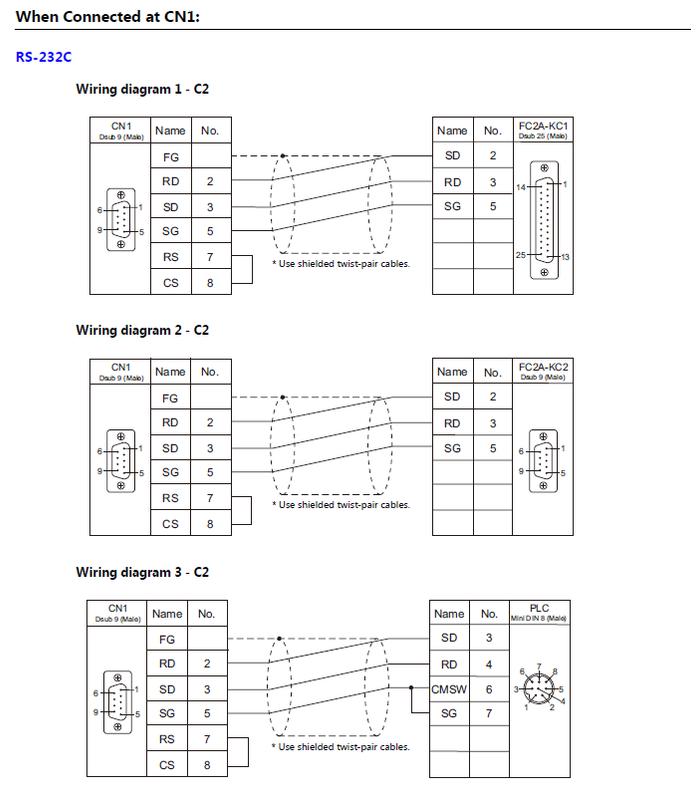

Connection CN1
IDEC’s cable “FC2A-KC1” +Wiring diagram 1 - C2
IDEC programming cable fc2a-kc2 for Micro3
or
IDEC’s cable “FC2A-KC2” +Wiring diagram 2 - C2
IDEC programming cable fc2a-kc2 for Micro3
IDEC programming cable fc2a-kc2 for Micro3

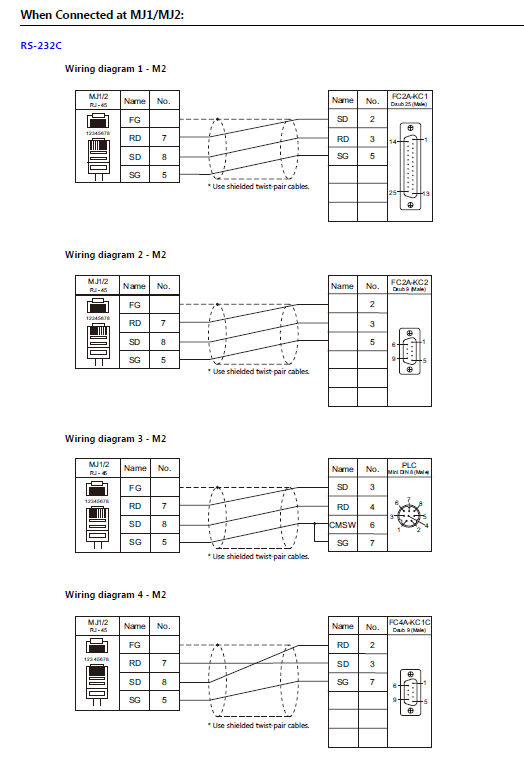

Connection MJ1/MJ2
IDEC’s cable “FC2A-KC1” +Wiring diagram 1 - M2
IDEC programming cable fc2a-kc2 for Micro3
IDEC’s cable “FC2A-KC2” +Wiring diagram 2 - M2
IDEC programming cable fc2a-kc2 for Micro3


IDEC programming cable fc2a-kc2 for Micro3
