milkros · Junior 2 Joined: 23 Jan 2021 Posts: 33

Hello,

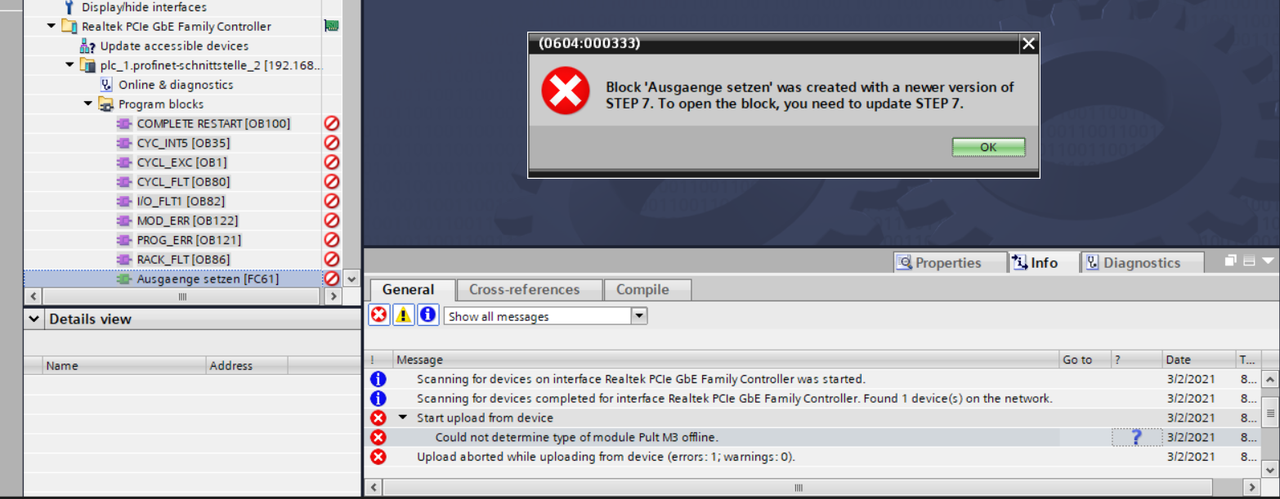

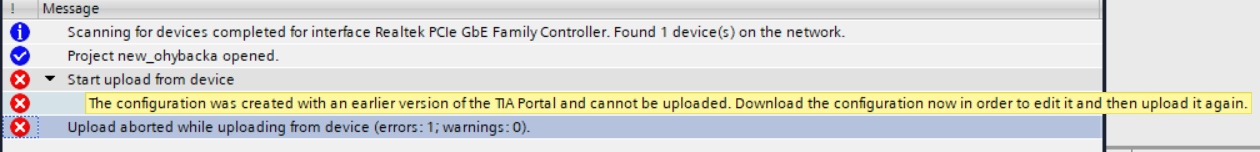

I tried Tia Portal V15,V14 and V13. It seems that it is programmed in Version V15 but when I tried to upload to a new project I had error message that configuration was created in earlier version. So I tried V13 and there is error: "Could not determine type of module Pult M3 offline." And at the end I cant open blocks in V13. Help me?

I cant upload program to a project I cant upload program to a project

I cant upload program to a project I cant upload program to a project

sobicega · Junior Joined: 07 Jul 2018 Posts: 1

What is Pult M3? You have not installed some .gsd or .gsdml files for Profinet??
What IP has that Pult M3 if it is in a Profinet Network?
Did you install Simatic Net?
You must install..What is exactky your hardware configuration...meaning components on the field?
Also you need to upgrade your TIA portal see options ...also updates not only version..include latest updates..
What options are available in STEP 7 (TIA Portal) for uploading when the project version in the CPU no longer matches the version on your PG/PC?
https://support.industry.siemens.com/cs/document/97554052/what-options-are-available-in-step-7- (tia-portal)-for-uploading-when-the-project-version-in-the-cpu-no-longer-matches-the-version-on-your-pg-pc-?dti=0&lc=en-WW
Uploading project data from a device
https://support.industry.siemens.com/cs/mdm/109773506?c=87261350923&lc=en-WW
or manual
https://support.industry.siemens.com/cs/document/109773506/simatic-step-7-basic-professional-v16-and-simatic-wincc-v16?dti=0&lc=en-AO
https://support.industry.siemens.com/cs/mdm/109773506?c=131147779979&lc=en-AO

How do you do a program upload in STEP 7 (TIA Portal) V12 when the device has been configured with STEP 7 V11?
https://support.industry.siemens.com/cs/document/66027369/how-do-you-do-a-program-upload-in-step-7- (tia-portal)-v12-when-the-device-has-been-configured-with-step-7-v11-?dti=0&lc=en-WW

In STEP 7 (TIA Portal) V13 SP1, how do you load project data from a device that has been configured with STEP 7 (TIA Portal) V12 SP1 or V13?
https://support.industry.siemens.com/cs/document/82169157/in-step-7- (tia-portal)-v13-sp1-how-do-you-load-project-data-from-a-device-that-has-been-configured-with-step-7-(tia-portal)-v12-sp1-or-v13-?dti=0&lc=en-WW

In STEP 7 (TIA Portal), how do you load the "Program Blocks" with the PLC tags and PLC data types from the CPU into the programming device?
https://support.industry.siemens.com/cs/document/41885693/in-step-7- (tia-portal)-how-do-you-load-the-program-blocks-with-the-plc-tags-and-plc-data-types-from-the-cpu-into-the-programming-device-?dti=0&lc=en-WW

How do you upgrade projects in TIA Portal V14 and higher that you created with previous versions of TIA Portal?
https://support.industry.siemens.com/cs/document/109476392/how-do-you-upgrade-projects-in-tia-portal-v14-and-higher-that-you-created-with-previous-versions-of-tia-portal-?dti=0&lc=en-WW

Faseo Grande · Junior Joined: 30 Oct 2018 Posts: 6

milkros · Junior 2 Joined: 23 Jan 2021 Posts: 33

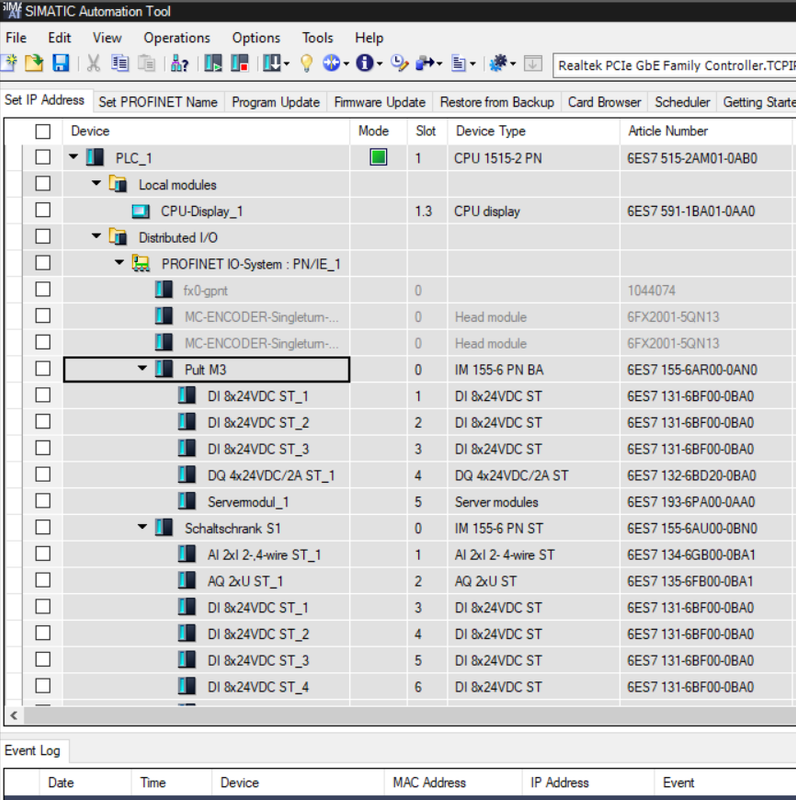

So pult m3 is IM. So what I should do. Why I cant upload a program to a project. It means that modules in pult M3 are programmed in V13 and rest of the program in V15? Thank you for help

ybmom · Junior Joined: 13 Jun 2018 Posts: 3

Information in Device table for CPUs: TIA Portal version and configured CPU version with Automation Tool
http://plc.myforum.ro/viewtopic.php?p=50976#50976
Rename with profinet name you have in the project
https://support.industry.siemens.com/cs/document/64847781/compatibility-tool-for-automation-and-drive-technology?dti=0&lc=en-US

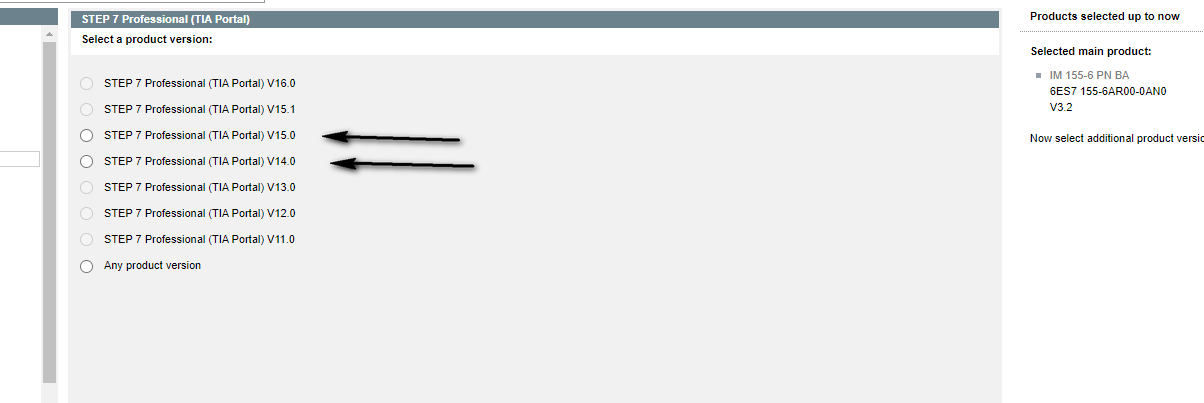

Check then with kompatibility tool what version is ok
https://support.industry.siemens.com/kompatool/pages/main/start_maincomponent_selection.jsf

[url=http://www.girlshare.ro/3770019424.6]Standard-CPUs-(S7-1500)_compatibility-list_en_2021-02-26.zip[/url]

milkros · Junior 2 Joined: 23 Jan 2021 Posts: 33

I dont know how to use it, it is just comparation of installed software.

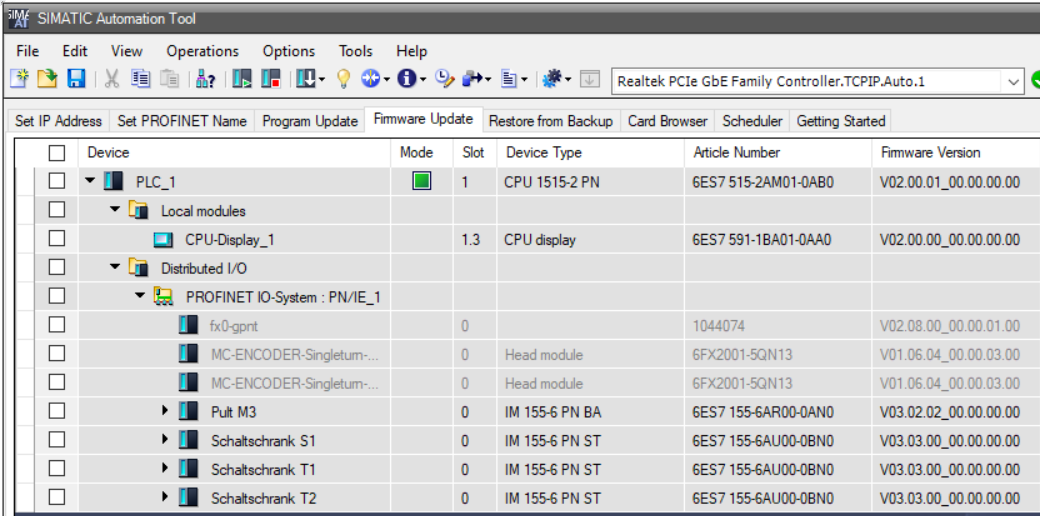

I have problem with IM PultM3, I cant upload the program to a project because probably it was programmed in V13 and rest of the program in V15. Finally I found this IM and modules at different place of machine. It is composed from various types of modules from another company. Notice that there is different firmware version. I dont know what to do...

I cant upload program to a project I cant upload program to a project

milkros · Junior 2 Joined: 23 Jan 2021 Posts: 33

mmm...our manifacturer told us that all components were programmed in V15

qjtty45 · Junior Joined: 28 Oct 2018 Posts: 1

Install GSD Profinet
PROFINET GSD files: I/O - ET 200SP
https://support.industry.siemens.com/cs/document/57138621/profinet-gsd-files%3A-i-o-et-200sp?dti=0&lc=en-CH

Firmware update for ET 200SP IM155-6PN BASIC
https://support.industry.siemens.com/cs/document/109479267/firmware-update-for-et-200sp-im155-6pn-basic?dti=0&lc=en-CH
Versions compatibility
I cant upload program to a project I cant upload program to a project

milkros · Junior 2 Joined: 23 Jan 2021 Posts: 33

Ive installed these GSD files already but I still have the same problem with uploading

I cant upload program to a project I cant upload program to a project

jevrobsa · Junior Joined: 12 Jan 2019 Posts: 1

Install V14 SP1

milkros · Junior 2 Joined: 23 Jan 2021 Posts: 33

I tried V14, V13 please read all topic. Thank you

milkros · Junior 2 Joined: 23 Jan 2021 Posts: 33

Hello, so manifacturer told me that it was programmed in V15 so I dont know why I have the mentioned error with earlier version
