 Posted: 20/06/2018 18:15 Post subject: How can i read S7-400 Flash memory? |
 |
|
| How can i read S7-400 Flash memory image file via USB prommer. |
|
| Back to top |
|
 |
zyka
Junior
Joined: 07 Feb 2016
Posts: 18
|
| Posted: 20/06/2018 20:54 Post subject: Re: How can i read S7-400 Flash memory? |
|
|
| vmam99 wrote: | | How can i read S7-400 Flash memory image file via USB prommer. |
Try to use Siemens S7 MMC eprom utils
do a backup image of MMC card using s7imgRD.exe.
Then the image can be write with s7imgWR.exe
http://members.aon.at/uteetz/ |
|
| Back to top |
|
|
vmam99
Junior 2
Joined: 06 Mar 2012
Posts: 44
|
| Posted: 22/06/2018 18:51 Post subject: |
|
|
| Where i can read. When use Simatic USB Prommer, it's not add new storage. Only show in Step7 manager. How can i find flash? |
|
| Back to top |
|
|
Zer0G
Junior
Joined: 05 Jan 2015
Posts: 8
|
| Posted: 11/01/2019 14:41 Post subject: |
|
|
| Quote: | | Where i can read. When use Simatic USB Prommer, it's not add new storage. Only show in Step7 manager. How can i find flash? |
Did you managed to read the s7-400 flash memory without simatic manager?
I have a PG station and I cant access the flesh memory externally. Only from Simatic Manager. |
|
| Back to top |
|
|
uwett
Junior
Joined: 12 May 2018
Posts: 9
|
| Posted: 11/01/2019 20:45 Post subject: |
|
|
| http://plc.myforum.ro/find-your-password-in-s7-300-400-vt1862.html |
|
| Back to top |
|
|
nyverg
Junior
Joined: 23 Mar 2019
Posts: 1
|
| Posted: 15/05/2019 08:40 Post subject: Re: How can i read S7-400 Flash memory? |
|
|
| vmam99 wrote: | | How can i read S7-400 Flash memory image file via USB prommer. |
http://plc.myforum.ro/mmc-siemens-vt10662.html |
|
| Back to top |
|
|
mario399
Junior
Joined: 22 Aug 2022
Posts: 4
|
| Posted: 23/08/2022 08:00 Post subject: |
|
|
Hi, I am coming back with the same question as above.
Does anybody managed to make an image of the s7-300 old flash memory card (for example 6ES7 951-0KD00-0AA0)?
I have PG Station M6 and another non-siemens card reader plugged via USB.
PG can only open card via Step7, Card Reader cannot see mounted disk - in Clonezilla I cannot find partition, just a useless device.
None of software for creating image of newer MMC doesn't work with the old card, bacause of hardware issue with identifying device.
I found MCE software (Memory card explorer) - but I have troubles with selecting correct address of memory window.
Any ideas? |
|
| Back to top |
|
|
9631pccb
Junior
Joined: 20 Jun 2022
Posts: 4
|
| Posted: 23/08/2022 08:45 Post subject: |
|
|
| mario399 wrote: | Hi, I am coming back with the same question as above.
Does anybody managed to make an image of the s7-300 old flash memory card (for example 6ES7 951-0KD00-0AA0)?
I have PG Station M6 and another non-siemens card reader plugged via USB.
PG can only open card via Step7, Card Reader cannot see mounted disk - in Clonezilla I cannot find partition, just a useless device.
None of software for creating image of newer MMC doesn't work with the old card, bacause of hardware issue with identifying device.
I found MCE software (Memory card explorer) - but I have troubles with selecting correct address of memory window.
Any ideas? |
http://plc.myforum.ro/viewtopic.php?p=56969#56969 |
|
| Back to top |
|
|
mario399
Junior
Joined: 22 Aug 2022
Posts: 4
|
| Posted: 23/08/2022 10:43 Post subject: |
|
|
| 9631pccb wrote: | | mario399 wrote: | Hi, I am coming back with the same question as above.
Does anybody managed to make an image of the s7-300 old flash memory card (for example 6ES7 951-0KD00-0AA0)?
I have PG Station M6 and another non-siemens card reader plugged via USB.
PG can only open card via Step7, Card Reader cannot see mounted disk - in Clonezilla I cannot find partition, just a useless device.
None of software for creating image of newer MMC doesn't work with the old card, bacause of hardware issue with identifying device.
I found MCE software (Memory card explorer) - but I have troubles with selecting correct address of memory window.
Any ideas? |
http://plc.myforum.ro/viewtopic.php?p=56969#56969 |
I talk about old type of memory card, plugged with 64 pin socket PCMCIA.
I cannot see it as a partition on PC.
As I said before, none of programs like s7read, WinHex etc. doesnt work
 |
|
| Back to top |
|
|
Skankads456
Junior
Joined: 23 Aug 2022
Posts: 1
|
| Posted: 23/08/2022 13:17 Post subject: |
|
|

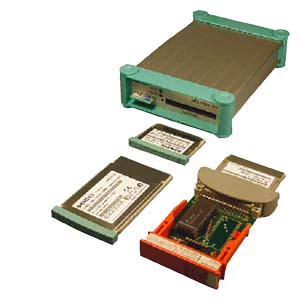

You need Siemens USB Prommer
Installation CD 10/2007 for SIMATIC USB prommer
https://support.industry.siemens.com/cs/document/24843629/contents-of-the-installation-cd-for-simatic-usb-prommer?dti=0&lc=en-NI
https://support.industry.siemens.com/cs/attachments/9775614/USBprommer_commissioning_manual_enUS_en-US.pdf

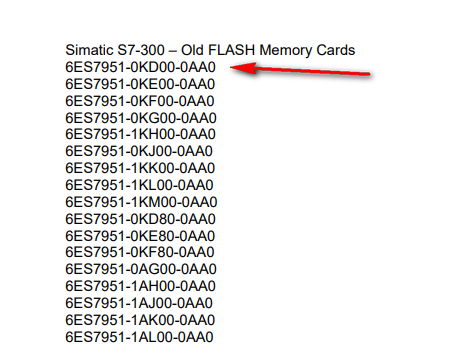

https://contrologica.com/wp/wp-content/uploads/2020/03/Siemens_USB_Prommer_Memory_Card_List.pdf
SIMATIC USB Prommer Software V1.0 SP1
https://support.industry.siemens.com/cs/document/14293184/simatic-usb-prommer-software-v1-0-sp1?dti=0&lc=en-WW
https://wiki.ibhsoftec.com/en/S5/S7_for_Windows:USB_Prommer_Driver
buy
https://www.ibhsoftec.com/DL-USB-Prommer-Eng
Installation of the PC Adapter USB/USB Prommer Driver with STEP7 V5.5
https://support.industry.siemens.com/cs/document/44914248/installation-of-the-pc-adapter-usb-usb-prommer-driver-with-step7-v5-5?dti=0&lc=en-WW
In STEP 7 (TIA Portal), how do you format an MMC or MC and why does a message appear saying that the SDB 7 is not loaded?
https://support.industry.siemens.com/cs/document/81791380/in-step-7- (tia-portal)-how-do-you-format-an-mmc-or-mc-and-why-does-a-message-appear-saying-that-the-sdb-7-is-not-loaded-?dti=0&lc=en-WW
https://support.industry.siemens.com/cs/products/6es7792-0aa00-0xa0/usb-prommer?pid=432515&mlfb=6ES7792-0AA00-0XA0&mfn=ps&lc=en-WW
USB prommer (order number 6ES7792-0AA00-0XA0).
https://mall.industry.siemens.com/mall/en/WW/Catalog/Products/10008932 |
|
| Back to top |
|
|
mario399
Junior
Joined: 22 Aug 2022
Posts: 4
|
| Posted: 01/09/2022 13:48 Post subject: |
|
|
Thanks for your reply @Skankads456
Do I am able to use internal card reader of PG with libusb driver?
I do not have Simatic USB Prommer and it is hard to order it anywhere. |
|
| Back to top |
|
|
billpod
Junior
Joined: 21 Jun 2022
Posts: 1
|
| Posted: 04/09/2022 17:52 Post subject: |
|
|
| mario399 wrote: | Thanks for your reply @Skankads456
Do I am able to use internal card reader of PG with libusb driver?
I do not have Simatic USB Prommer and it is hard to order it anywhere. |
try here USB - PROMMER, Siemens 6ES7 792-0AA00-0XA0
https://www.ebay.com/itm/234281898379 |
|
| Back to top |
|
|
SHKODRAN
Member
Joined: 25 Apr 2012
Posts: 140
Location: Russia
|
| Posted: 05/09/2022 08:46 Post subject: |
|
|
| You can read and write directly with the integrated reader of your pc, with winhex. |
|
| Back to top |
|
|
mario399
Junior
Joined: 22 Aug 2022
Posts: 4
|
| Posted: 05/09/2022 10:31 Post subject: |
|
|
| SHKODRAN wrote: | | You can read and write directly with the integrated reader of your pc, with winhex. |
Could you explain how to use it? Windows Os and Winhex don't see any additional partition when card is plugged into internal reader.
I have access only via Simatic Manager. |
|
