 Posted: 26/10/2018 13:27 Post subject: House Control with LOGO! 8 and Weather Sensors (LOGO! Set 11 |
 |
|
Building Automation: House Control with LOGO! 8 and Weather Sensors (LOGO! Set 11)
https://support.industry.siemens.com/cs/document/68585346/
With LOGO! 8, can be exchanged between several LOGO! modules via network communicaiton. In the application, a weather station is connected to an existing house automation with a LOGO! 8 and a touch panel. Depending in the weather data, various house functions are controlled and weather warnings are generated.
The task is to control the functions of building on the weather conditions (sunlight, rain, wind, dusk / dawn, and temperature). A control panel shall be used to display and monitor the weather conditions and the house function status. This will be done with the expansion of an existing house automation system by an additional controller.

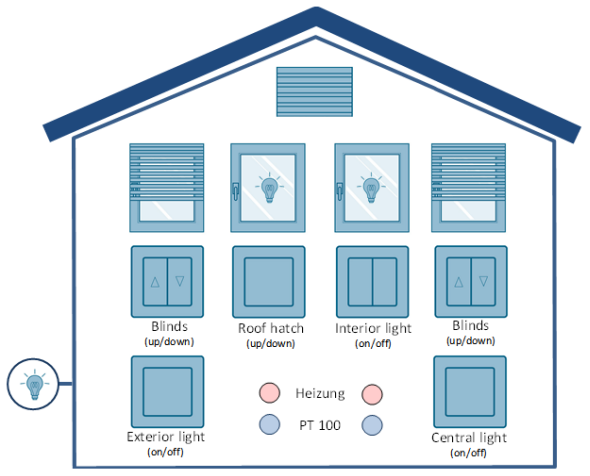

The following should be controlled automatically:
blinds
Roof hatch
Interior and exterior lighting
Heater
Garden watering

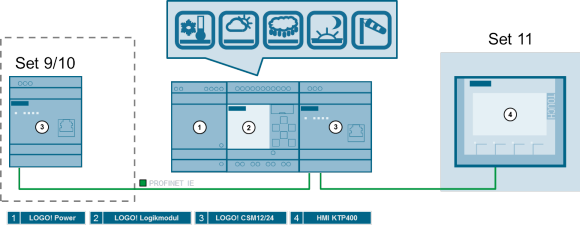

This LOGO! Set 11 expands the house control of LOGO! Set 9/10 by a weather station with touch panel. This expansion is achieved with a LOGO! 8 controller with network communication. This application example can therefore be controlled without a touch panel using the PC using the WinCC simulation.
The automation solution fulfills the following operating requirements:
Automatic control of the house functions depending on the weather conditions
Weather data and house control monitoring via touch panel
Connection of further house control areas and functionalities to the weather station
Weather station can be used separately, if required
Display of color-coded weather warning messages
Downloads LOGO! 8
https://support.industry.siemens.com/cs/attachments/68585346/68585346_LOGO8_Set11_DOKU_v21_en.pdf
https://support.industry.siemens.com/cs/attachments/68585346/68585346_LOGO8_Set11_CODE_v21.zip
Downloads LOGO! 7
https://support.industry.siemens.com/cs/attachments/68585346/68585346_LOGO_Set11_DOKU_LOGO_7_en.pdf
https://support.industry.siemens.com/cs/attachments/68585346/68585346_LOGO_Set11_CODE_LOGO_7_en.zip |
|
