Handwheel function with SIMATIC S7-1500(T) controllers
https://support.industry.siemens.com/cs/document/109807355/
The "LHandwheel" block library contains copy templates with which you can implement a handwheel in order to move an axis manually.

With many machines, especially with production machines, it is important that the axes can be moved manually by the operating personnel. A hand wheel is ideal for manual operation of an axis.

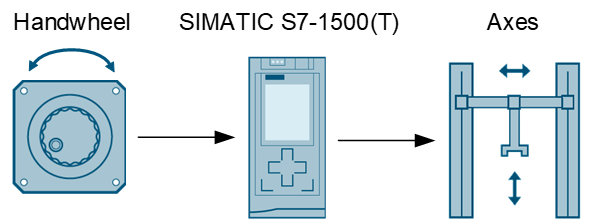

For this purpose, a rotary knob, a crank or a similar device is installed on the machine, which can be operated by the machine operator. If the operator turns this hand wheel, the machine moves according to the turning speed and direction of rotation of the hand wheel.
