 Posted: 19/03/2014 23:56 Post subject: Fuji Ug-Series programming cable |
 |
|
| can anyone help me by the cable connection diagram of Fuji Ug-series HMI programming cable. The tip number of cable is UG00C-T. |
|
| Back to top |
|
 |
cencen
Member 2
Joined: 08 Mar 2014
Posts: 284
|

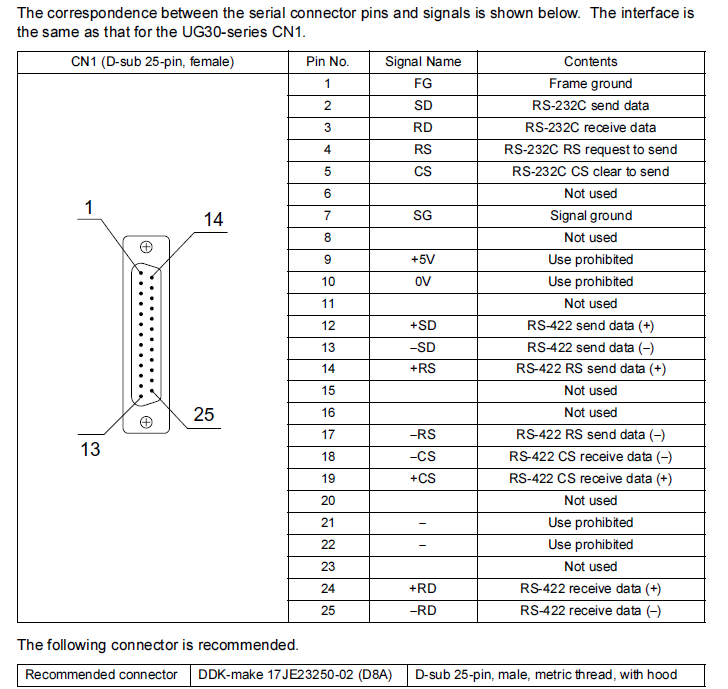

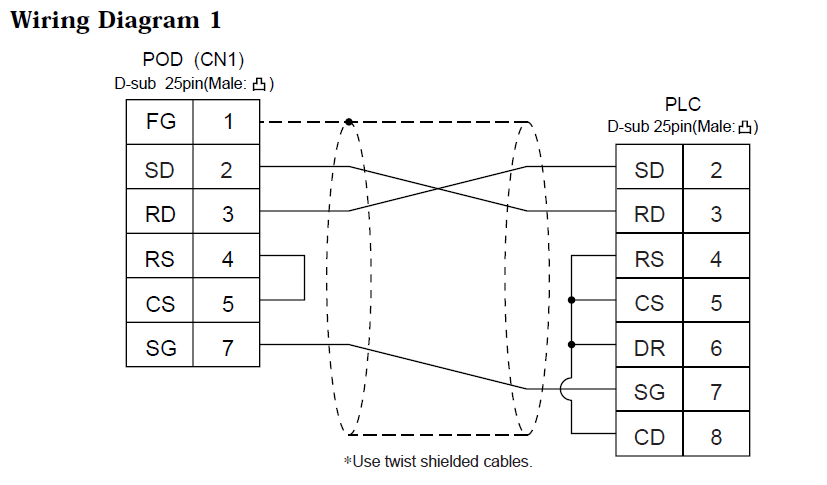

| Posted: 22/03/2014 22:19 Post subject: Re: Fuji Ug-Series programming cable |
|
|
| rajume06 wrote: | | can anyone help me by the cable connection diagram of Fuji Ug-series HMI programming cable. The model number of cable is UG00C-T. |
 |
|
| Back to top |
|
|
cencen
Member 2
Joined: 08 Mar 2014
Posts: 284
|

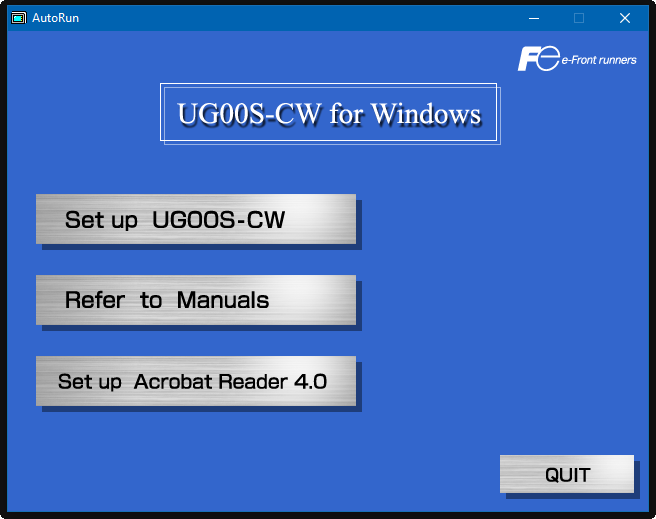

| Posted: 26/02/2021 22:38 Post subject: Fuji UGS podsoftware |
|
|
Fuji UGS podsoftware
[URL=https://www.file-upload.net/download-14501957/Fuji_UGS_Podsoftware.rar.html]Fuji_UGS_Podsoftware.rar[/URL]
https://www.upload.ee/files/12938696/Fuji_UGS_Podsoftware.rar.html
https://anonfiles.com/n4x5Vc67qd/Fuji_UGS_Podsoftware_rar

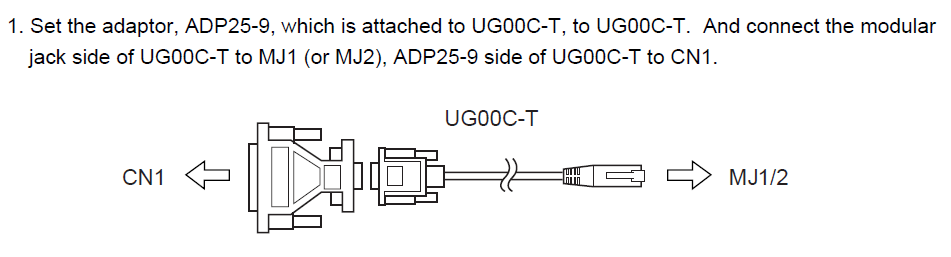

Cable
UG00C-T cable pinout
RJ45 DB9 female
8.........2
7.........3
7*
8* * short circuit between 7 and 8 on DB9 side
RJ45 (5)......DB9 (5) [GROUND] |
|
