FTP Client Communication with LFTP Library with S7-1200/1500
https://support.industry.siemens.com/cs/document/81367009/
The library "LFTP" is an application solution of how an S7-1500/1200 can exchange data with an FTP server as simple FTP client without communication processor.
The widely distributed File Transfer Protocol (FTP) offers you the possibility of storing data on almost any server system of all the known operating systems.

In the libraries for communication (109780503) we provide you with the LFTP Library that implements a FTP client into the S7-CPU. The block "LFTP_Client" can perform the following FTP commands:
CONNECT
STORE
RETRIEVE
DELETE
APPEND
DISCONNECT

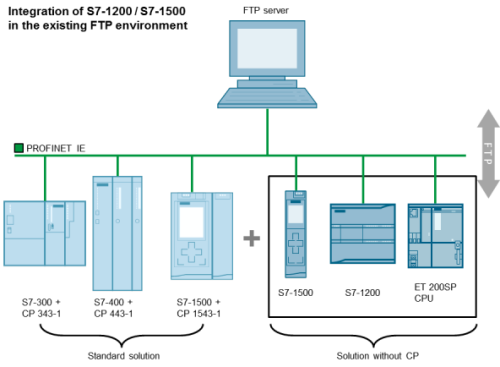

The following screen shows what components can be used by this library in the FTP communication.
FTP Client Communication with LFTP Library with S7-1200/1500 FTP Client Communication with LFTP Library with S7-1200/1500

FTP Client Communication with LFTP Library with S7-1200/1500 FTP Client Communication with LFTP Library with S7-1200/1500

The LFTP_Client block introduced here enables the very easy use of a S7-1200/S7-1500 CPU as FTP client with the most frequent FTP commands. The FTP command set corresponds to that of the S7-300/400/1500 CPs.

The detailed documentation of the LFTP library can be found in the documentation of the Libraries for Communication
https://support.industry.siemens.com/cs/document/109780503/libraries-for-communication-for-simatic-controllers
https://support.industry.siemens.com/cs/attachments/109780503/109780503_Libraries_Comm_Controller_DOC_V1_3_0_en.pdf
https://support.industry.siemens.com/cs/attachments/109780503/109780503_Libraries_Comm_Controller_LIB_V1_3_0.zip
https://support.industry.siemens.com/cs/attachments/109780503/109780503_Libraries_Comm_Controller_LIB_V1_2_0_TIAv16.zip
Downloads tia17
https://support.industry.siemens.com/cs/attachments/81367009/81367009_LFTP_DOC_V60_en.pdf
https://support.industry.siemens.com/cs/attachments/81367009/81367009_LFTP_Demo_PROJ_V60.zip
Libraries v16 v17
https://anonfiles.com/P1Z5Mdley8/109780503_Libraries_Comm_Controller_DOC_V1_3_0_en_pdf
https://anonfiles.com/VdZ0M6lby9/109780503_Libraries_Comm_Controller_LIB_V1_2_0_TIAv16_zip
https://anonfiles.com/XfZ7M2l0y4/109780503_Libraries_Comm_Controller_LIB_V1_3_0_zip
https://anonfiles.com/feaaN5leyd/81367009_LFTP_Demo_PROJ_V60_zip

https://ulozto.net/tamhle/sCDYl6zRtxFt/

valz · Member 3 Joined: 26 Jul 2015 Posts: 771

FTP/FTPS communication with S7-1500 and CP 1543-1
https://support.industry.siemens.com/cs/document/103550797/
Due to its versatility, FTP has established itself as a standard for data exchange. It is independent of the type of connection and the operating system. It additionally offers protection mechanisms such as assigning access rights and explicitly sharing paths. The data exchange can be protected by communication encryption (FTPS).

An S7-1500 controller is to exchange data with a PC via FTP. The CP 1543-1 is ideally suited for this task as it can perform the function of both an FTP client and an FTP server.

The aim is to implement the following scenarios:
The CP 1543-1 acting as an FTP client (active) requests data from an FTP server and stores it in a suitable data structure or sends a suitable data structure to an FTP server, where it is stored as a file.
The CP 1543-1 acting as an FTP server provides its file system to an FTP client.
You can implement both scenarios using FTP (unencrypted) or FTPS (encrypted).
Solution
The CP 1543-1 can be used both as an FTP server and as an FTP client. This apllication example describes the configuration as a server. Using the CP as a client requires that the "FTP_CMD" instruction be used. To facilitate the programming involved, we provide the "LFtp" library. The "LFtp_Communication" function block and the "LFtp_Param" data block enable you to integrate FTP communication into your project quickly and easily.

The CP supports FTP and FTPS. This allows you to transfer the data in an unencrypted or encrypted form.

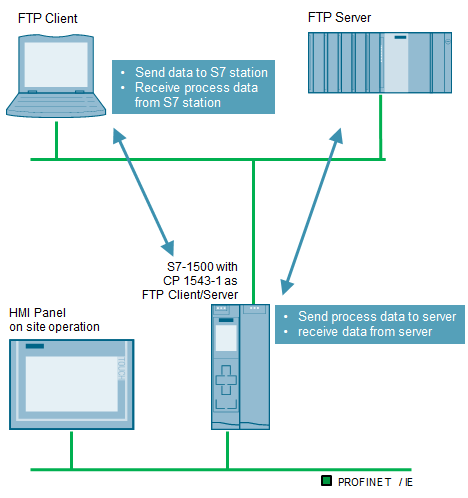

The figure below shows the pictorial schematic and the hardware combination of this example application.
FTP Client Communication with LFTP Library with S7-1200/1500 FTP Client Communication with LFTP Library with S7-1200/1500

S7-1500 as FTP server:
The S7-1500 station is the FTP server via CP 1543-1 and can either receive data from an FTP client or send data to an FTP client upon request.

S7-1500 as FTP client:
The S7-1500 station is the FTP client via CP 1543-1 and can execute the following FTP commands:

STORE (the client saves a file on the server)
RETRIEVE (the client requests a file from the server)
DELETE (the client deletes a file from the server)
APPEND (the client attaches data to a file on the server)
RETRIEVE_PART (the client requests parts of the data of a file from the server)

Downloads
https://support.industry.siemens.com/cs/attachments/103550797/103550797_FTP_CP_DOC_V30_en.pdf
https://support.industry.siemens.com/cs/attachments/103550797/103550797_FTP_CP_LIB_V30.zip

https://support.industry.siemens.com/cs/attachments/103550797/103550797_FTP_1500_DOKU_V20_en.pdf
https://support.industry.siemens.com/cs/attachments/103550797/103550797_FTP_1500_CODE_V20.zip

https://ulozto.net/tamhle/MvOCjNCNZoYF/

https://anonfiles.com/bcz1Nal5y8/103550797_FTP_1500_DOKU_V20_en_pdf
https://anonfiles.com/dcz7Ncl2y9/103550797_FTP_CP_LIB_V30_zip
https://anonfiles.com/ffz7N6l2y2/103550797_FTP_CP_DOC_V30_en_pdf
https://anonfiles.com/v3z6N9layf/103550797_FTP_1500_CODE_V20_zip

valz · Member 3 Joined: 26 Jul 2015 Posts: 771

FTP communication with S7-300/400
https://support.industry.siemens.com/cs/document/21605954/
The File Transfer Protocol (FTP) is one of the classic, standardized options of exchanging data with PCs or any heterogeneous computer system. This entry shows how FTP communication is realized in a SIMATIC S7-300/400 station. ...

The File Transfer Protocol (FTP) is one of the classic, standardized options of exchanging data with PCs or any heterogeneous computer system. This entry shows how FTP communication is realized in a SIMATIC S7-300/400 station.

This application example introduces an example project which illustrates how to realize FTP communication with an S7-300 or S7-400 and CP x43-1 Advanced. Based on two scenarios, we show you how to handle the FTP server and FTP client functionality.

S7-300/400 as FTP server:
The S7-300/400 station is the FTP server via CP x43-1 Advanced and can either receive data from an FTP client or send data to an FTP client upon request.

S7-300/400 as FTP client:
The S7-300/400 station is FTP client via CPx43-1 Advanced and can execute the following FTP commands:

STORE (the client saves a file on the server)
RETRIEVE (the client requests a file from the server)
DELETE (the client deletes a file from the server)
APPEND (the client attaches data to a file on the server)
RETRIEVE_PART (the client requests parts of the data of a file from the server)
The FTP client functionality is encapsulated in a compact function block (“FTP_300_Communication”), which performs all the necessary steps for coordinating the FTP communication for you. This function block can be easily integrated into some programs. The scenarios can be easily demonstrated via a simple user interface.

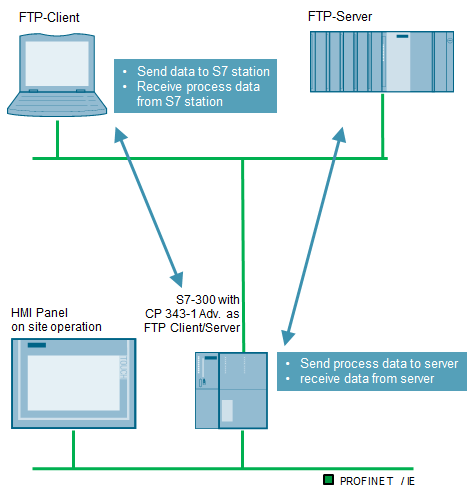

The figure below shows the pictorial schematic and the hardware combination of this example application.
FTP Client Communication with LFTP Library with S7-1200/1500 FTP Client Communication with LFTP Library with S7-1200/1500

Downloads
https://support.industry.siemens.com/cs/attachments/21605954/21605954_FTP_300_DOC_V30_en.pdf
https://support.industry.siemens.com/cs/attachments/21605954/21605954_FTP_300_CODE_V30.zip

https://anonfiles.com/t437N0layc/21605954_FTP_300_CODE_V30_zip
https://anonfiles.com/va3dN3layf/21605954_FTP_300_DOC_V30_en_pdf

https://ulozto.net/tamhle/KLTJMAMsTCj2/
