freeCAD 9
http://www.ar-cad.com/freecad/index.html

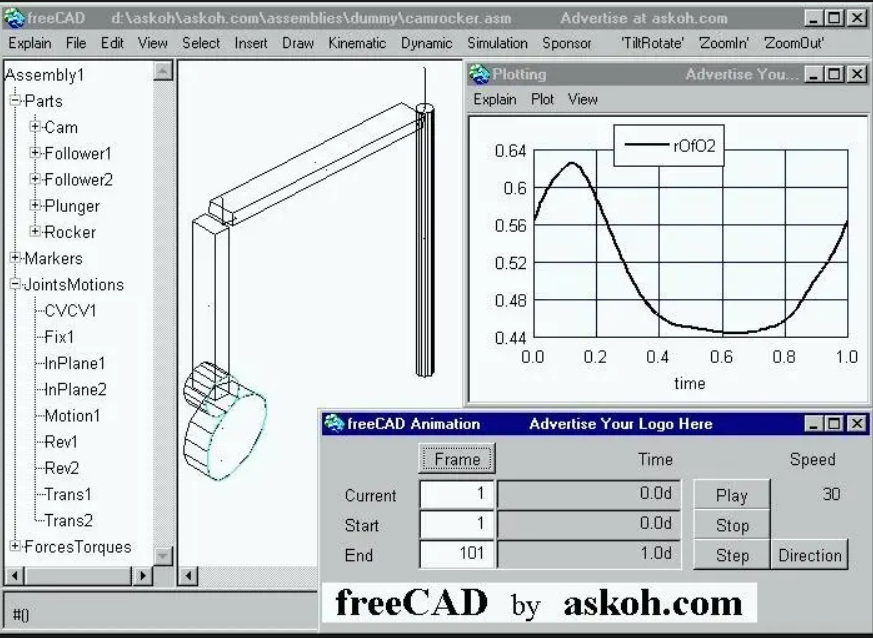

freeCAD is a basic 3D CAD with advanced Motion Simulation capabilities.
It is suitable for anyone interested in learning 3D CAD and Motion Simulation for free before using more sophisticated packages.
Its motion simulation capabilities are comparable to the best and can provide accurate answers to engineers and scientists in diverse fields.
Educators, students and new engineers will find it ideal for the teaching and learning of geometry, kinematics, dynamics, vibrations, mechanisms, linkages, cams, machine stil and physics.
The program runs on Windows, Linux PC, Macintosh PPC and other Unix's. Assembly data are unchanged across platforms.
download link:
Windows 95, 98, ME, NT, 2000, XP with 64MB or more RAM
http://www.ar-cad.com/comcadsm/freecad9a.zip
freeCAD 8.4 in Linux
http://www.askoh.com/freecad/download/freecad8.zip
freeCAD 8.4 in Mac OS9
http://www.askoh.com/freecad/download/freecad8.zip
freeCAD 8.4 in Mac OSX
http://www.askoh.com/freecad/download/freecad8.zip
freeCAD 8.4 in Other Unix
http://www.askoh.com/freecad/download/freecad8.zip
Last edited by rumsfeld on 14/09/2019 13:55; edited 1 time in total |
|
| Back to top |
|
 |
vedika31
Junior
Joined: 21 Feb 2019
Posts: 4
Location: Pune
|
| Posted: 28/02/2019 12:17 Post subject: |
|
|
| For what Free Cad is used ? |
|
| Back to top |
|
|
rumsfeld
Member 3
Joined: 29 Oct 2011
Posts: 572
|
| Posted: 14/09/2019 14:00 Post subject: |
|
|
freeCAD is a basic 3D CAD with advanced Motion Simulation capabilities. It is suitable for anyone interested in learning 3D CAD and Motion Simulation for free before using more sophisticated packages. Its motion simulation capabilities are comparable to the best and can provide accurate answers to engineers and scientists in diverse fields. Educators, students and new engineers will find it ideal for the teaching and learning of geometry, kinematics, dynamics, vibrations, mechanisms, linkages, cams, machine design and physics. The program runs on Windows, Linux PC, Macintosh PPC and other Unix's. Assembly data are unchanged across platforms.
http://www.ar-cad.com/freecad/index.html
freeCAD allows users to create and manipulate assemblies of parts. The parts are simple 3D solids, which can be connected by joints, constraints, contacts, motors, actuators, springs, dampers, forces, torques or gravity. DXF files can be imported for use as parts. The parts and connections define the structure, mechanism or machine of interest. Both open and closed 3D loops are permitted. freeCAD performs full Multibody Dynamics Analysis on the assembly to predict the motion according to Newton's Laws. Animation using the simulated data produces realistic dynamic behavior of the system.
Users can study the mechanical dynamics in the form of plots and tabular output. XY plots can be zoomed and set to equal scales. Data series available conține linear and angular displacements, velocities, accelerations, forces, torques, momenta and kinetic energies. Acceleration data include transverse, centripetal and Coriollis accelerations. Users can view forces and torques from joints, constraints, actuators, springs, dampers, applied forces and inertia. Data can be exported to spreadsheets or POVRay, a ray-tracing program. |
|
