 Posted: 24/01/2022 15:47 Post subject: Festo CPX USB cable pinout |
 |
|
Hy there,
Does anybody know connection diagram for diagnostic Festo cable NEFC-M12G5-0.3-U1G5 like this one:
| Code: | https://www.festo.com/za/en/a/547432/?siteUid=fox_za&siteName=Festo+ZA
|
The new or used ones are kinda expensive, but for what I see this is simple USB to Serial converter I just need to find pinout.
Thanks |
|
| Back to top |
|
 |
juriii
Junior
Joined: 28 Sep 2017
Posts: 10
|
| Posted: 03/02/2022 19:58 Post subject: |
|
|
hello,

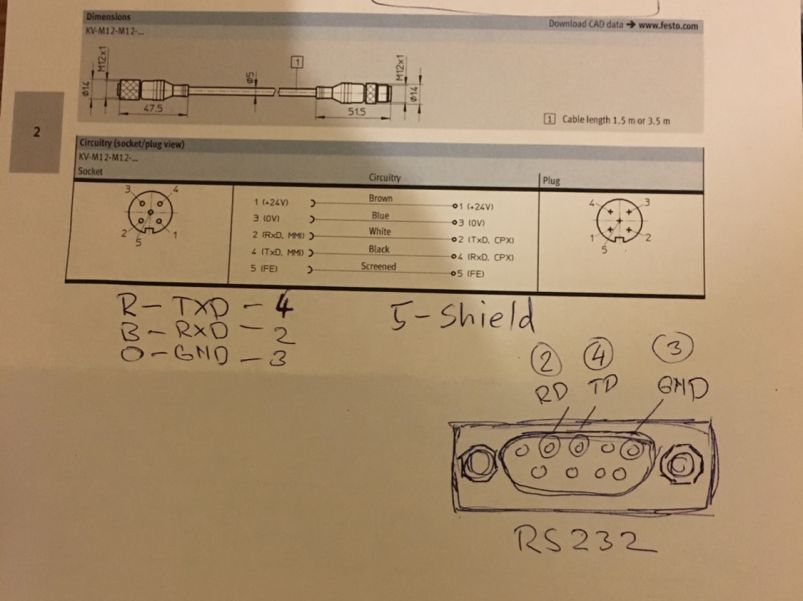

a few years ago i draw this wiring and works good with rs232 to usb converter
[url=http://www.99poze.ro/p/f6117207026614ced29cf8aedc7b16e4.jpg] [/url]+ |
|
| Back to top |
|
|
NepoznatNetko
Junior
Joined: 11 Apr 2021
Posts: 10
|
| Posted: 04/02/2022 08:35 Post subject: |
|
|
| juriii wrote: | hello,
a few years ago i draw this wiring and works good with rs232 to usb converter
[url=http://www.99poze.ro/p/f6117207026614ced29cf8aedc7b16e4.jpg][/url]+ |
Wow, that was exactly what I needed  I will try to use it with our CPX-FB13 and Festo Maintanence tool, we need it at work to do some diagnostic
You have no idea how much you have helped me, thank you very much |
|
