EtherNet/IP Scanner – Connecting third party I/O’s using EtherNet/IP
https://support.industry.siemens.com/cs/document/109782314/
The library used in this application example allows you to use EtherNet/IP field devices with SIMATIC controller.
Although, according to the number of installed nodes PROFINET is the largest Ethernet based fieldbus in the world, EtherNet/IP is at number 3. Especially in several regions of the world EtherNet/IP has a dominating role. SIMATIC controller inherently don’t have support for field devices using EtherNet/IP.

In this application example a possible solution is demonstrated and explained, how such EtherNet/IP field devices can be used with SIMATIC controllers.

As the Open User Communication allows a SIMATIC programmer to create the payload for packets send via UDP or TCP, the SIMATIC can implement the necessary features and functions to provide EtherNet/IP as loadable function block. This functionality can be used with any Open User Communication capable interface of the SIMATIC, such as integrated PROFINET ports as well as Industrial Ethernet CMs and CPs. Here SIMATIC controller applies to both S7-1500 and S7-1200.

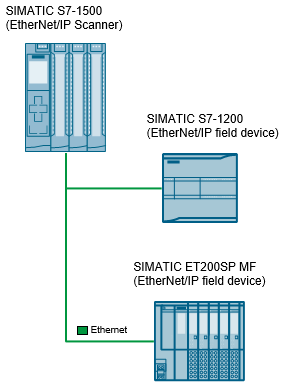

The following graphic shows the configuration scenario the function was tested with.

EtherNet/IP Scanner – Connecting third party I/O’s using Eth EtherNet/IP Scanner – Connecting third party I/O’s using Eth

EtherNet/IP Scanner – Connecting third party I/O’s using Eth EtherNet/IP Scanner – Connecting third party I/O’s using Eth

The application example demonstrates all the necessary steps to configure the SIMATIC S7-1500 to operate as EtherNet/IP Scanner with the help of the LCCF_EnetScanner Library.

Downloads
[URL=https://www.file-upload.net/download-15286129/109782314_LCCF_EnetScanner_TIAP_V15.1_LIB_v1_2.zip.html]109782314_LCCF_EnetScanner_TIAP_V15.1_LIB_v1_2.zip[/URL]
[URL=https://www.file-upload.net/download-15286128/109782314_LCCF_EnetScanner_TIAP_V16_LIB_v1_2.zip.html]109782314_LCCF_EnetScanner_TIAP_V16_LIB_v1_2.zip[/URL]
[URL=https://www.file-upload.net/download-15286130/109782314_LCCF_EnetScanner_TIAP_V17_LIB_v1_2.zip.html]109782314_LCCF_EnetScanner_TIAP_V17_LIB_v1_2.zip[/URL]
[URL=https://www.file-upload.net/download-15286131/109782314_LCCF_EnetScanner_TIAP_V18_LIB_V1_0_1.zip.html]109782314_LCCF_EnetScanner_TIAP_V18_LIB_V1_0_1.zip[/URL]
[URL=https://www.file-upload.net/download-15286132/109782314_EnetScanner_PROJ_V15_1_v1_2.zip.html]109782314_EnetScanner_PROJ_V15_1_v1_2.zip[/URL]
[URL=https://www.file-upload.net/download-15286133/109782314_EnetScanner_PROJ_V16_v1_2.zip.html]109782314_EnetScanner_PROJ_V16_v1_2.zip[/URL]
[URL=https://www.file-upload.net/download-15286135/109782314_EnetScanner_PROJ_V17_v1_2.zip.html]109782314_EnetScanner_PROJ_V17_v1_2.zip[/URL]
[URL=https://www.file-upload.net/download-15286136/109782314_EnetScanner_TIAP_V18_PROJ_V1_0_1.zip.html]109782314_EnetScanner_TIAP_V18_PROJ_V1_0_1.zip[/URL]
[URL=https://www.file-upload.net/download-15286134/109782314_EtherNetIP_Scanner_DOC_v1_2_en.pdf.html]109782314_EtherNetIP_Scanner_DOC_v1_2_en.pdf[/URL]

Further information
https://support.industry.siemens.com/cs/document/109782315/ethernet-ip-adapter-connecting-third-party-control-systems-to-simatic-s7-controllers-via-ethernet-ip
https://support.industry.siemens.com/cs/document/109782316/cip-server-%e2%80%93-providing-process-values-via-cip-with-simatic
https://support.industry.siemens.com/cs/document/109782317/cip-client-%e2%80%93-exchanging-process-data-with-third-party-control-systems
