 Posted: 01/04/2022 14:23 Post subject: ET200S Profinet GSD file |
 |
|
PLC in the project that I am currently working on has following GSD file but I cant find it anywhere online. My PLC is ET200S and its CPU is IM151-8 PN/DP. Please note that I don't have access to original project files and currently working on a upload of the program. Can anyone point me in the direction where I can download this.
Thank you
The GSD file "GSDML-V2.1-NDC-710-20101220.xml"
is missing.
IO system: "PROFINET-IO-System"
IO device: "mm710e01"
 |
|
| Back to top |
|
 |
dacgs
Junior
Joined: 29 Mar 2022
Posts: 2
|
| Posted: 01/04/2022 15:37 Post subject: |
|
|
| what exactly 6ES7 151-XXXXX-XXXX in the project? |
|
| Back to top |
|
|
psycho1o1
Junior 2
Joined: 28 Jan 2022
Posts: 32
|
| Posted: 01/04/2022 15:57 Post subject: |
|
|
I don't understand!What do you mean by " 6ES7 151-XXXXX-XXXX in the project?". I'am new to siemans so please bear with me.

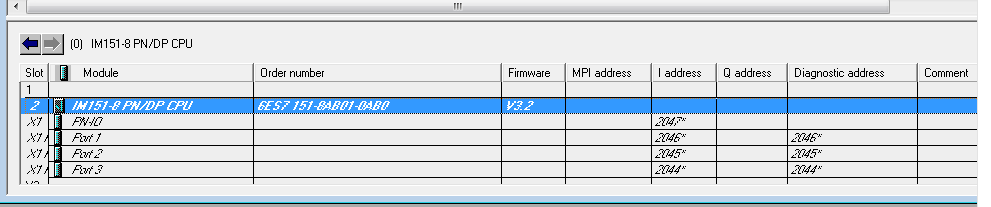

These are my project hardware. |
|
| Back to top |
|
|
dacgs
Junior
Joined: 29 Mar 2022
Posts: 2
|

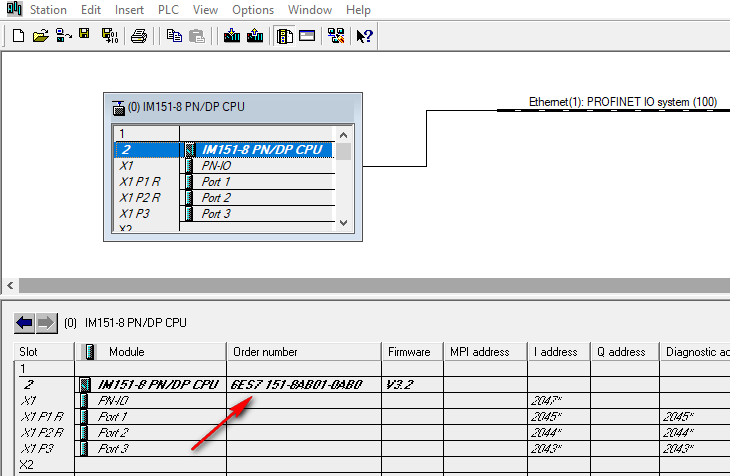

| Posted: 01/04/2022 17:08 Post subject: |
|
|
 |
|
| Back to top |
|
|
psycho1o1
Junior 2
Joined: 28 Jan 2022
Posts: 32
|
| Posted: 02/04/2022 05:25 Post subject: |
|
|
Thank you for replying. my order ID is 6ES7151-8AB01-0AB0. If you can suggest how can I download older GSDs It will really be helpful for me in the future.
Thank you
 |
|
| Back to top |
|
|
Broody
Junior
Joined: 01 Mar 2022
Posts: 2
|
| Posted: 03/04/2022 13:17 Post subject: |
|
|
You need to update the firmware because there are wrong functionalities with this firmware.
So update the firmware and then you can work correctly with the project.
Product Information for ET200S IM151-8 PN/DP CPU
After six months of parallel delivery of V2 and innovated V3 ET200S IM151-8(F) PN/DP CPUs, manufacture of the V2 CPUs will be discontinued and only V3 CPUs delivered in the future
https://support.industry.siemens.com/cs/document/49049623/product-information-for-et200s-im151-8-pn-dp-cpu?dti=0&lc=en-WW
Firmware updates for IM151-8 PN/DP CPU (6ES7151-8AB01-0AB0)
https://support.industry.siemens.com/cs/document/47353723/firmware-updates-for-im151-8-pn-dp-cpu- (6es7151-8ab01-0ab0)?dti=0&lc=en-WW
Firmware Version V3.2.7 / V3.3.7 for S7-300 and ET200 CPUs with new functions
https://support.industry.siemens.com/cs/document/61757603/firmware-version-v3-2-7-v3-3-7-for-s7-300-and-et200-cpus-with-new-functions?dti=0&lc=en-WW |
|
| Back to top |
|
|
psycho1o1
Junior 2
Joined: 28 Jan 2022
Posts: 32
|

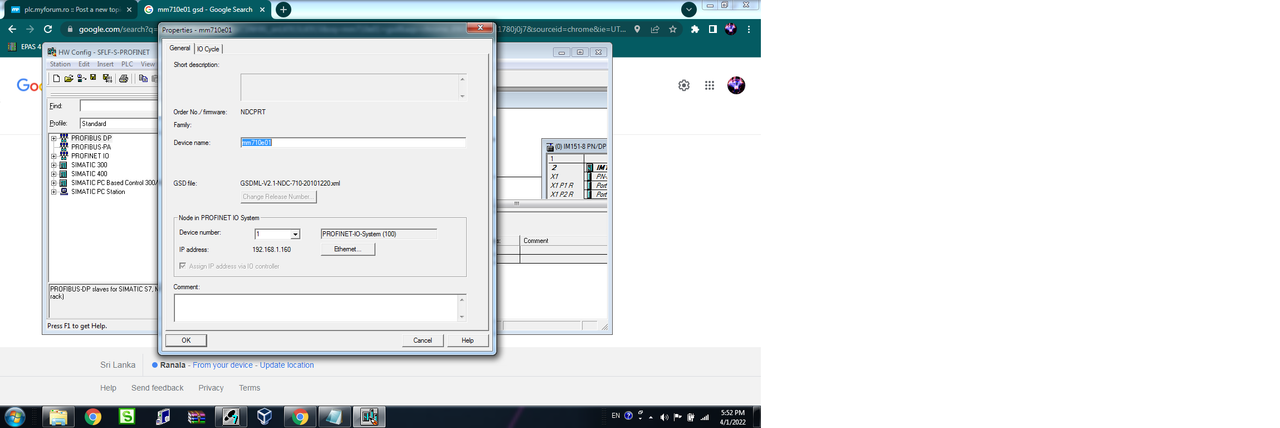

| Posted: 20/04/2022 12:52 Post subject: Found It. Finally. :-D |
|
|
| https://drive.google.com/file/d/1eRqgENXeW72RhRyg4wVIjD2R0FcntbQQ/view?usp=sharing |
|
