maersk
Member 3
Joined: 17 Aug 2014
Posts: 891
|
 Posted: 29/01/2019 20:15 Post subject: ET 200SP Timestamp function AI Energy Meter 480V AC HF |
 |
|
ET 200SP Timestamp function in conjunction with the AI Energy Meter 480V AC HF
https://support.industry.siemens.com/cs/document/109754890/et-200sp-timestamp-function-in-conjunction-with-the-ai-energy-meter-480v-ac-hf

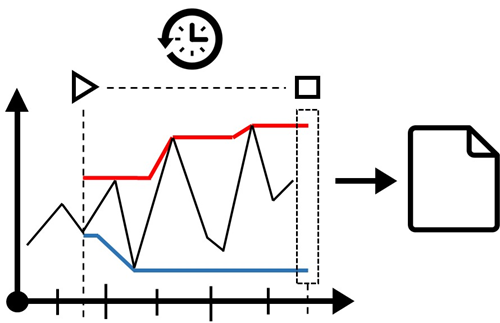

One of the new functions of the Energy Meter 480VAC HF is the extension of the minimum and maximum values by a time stamp. The steps required for this, such as transmitting the time, converting the time stamps and archiving and providing the data via the web server of the CPU, are shown.
When it comes to energy data acquisition, it is often of interest at which points in time minimum and maximum values are recorded.
The High Feature variants of the Energy Meter 480VAC analog input module offer additional features compared to the standard variant. One of the new functions of the Energy Meter 480VAC HF is the extension of the minimum and maximum values by a time stamp. To be able to use this function, the time of the ET 200SP head module must be synchronized with the CPU. In this application example, the steps required for this, such as transmitting the time, converting the time stamps, as well as archiving and providing the data via the web server of the CPU, are presented.
Documentation and example project TIA 15
https://support.industry.siemens.com/cs/attachments/109754890/109754890_HF-EnergyMeters_MinMax_en.pdf
https://support.industry.siemens.com/cs/attachments/109754890/109754890_HF-EnergyMeters_MinMax_PROJ.zip
https://support.industry.siemens.com/cs/attachments/109754890/109754890_HF-EnergyMeters_MinMax_LIB.zip |
|
