Commissioning support for ET 200SP CM 1xDALI-Modules
https://support.industry.siemens.com/cs/document/109771151/
The following example presents two different ways of commissioning a DALI system. The application example serves as a basis and contains the basic functionalities.
A graphical user interface helps enable straightforward commissioning of a DALI system. An HMI or the user-defined website are used to make basic settings to the DALI devices, thus enabling an initial commissioning without TIA Portal.

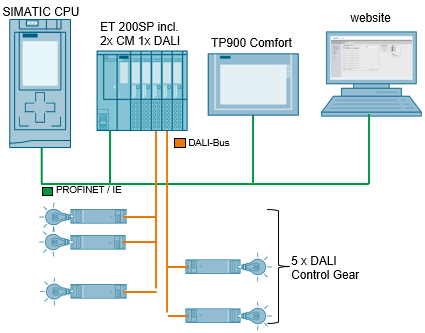

Two DALI modules and a exhaustiv of five DALI members were used for this application example. The structure of the system is shown below.

ET 200SP CM 1xDALI-Modules ET 200SP CM 1xDALI-Modules

ET 200SP CM 1xDALI-Modules ET 200SP CM 1xDALI-Modules

The application example contains the following basic functionalities:
On/off switching of DALI ballast units (e.g. lamps)
On/off switching of groups
Scan DALI bus for group members and assign free short addresses
Display assigned short addresses
Change assigned short addresses
Identification of group members
Setting and readout of group assignments of ballast units
Setting and readout of basic parameters of ballast units
Principle of operation

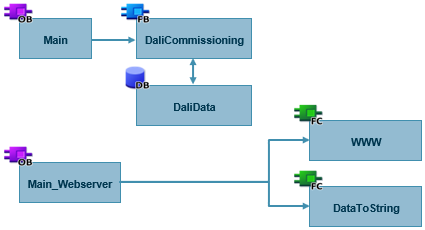

The function block (FB) "DaliCommissioning" contains all function calls relevant to the application example. The FB reads out the data from the DALI devices and saves the information in the "DaliData" data block (DB). The data in the DB "DaliData" are displayed at the HMI or via the user-defined webpages of the controller. There you can modify the data and then write them back to the DALI devices with the FB "DaliCommissioning". You can also execute individual functions using the HMI or user-defined webpages.
ET 200SP CM 1xDALI-Modules ET 200SP CM 1xDALI-Modules
